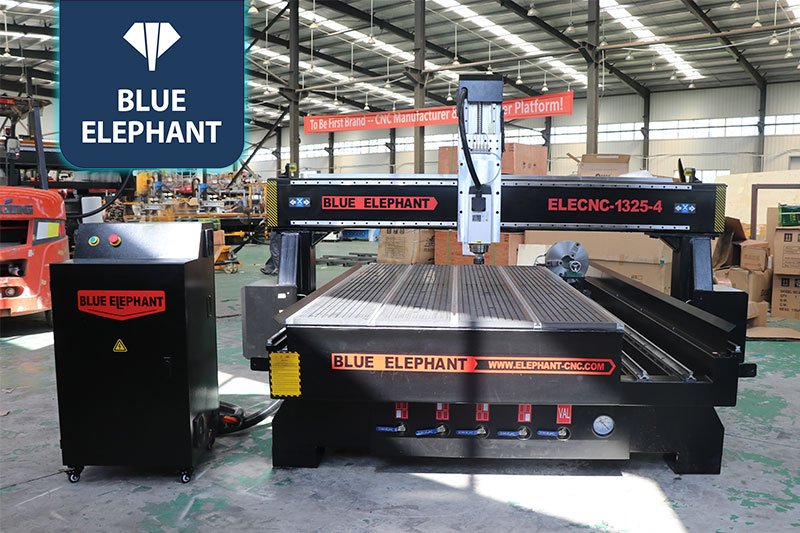

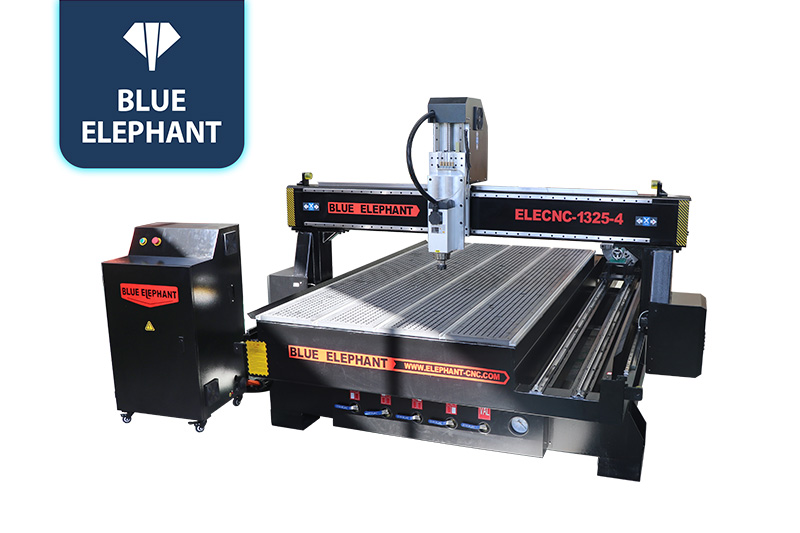

4×8 1325 CNC Rotuer With 4th Axis Rotary is on Sale
☆This 4×8 CNC router is equipped with a rotary unit on the table for machining cylindrical parts. High-quality components make the machine run more stably.
Rotary Axis CNC Router Machines Video
Features

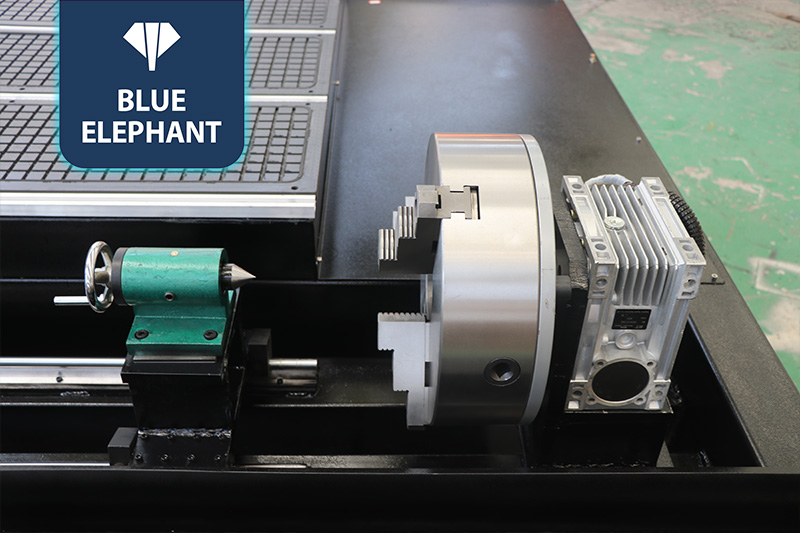

- It adds a rotary device to the ordinary 3-axis 1325 CNC router to realize the processing of more types of materials.
- The vacuum table has strong adsorption force to avoid sliding or moving of the plate.
- 6kw air-cooled spindle provides powerful cutting and engraving force, faster speed and higher precision.
Parameters
| Serial Number | S20190928S |
| Model | ELECNC-4A |
| Working area | 1300*2500*300 mm |
| Spindle | 6KW HQD air cooling spindle |
| Inverter | 7.5kw Fuling inverter |
| Control system | Mach3 for 4 axis control system, with the wireless |
| Motor and driver | FL118 stepper motor with 860H stepper driver |
| Working Table | T-slot &vacuum working table |
| Vacuum pump | 5KW double stages vacuum pump |
| X,Y,Z Rail | PMI #20 linear square guide way for X,Y,Z axis |
| Dust collector | 1.5KW newest dust collector |
| Software Compatibility | Artcam Software |
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
