2040 ATC CNC Router with Loading and Unloading Platform is Welcomed by American Furniture Factory

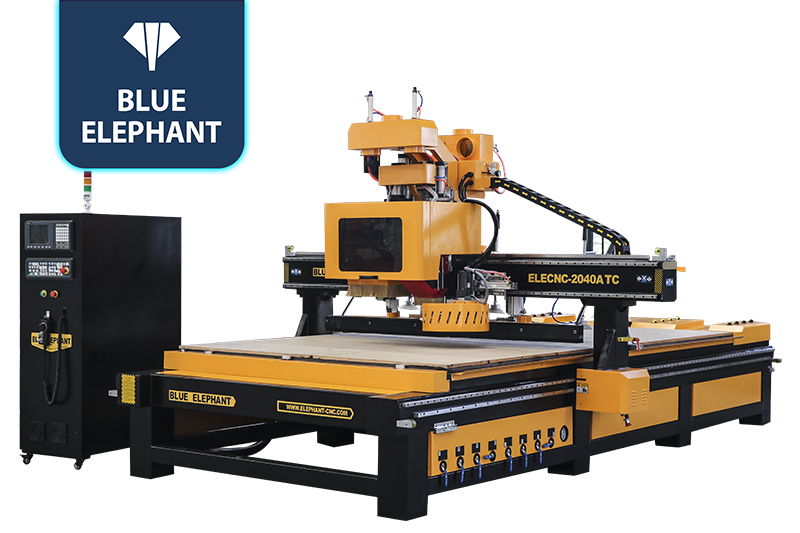

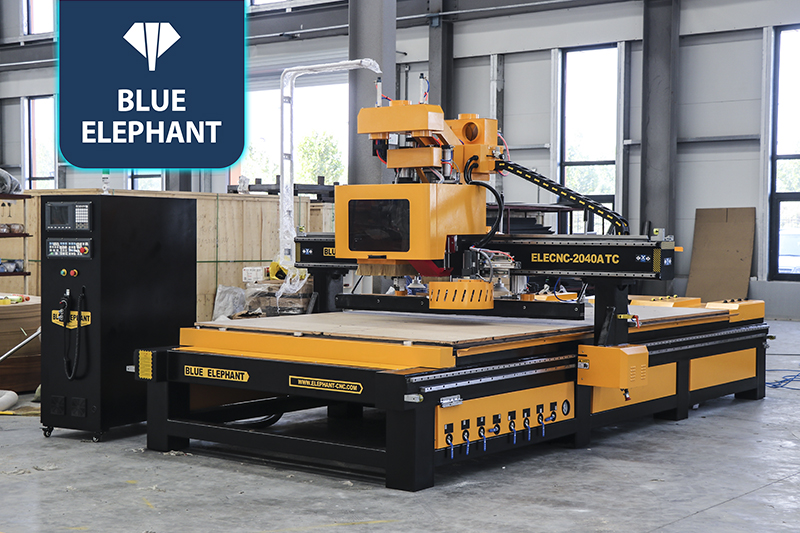

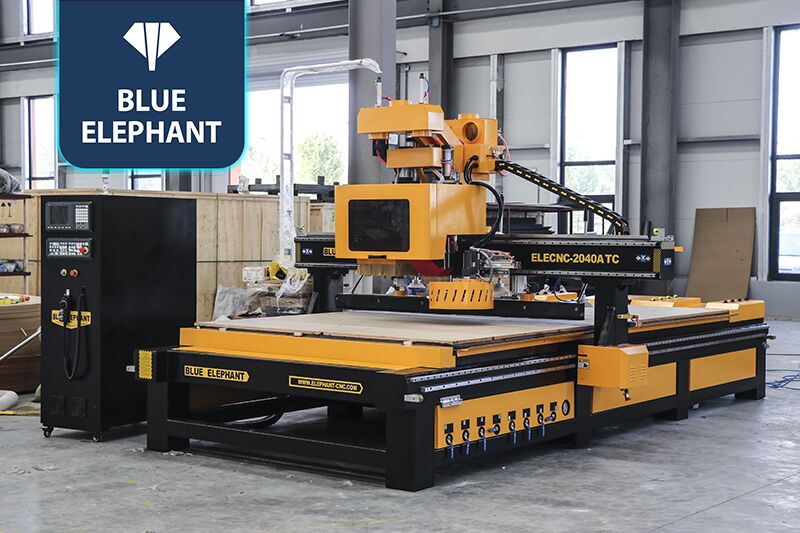

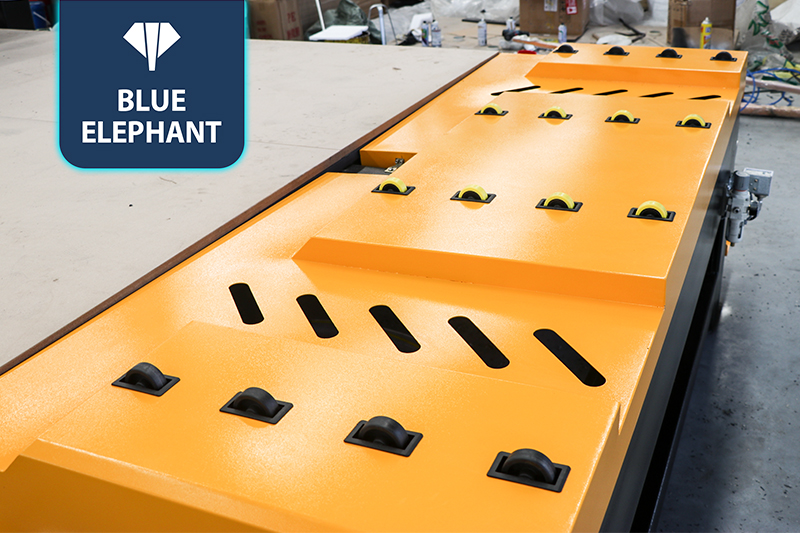

☆ATC CNC router for making custom panel furniture. This machine is equipped with an automatic loading and unloading platform, which is very popular in the panel furniture industry in various countries.
ATC CNC Router Machines Video
Features
- The super-large working size of 2000x4000mm can process most of the large-format wood panels required for the production of various panel furniture.
- The Carousel Tool Changer can change 8 knives and work faster and more efficiently.
- This CNC milling machine can do both vertical and horizontal drilling as the machine is equipped with a set of horizontal and vertical drills.
Parameters

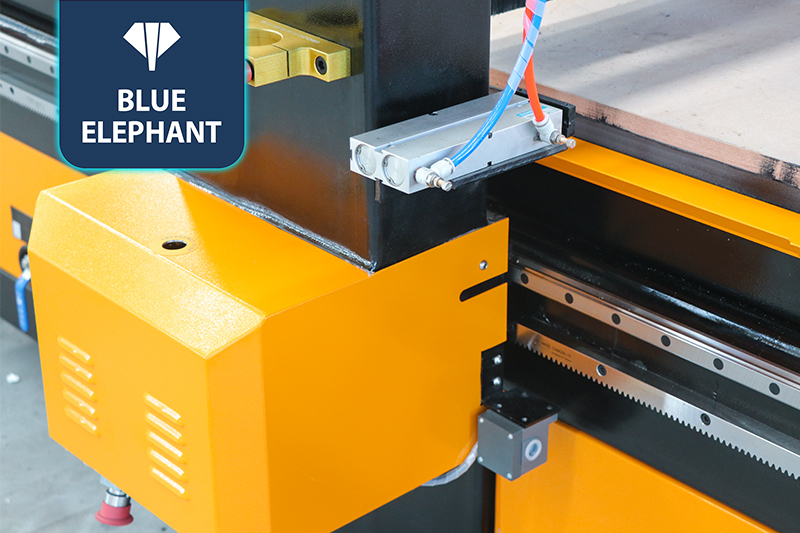

| Model | ELECNC2040ATC |
| X,Y axis travel | 2000x4000mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm,etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Optional: Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Carousel Linear type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 5 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam,Type 3,Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |

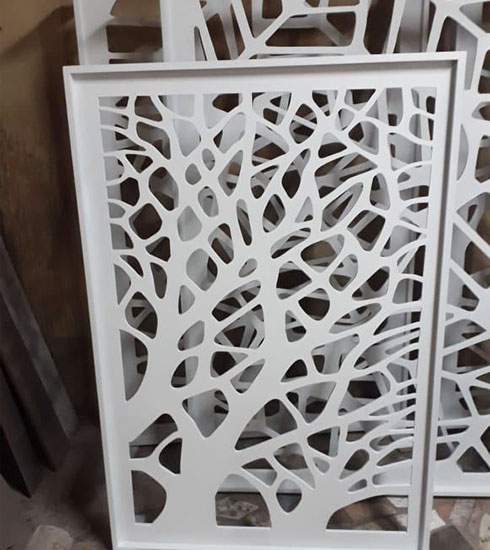

Application
ATC CNC routers excel at wood drilling and cutting. The supplied drill comes with 9 vertical and 3 horizontal drill bits and 1 saw blade. Improve machining efficiency and save more time. ATC is essential for woodworking automation, automatic tool change greatly reduces non-productive time and saves manpower.
