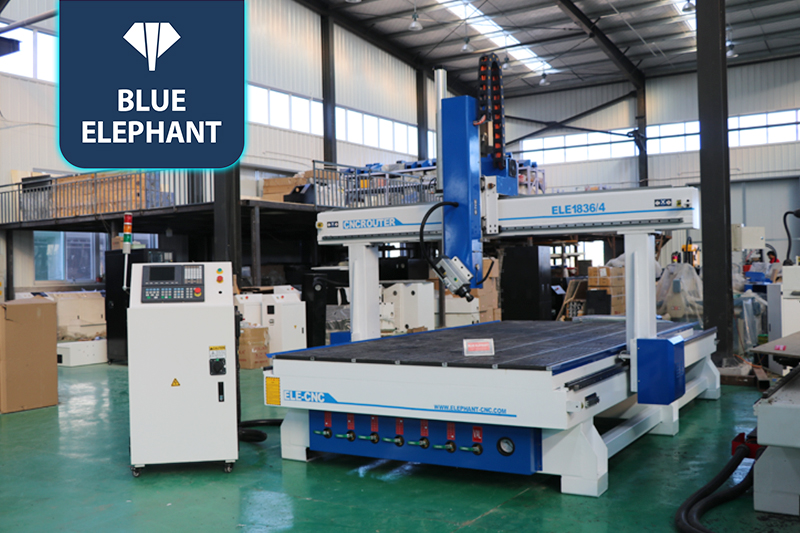

Custom 3D CNC Router Wood C N C Machine Price For Sale In Iran, Romania
☆This CNC router machine features large working dimensions and large Z-axis travel. It is a custom machine. Widely used in processing three-dimensional foam and wooden molds and statues.
4 Axis CNC Router Machines Video
Features
- Customized table size and large Z-axis travel can meet the processing needs of many customers.
- This CNC router is capable of machining large and tall wooden statues.
- The vacuum table has suction capabilities to prevent the panels from sliding or moving during operation.
Parameters
| Descriptions | Parameters |
| Model | ELE1836 |
| Working area | 1800*3660*600mm |
| Control system | SYNTEC 6MB control system |
| Working Voltage | 380V,50HZ,3Phases |
| Spindle | Italy 6kw HSD air cooling spindle rotating +-90 degree |
| Spindle speed | 0-18000rpm |
| Inverter | 7.5KW Taiwan Delta inverter |
| Motor and Driver | Japan YASKAWA 750w servo motor and driver |
| Table surface | T-slot and vacuum working table |
| Structure | Industrial class square tube strong structure |
| Lubrication system | Automatic lubrication system |
| Transmission | ABBA linear guide for X,Y,Z axis
Helical rack on X, Y axis and Taiwan Ball Screw on Z axis |
| Vacuum pump | 7.5kw air type vacuum pump |
| Limited switch | Japan Omron |
| Software | UG |
Application

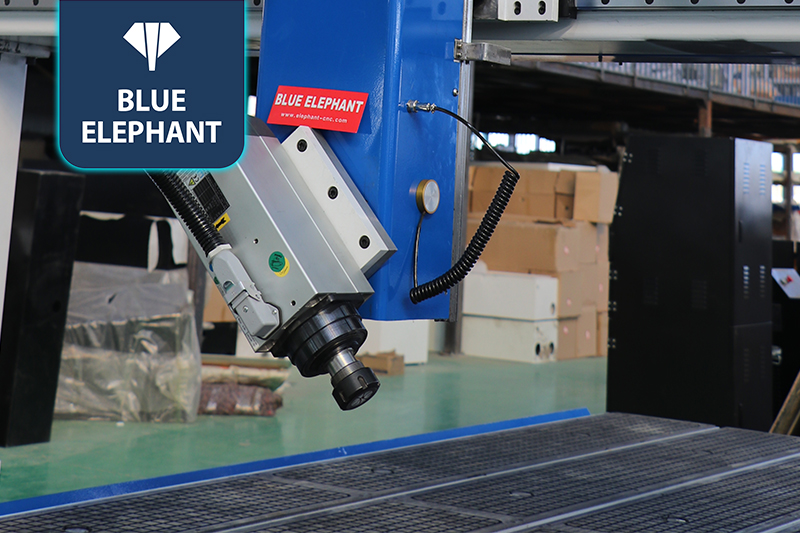

4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.
Production Facility
Quality Control & Testing
