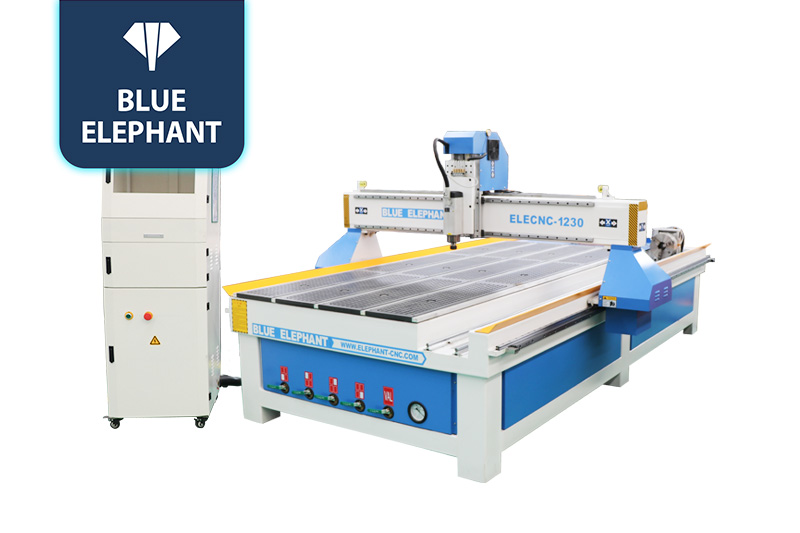

4th Axis CNC Router Rotary Axis CNC for Sale at Good Price
☆This is an entry level rotary axis CNC machine. High-precision 2D and 3D products can be produced. It requires manual tool change, which saves a lot of cost compared to automatic tool change. The control system using Mach3 makes it easy for workers to learn and operate CNC machines.
Rotary Axis CNC Router Machines Video
Features
- The custom working size of 1200x3000mm can perfectly meet the specific needs of most customers.
- Mount the rotary axis for engraving cylindrical parts.
Parameters
| Description | Parameter |
| Model | ELECNC-1230-4 |
| X,Y,Z Working Area | 1200*3000*200 mm |
| Control System | Mach3 4 axis control system |
| Working Voltage | 380V, 3phase, 50Hz (Option) |

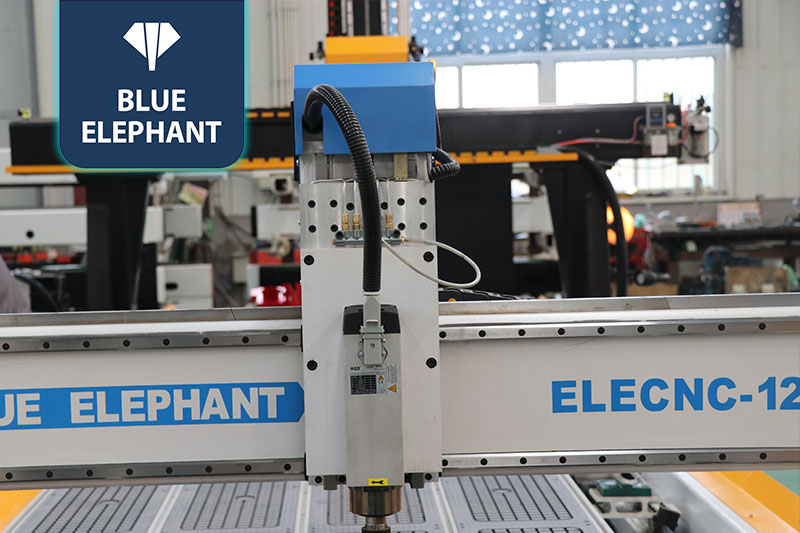

| Spindle | 3.5KW HQD air cooling spindle |
| Motor & Driver | 450B, 860H |
| Inverter | 3.7KW Fuling Inverter |
| Table Surface | T-slot & vacuum working Table |
| X, Y, Z Transmission | Helical rack on X, Y axis and Taiwan TBI ball screw on Z axis |
| X,Y, Z Rail | Taiwan ABBA #20 linear guide |

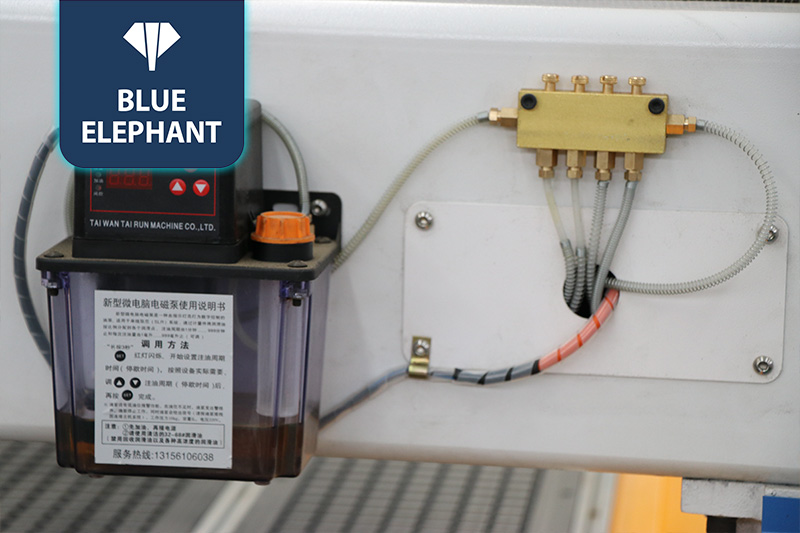

| Lubrication System | Automatic lubrication system |
| Vacuum Pump | 5.5kW water circulation vacuum pump (380V, 3Phase, 50Hz) |
| Rotary device diameter | 200mm |
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
