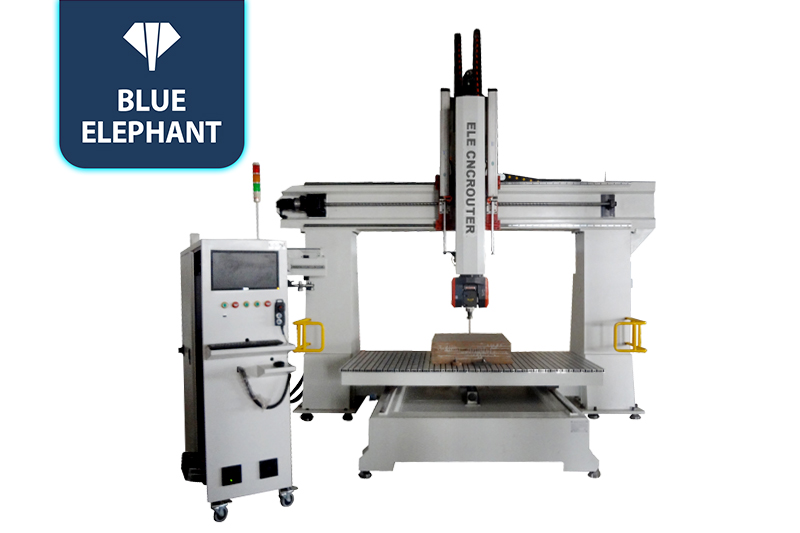

Best 1224 Foam 5 Axis CNC Machine Price
☆It is one of the most typical 5-axis CNC routers. Diversified functions will greatly improve the quality and processing efficiency of processed products. And it also supports 5-8 axis linkage.
CNC Router Machines Video
FEATURES

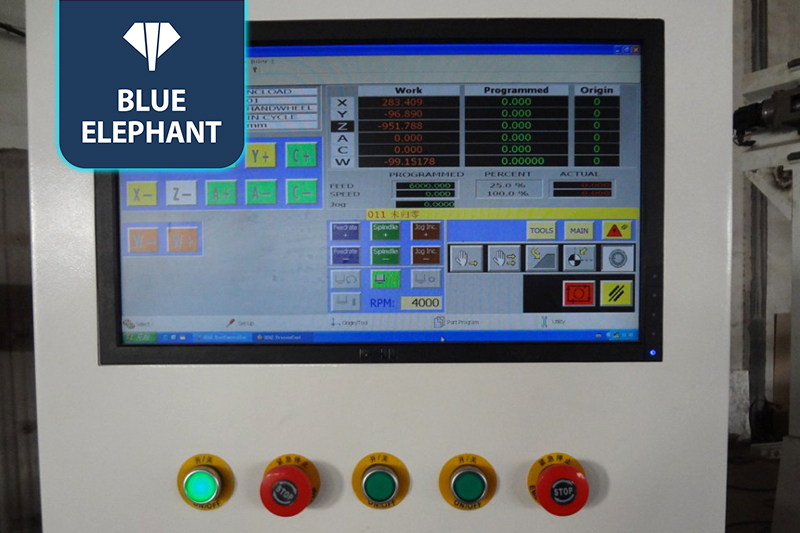

- It adopts a European OSAI control system with powerful functions and simple operations.
- The Z-axis travel can be increased to 1.5 meters, which is suitable for large workpieces.
Parameters
| Model | ELECNC1224 5 axis |
| X,Y axis travel | 1200x2400mm, option: 1300*2500mm; 1500*3000mm; 2100*3000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 10kw 5 axis Demas ATC spindle, HSK F63, ER32 |
| Inverter type | 15KW Delta inverter series B |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | HSK F63,ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Syntec 610-E5 5 axis control system |
| Driving system | 1.3kw Japan Yaskawa servo motors and drivers Option: 1.5kw Leadshine servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot work table with PVC protection |
| Positioning cylinder | 5 pieces(X2,Y3) |
| Linear guide | Taiwan linear guide, 35# on Y axis, 30# on X ans Z axis |
| Transmission | Taiwan TBI ball screw 3510 |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | UG, Powermill, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
A 5-axis CNC router has an oscillating spindle. The direction can be changed automatically without stopping the machine during processing. Five-axis CNC routing and milling machines are widely used in furniture, advertising, molds, decoration, construction, and other fields and industries. In terms of functionality, it can cut, engrave, drill, mill and groove. In terms of materials, the 5-axis router can process a variety of woods, plastics, stones, soft metals, and composites.
