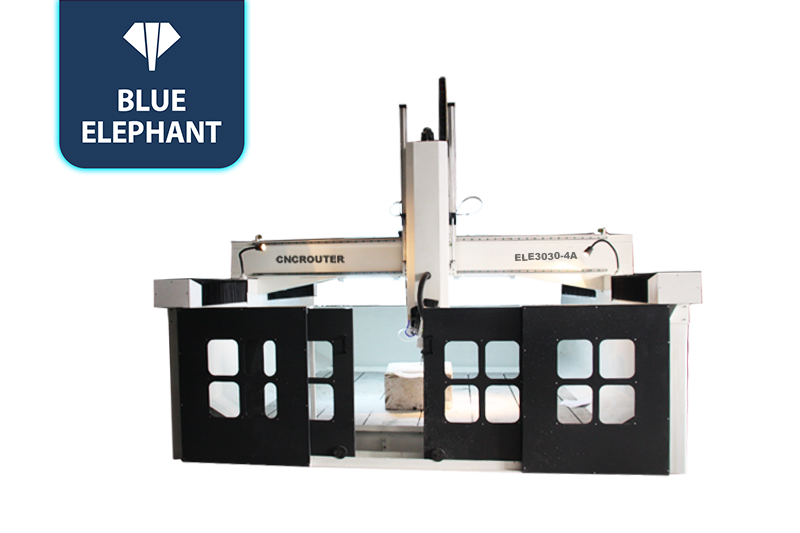

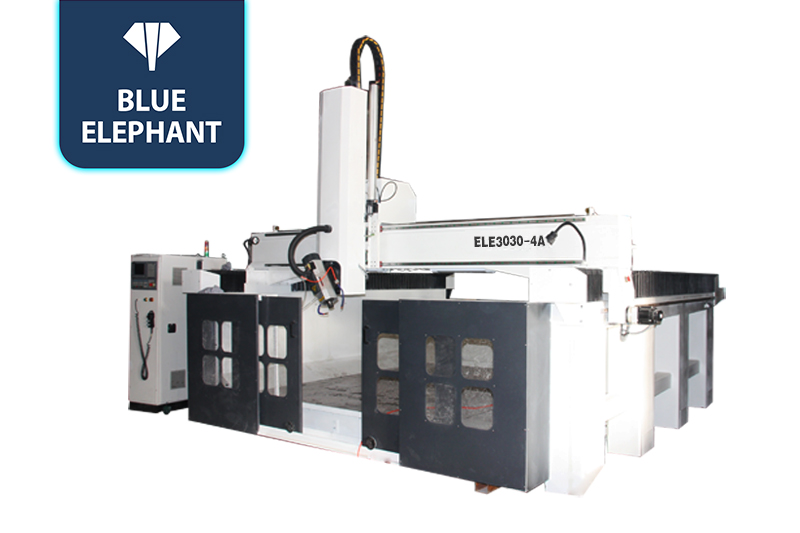

5 axis Styrofoam EPS CNC cutting machine sold in France, UK, USA
☆This is an economical foam cnc router machine designed with a high z axis. Widely used in wooden mold making.
CNC Router Machines Video
features
- The welded structure of cast iron ensures high stability during processing and prolongs the service life of the machine.
- Adopt 9kw HSD ATC spindle, the speed is as high as 24000rpm/min, which improves the processing efficiency.
- Machine parts can all be customized.
Parameters
| X,Y,Z Working Area | 3000x30000x1000mm*180° |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| Table Surface | Milling steel table (T-slot) |
| Frame | Welded structure (cast iron) |
| X, Y Structure | Oblique Rack and Pinion Drive from Taiwan, Hiwin Rail Linear Bearings:
X axis, Y axis, 30mm |
| Z Structure | Ball Screw, Hiwin Rail Linear Bearings :
Z axis, 25mm |
| Max. Power Consumption | (Without spindle) 6.5Kw |
| Max. Rapid Travel Rate | 40000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 9KW Italy HSD ATC air cooling spindle |
| Spindle Speed | 24000RPM |
| Drive Motors | Yaskawa servo system : 1.3kw
Z axis is with band brake |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| Command Language | G code |
| Operating System | Syntec control System (Osai for option) |
| Computer Interface | Ethernet |
| Flash Memory | 256 M(with CF card) |
| tool holder | ISO 30 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3, Ucancam, Art cam, UG, Powermill |
| Running Environment Temperature | 0degree – 45 degree |
| Relative Humidity | 30% – 75% |
| Packing Size | 2300X4800X1900mm (in parts) |
| N.W. | 7300KG |
| G.W. | 8000KG |
| Guarantee | One year from the date of commission |
| Optional Parts | Air cooling spindle or Water cooling spindle |
| Dust collector | |
| Rotary system | |
| Mist-cooling system | |
| Panasonic Servo motors/Delta servo motors |
Application
Mold industry: It can be used in the precision production of various cast wood molds, and can also be used in the research and development and production of automotive interior and exhibition decoration materials.

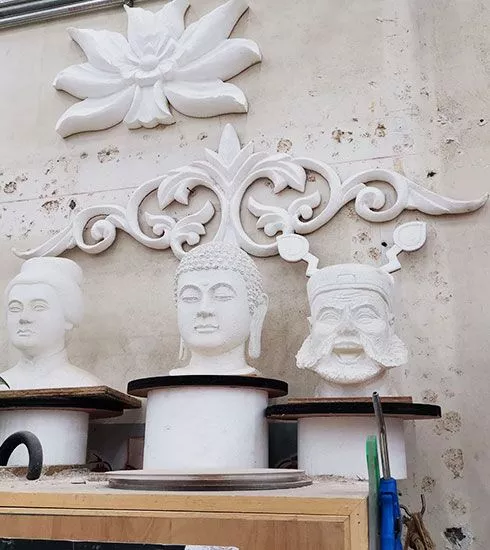

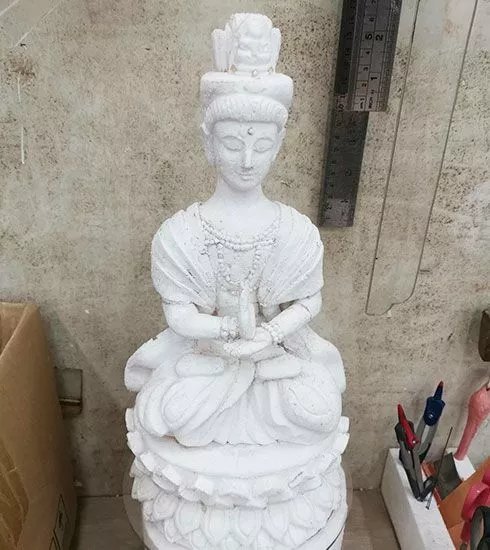

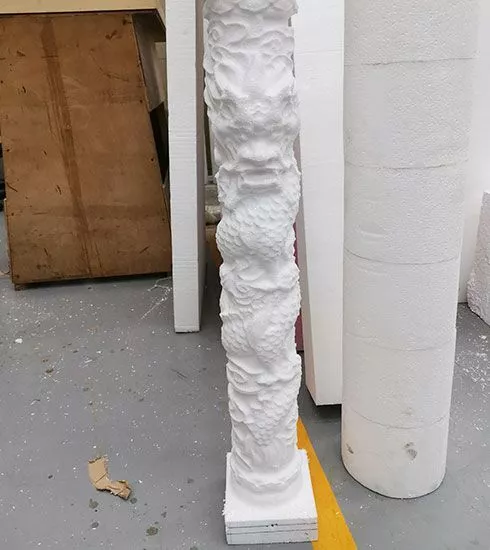

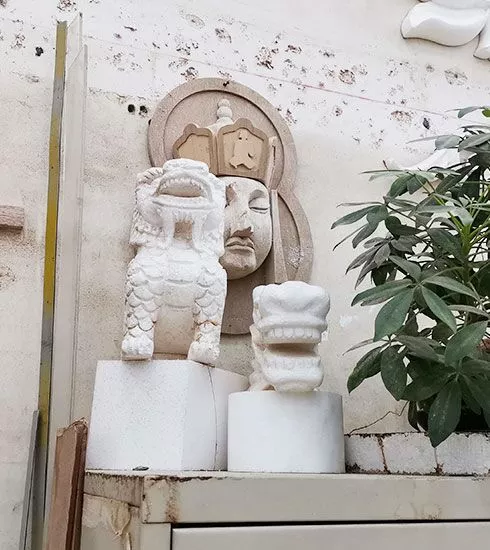

Casting and sculpture industry: processing and engraving of various casting craft products, exhibition decoration materials, and GRG decoration materials. Building decoration industry: processing and production of building decoration materials such as GRG and GRC.
