New Product 1530 Automatic Siemens Controller Wood Router with Linear Tool Changer Machines for sale at best prices to America，Melbourne

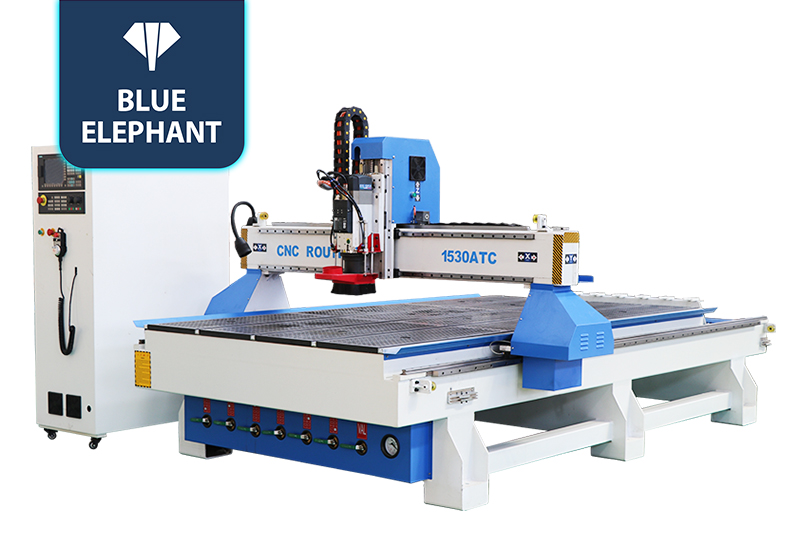

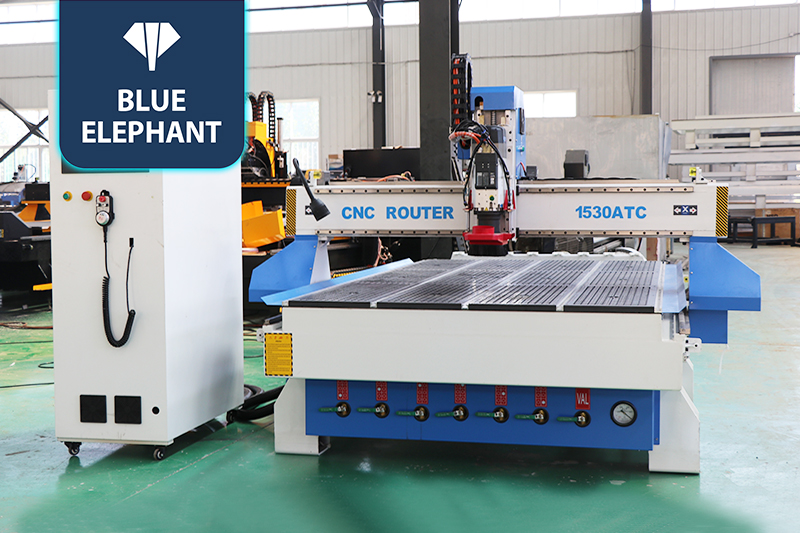

☆The 1530 ATC CNC Router Machine was designed with linear tool changer magazine for making Cabinet. Multiple knives work at the same time, saving tool change time, making workpiece processing more efficient.
ATC CNC Router Machines Video
Features
- Note that all specs can be tailored and designed to suit their own conditions. If you want this machine to meet your various woodworking needs, you can choose a rotary unit to machine cylinders.

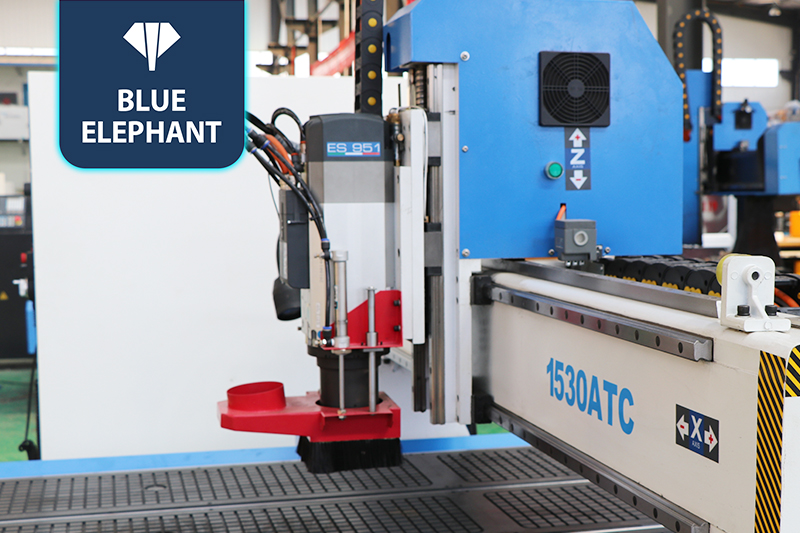

- The 9kW air-cooled ATC spindle has strong cutting force and can engrave wood boards with high speed and high precision.

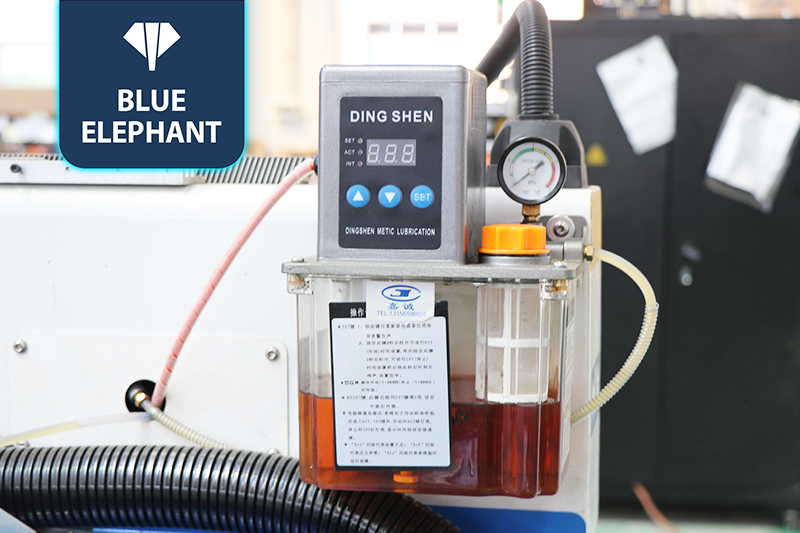

- The entire vacuum table has a strong adsorption capacity, preventing the panel from sliding or moving during operation.The automatic lubrication system keeps the machine running smoothly.
Parameters
| Model | ELECNC1530ATC |
| X,Y axis travel | 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 9kw HSD ES-951 ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw Detla inverter |
| Tool magazine | Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC 60WE |
| Driving system | 1000W Japan YASKAWA AC servo driver and 850W AC servo motor, 4 sets |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan 25# Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | ARTCAM and Aspire |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
