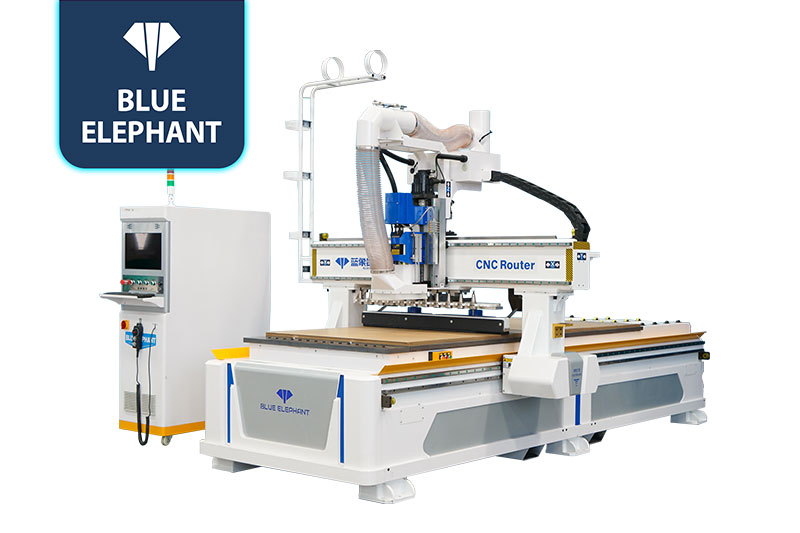

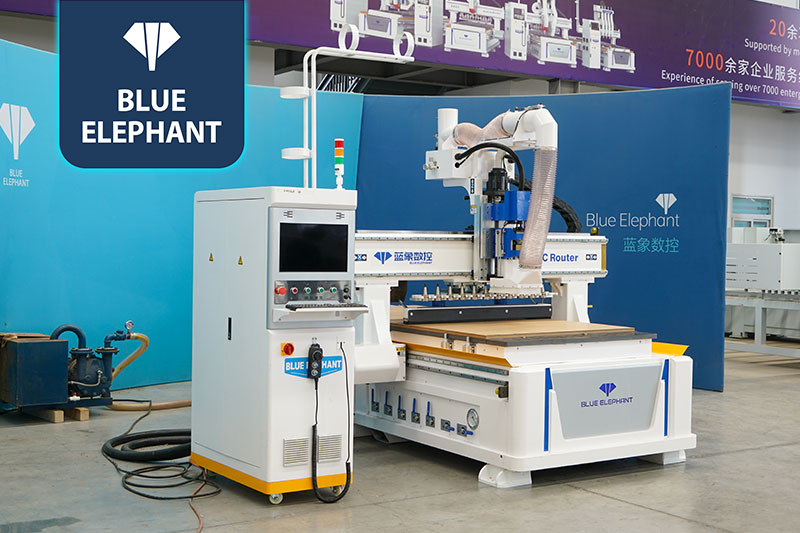

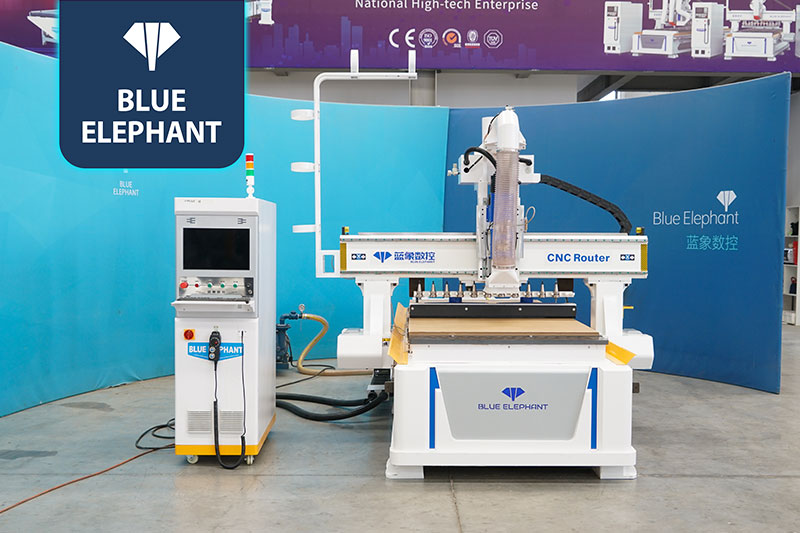

Best Cabinet CNC Machines with Automatic Tool Changer at Affordable Prices
☆It is the most classic and best-selling ATC nesting CNC machine tool for making cabinets and other panel furniture, with high-cost performance. Popular with small and medium-sized wood factories.
Nesting CNC Machines Video
Features
- With an effective working size of 1300x2800mm, it is ideal for processing MDF, melamine and plywood.
- Automatic tool change function greatly improves work efficiency and saves labor.
- Optional automatic loading and unloading platform.
Parameters
| Model | ELECNC-1328ATC |
| X,Y axis travel | 1300x2800mm option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC/LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy-duty body with quenching treatment |
| Worktable | Aluminum T-slot & vacuum work table |

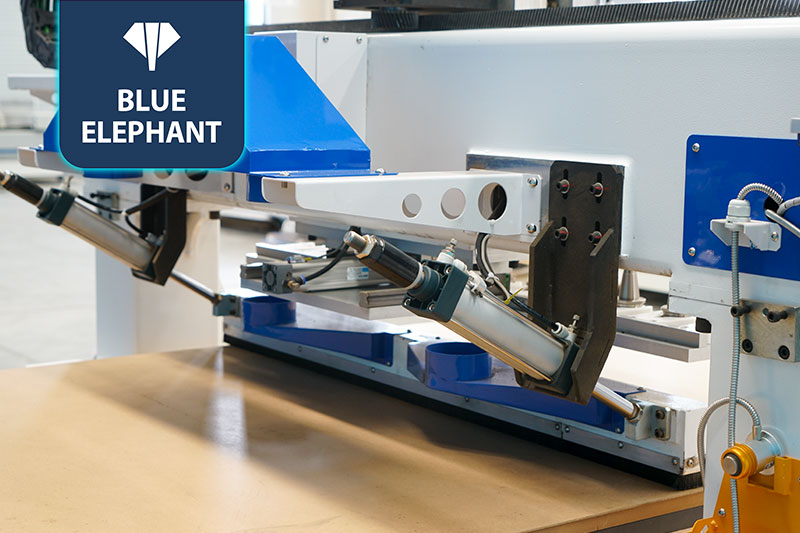

| Positioning cylinder | Option: 5 pieces (X2, Y3) |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Furniture industry: various doors, windows, cabinets, shelves, tables, beds.
Decoration industry: door frames, mirror frames, screens, lighting, engraved photos.
Handicraft industry: handicrafts, gifts, souvenirs, holiday decorations.
Advertising industry: advertising signs, logos, labels, three-dimensional alphanumerics, acrylic nameplates, company names, LED lights.
Other wood products: printed circuit boards, isolation materials, engraving or wiring of home appliance shells, EVA packaging of tools and equipment, medical equipment, engraving or wiring of lining materials for electronics or other containers.
