Buy ATC Rotary Axis CNC Router From China at Cost Price Around the World

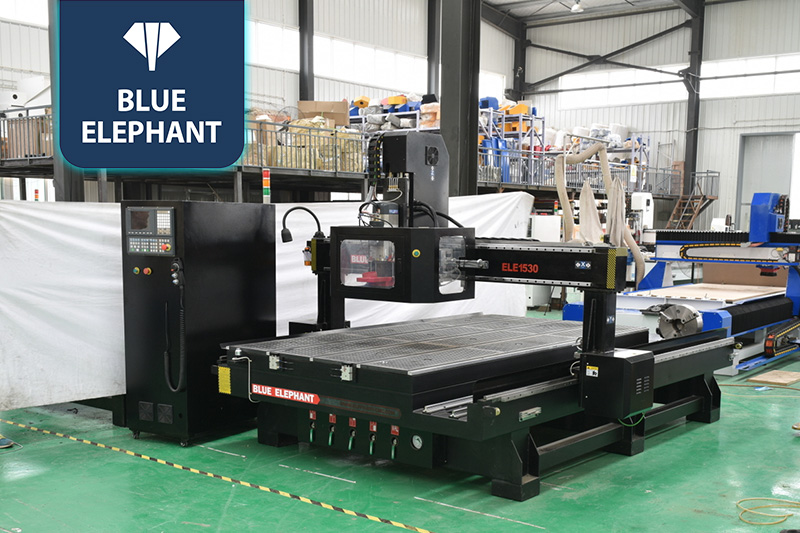

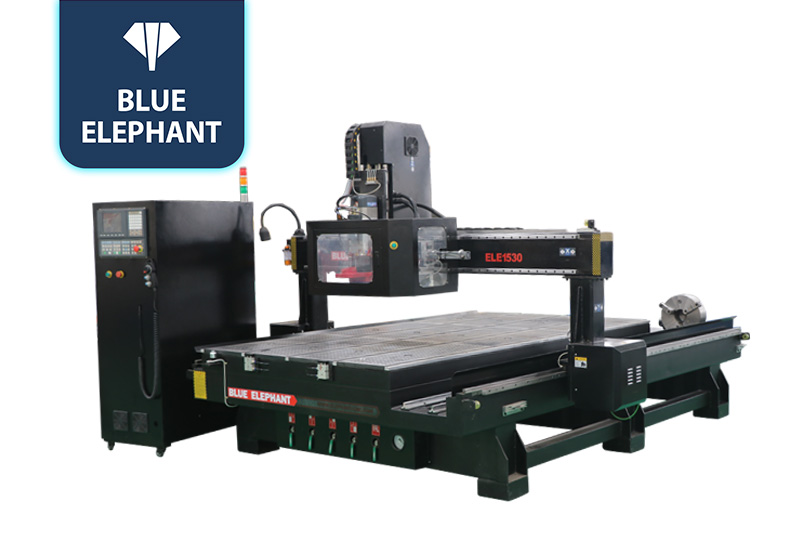

☆This is a very popular 4-axis CNC woodworking router with automatic tool change for small workshops. A heavy-duty frame structure is adopted to prevent vibration and deformation during operation.
Rotary Axis CNC Router Machines Video
Features
- A turntable tool magazine is installed next to the ATC spindle, which reduces tool change time and improves processing efficiency.

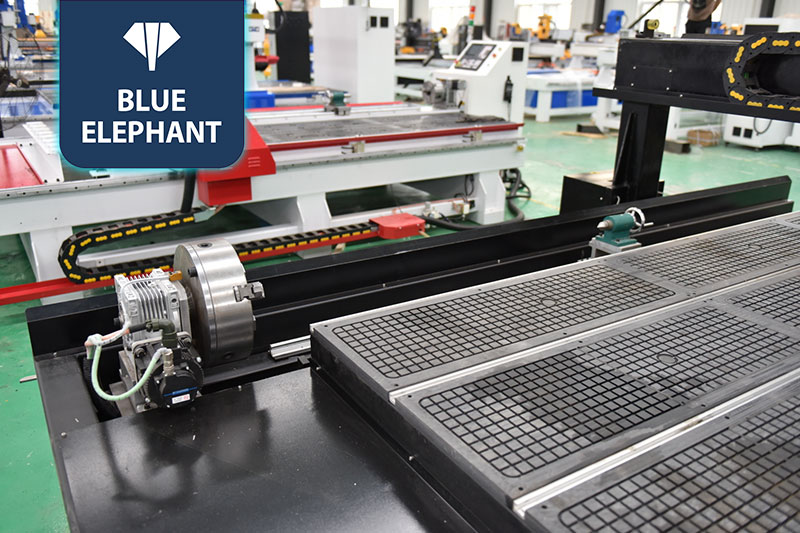

- Because of the machine’s rotary unit, this CNC router is capable of machining cylinders, rods and other materials.
- Specifications can be customized to meet different processing needs of customers.
Parameters
| Description | Parameters |
| Model | ELECNC-1530ATC-4 |
| Working size | 1500*3000*400mm |
| Color | Black (customizable) |
| Working Voltage | 220V, 3Phase, 60Hz |

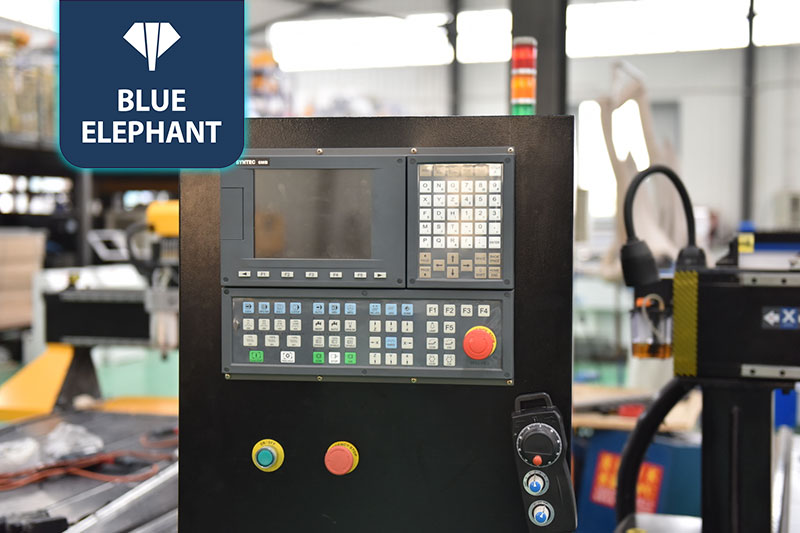

| Control system | Taiwan SYNTEC control system with handle |
| Spindle | 9kw Italy HSD ATC air cooling spindle |
| Tool holder | ISO30 |
| Inverter | 11kw Delta Inverter |
| Motor &Driver | 850W Japan YASKAWA motors and 1kw drivers |
| Traveling speed | 45m/min |
| Working speed | 25m/min |
| Auto tool changer magazine | Carousel |
| Tool slots | 8 |
| Table surface | T-slot and vacuum working table |
| Lubrication system | Automatic lubrication system |
| Gantry structure | Gantry moving |
| Structure | New type thicker and bigger heavy duty welded frame and gantry |
| Transmission | X,Y rack and pinion drive, Z Taiwan TBI ball screw |
| Rail | ABBA Linear square guide #25 |
| Vacuum pump | 5.5kw water circulation vacuum pump (220V, 3Phase, 60Hz) |
| Dust collector | 1.5kw new type double packet dust collector(220V, 3Phase, 60Hz) |
| Rotary device diameter | 300mm |
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
