Buy Automatic Tool Changer 4 Axis CNC Milling Machine at Affordable Price, Exported to European and American Countries
☆This ATC woodworking machine has a large working size and is suitable for processing large size boards. Its spindle can rotate 180 degrees, good at multi-angle carving and engraving wood and foam molds and statues.
4 Axis CNC Router Machines Video
Features
- The super large working size can meet the large-format wood panels required in the production of various panel furniture.
- Robust and durable aluminum T-slot table for machining hard and soft metal materials.
- ATC CNC machine tools can automatically switch tools to improve precision and efficiency.
Parameters
| Description | Parameter |
| Model | ELECNC-2025ATC-4A |
| X,Y,Z Working Area | 2000*2500*500mm |
| Control system | Taiwan SYNTEC control system |
| Working Voltage | 380V 3phase, 50Hz(Option) |
| Spindle | 9kW HQD Air ATC Cooling Spindle |
| INVERTER | 11kw FULING INVERTER |
| Motor and driver | 850W YASKAWA servo motor and 1kW YASKAWA driver, SHIMPO reducer |
| Gantry Structure | Gantry moving |
| Table Surface | T-slot+PVC working Table |
| Table structure | New type thicker and bigger heavy duty welded frame and gantry |
| X, Y, Z Transmission | Helical rack on X,Y axis and Taiwan TBI ball screw on Z axis |
| X,Y, Z Rail | ABBA 25# linear guide |

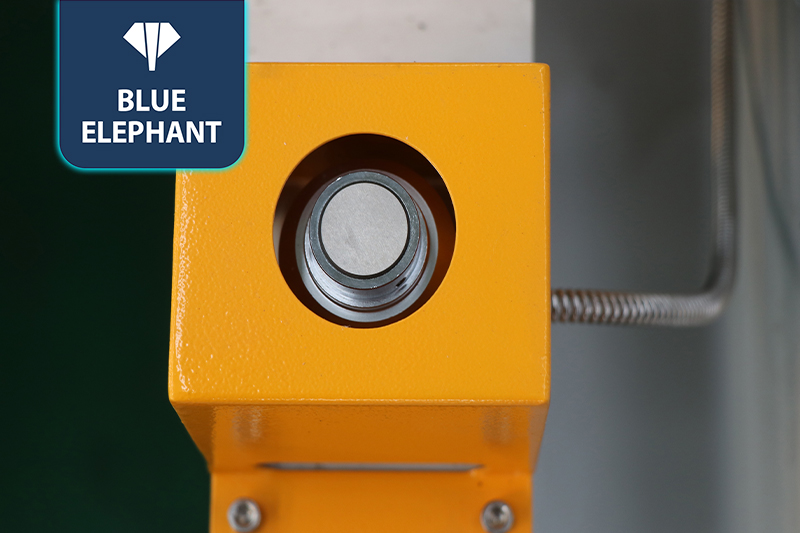

| Tool Sensor | Auto tool sensor calibration |
| Dust collector | 3kW two bags dust collector |
Application
4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.
Production Facility
Quality Control & Testing
