ATC Rotary Axis CNC Woodworking Milling Machine For Sale at Affordable Price

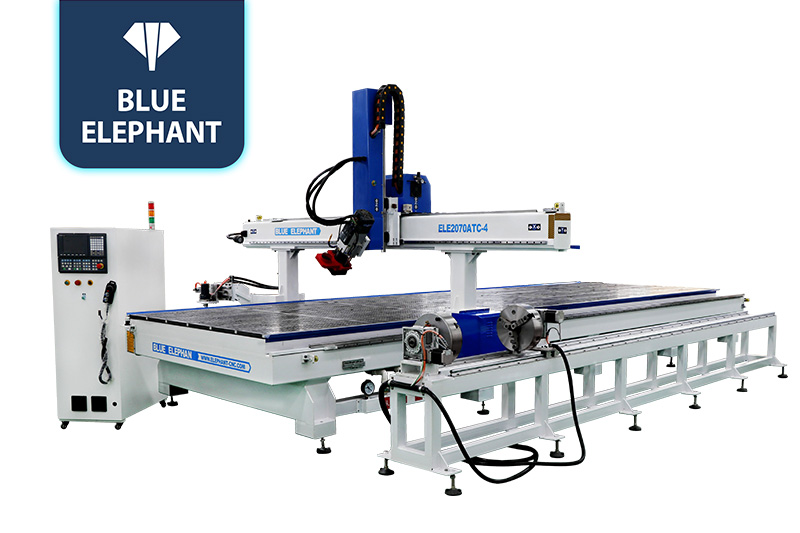

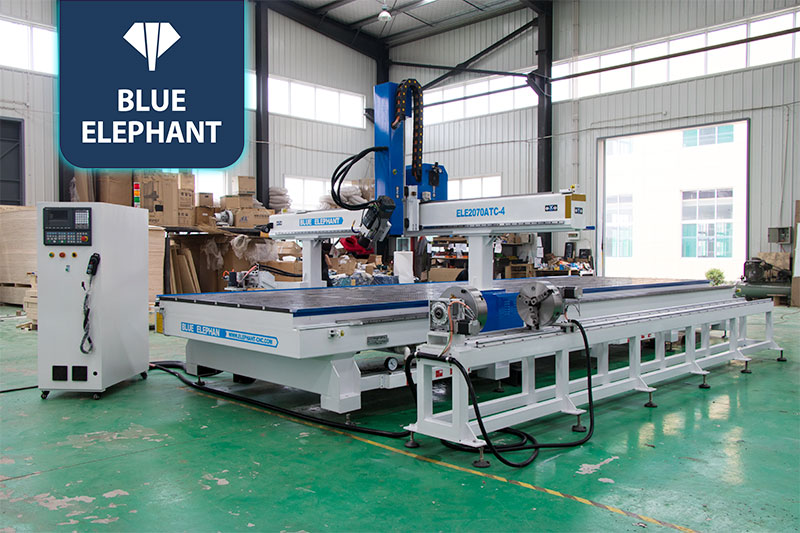

☆This custom built 4-axis CNC mill with automatic tool change and independent rotary unit. Its working size is 2000x7000mm, good at processing large size wood boards.
Rotary Axis CNC Router Machines Video
Features
- This CNC router has a customized large working size, which is suitable for processing large size wood boards.
- The separate rotary device is suitable for machine tools with a large Y-axis stroke and a large diameter of the rotary device.
Parameters
| Model | ELECNC-2070ATC-4 |
| Color | White and Blue (customizable) |
| Effective Working Area | 2000*7000*400 mm |
| Working Voltage | 380V, 3Phase, 50Hz |
| Control system | SYNTEC Control System |

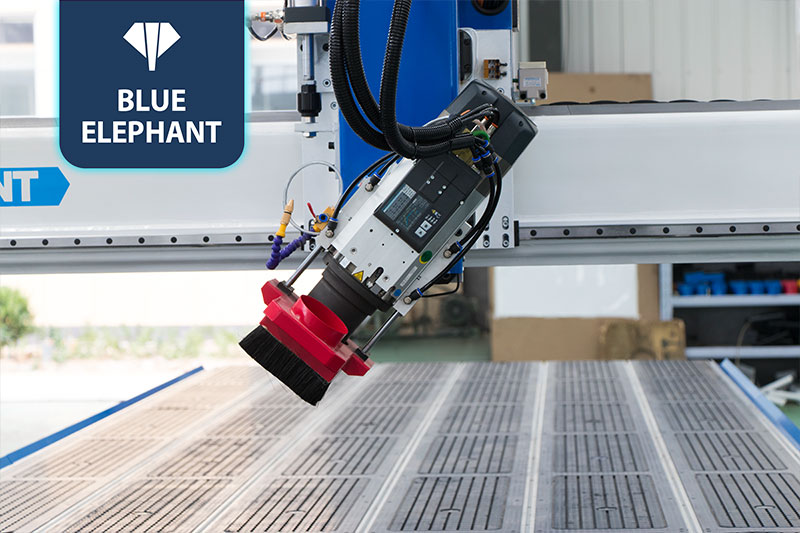

| Spindle | Italy HSD 9KW Air Cooling Spindle |
| Inverter | 11kw Delta Inverter |
| Motor & Driver | Japan YASKAWA Motor and Driver 1Kw |
| Lubrication System | Auto Lubrication System |
| Gantry Structure | Gantry Moving |
| Table Surface | T-slot and Vacuum Working Table |
| Transmission | X,Y Rack and Pinion Drive, Z Taiwan TBI ball Screw |

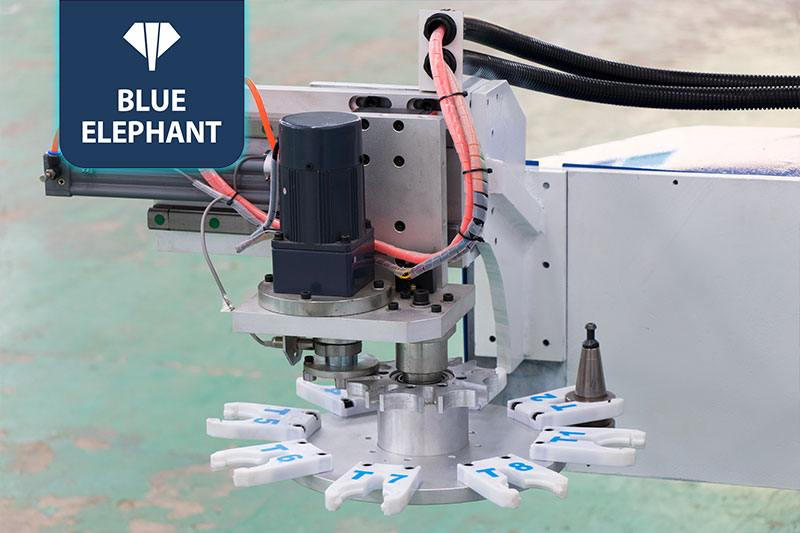

| Tool Sensor | Carousel Tool storage 8pcs Tool Storage |
| Structure | New Type Thicker and Bigger Heavy Duty Welded Frame and Gantry |
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
