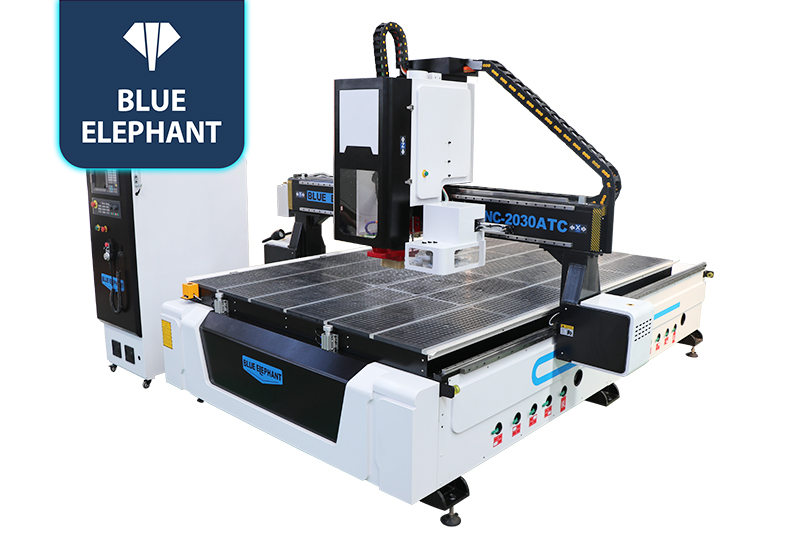

Newest ELECNC-2030 Carousel ATC CNC Router for sale in USA, Colombia, Canada with CE certificate

☆This is an ATC CNC router with a high power ATC spindle for heavy duty woodworking. Through automatic tool change, Italian HSD air-cooled spindle, automatic lubrication, improve work efficiency.

Get Details & Prices

ATC CNC Router Machines Video

Get More Videos

Features

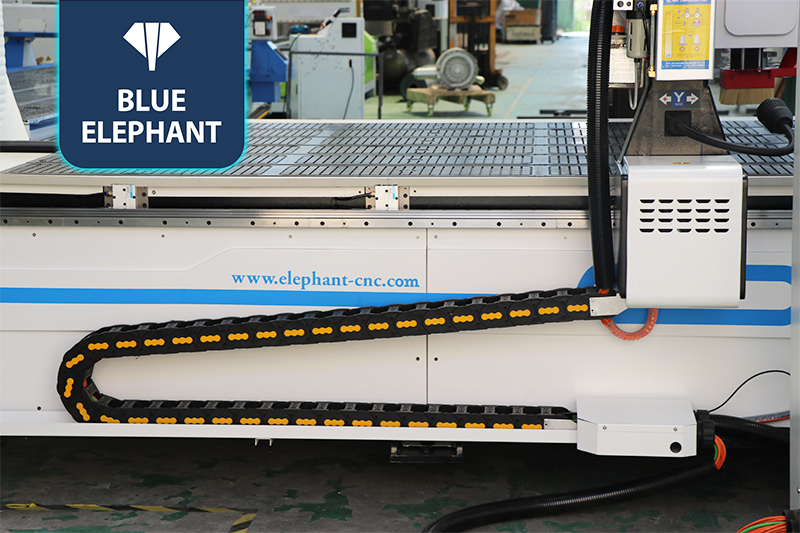

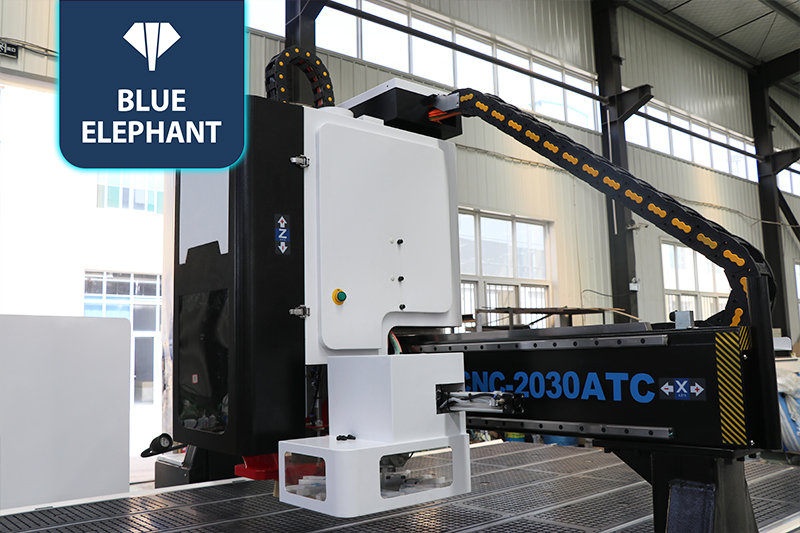

The strong steel construction enables the machine to perform heavy-duty machining for extended periods of time. Adopt heavy-duty frame and gantry to make the machine run more stably.
It is equipped with a turntable tool magazine, which reduces the tool change time and does not require manual tool change, which greatly improves the processing efficiency.
Equipped with automatic oil mist cooling sprayer, it can process aluminum.

Parameters

Model	ELECNC2030ATC
X,Y axis travel	2000*3000mm
Z axis travel	200mm, option: 300mm, 400mm, 500mm, 600mm, etc
Spindle type	9kw ATC air cooling spindle, ISO30, ER32
Inverter type	11kw
Drilling bank	Taiwan or Italy 5+4 vertical drills
Tool magazine	Linear type auto tool changer Option: carousel type auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan SYNTEC / LNC controller, option: Ncstudio
Driving system	1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	5 pieces (X2, Y3)
Linear guide	Taiwan linear guide with dust proof
Transmission	X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire, etc
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm

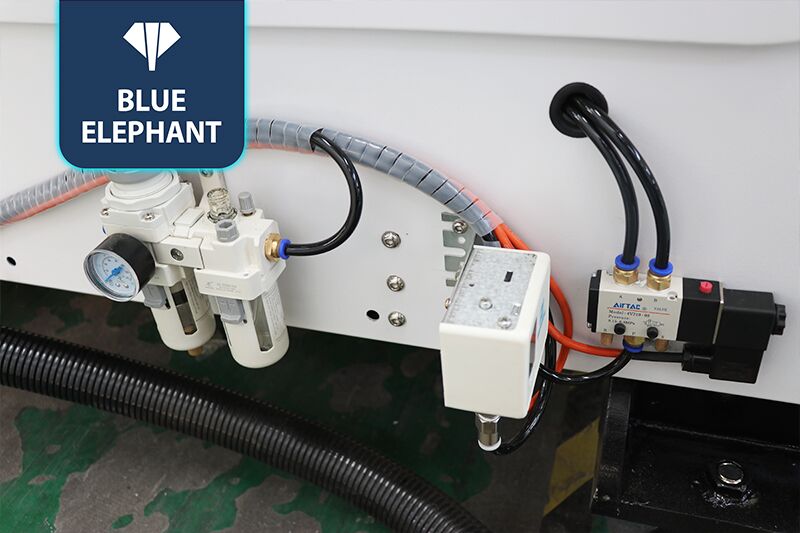

Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Get More Parameters

Application

The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, it can process various wood, plastics, acrylic, soft metals and composites. Besides, the oscillating cutter can cut various carbon fiber, leather, PVC, glass fiber, fiber cotton, prepreg cloth, aramid fiber, ceramic fiber, XPE material, silk coil, silica gel, rubber, acrylic, KT board and other flexible materials.
