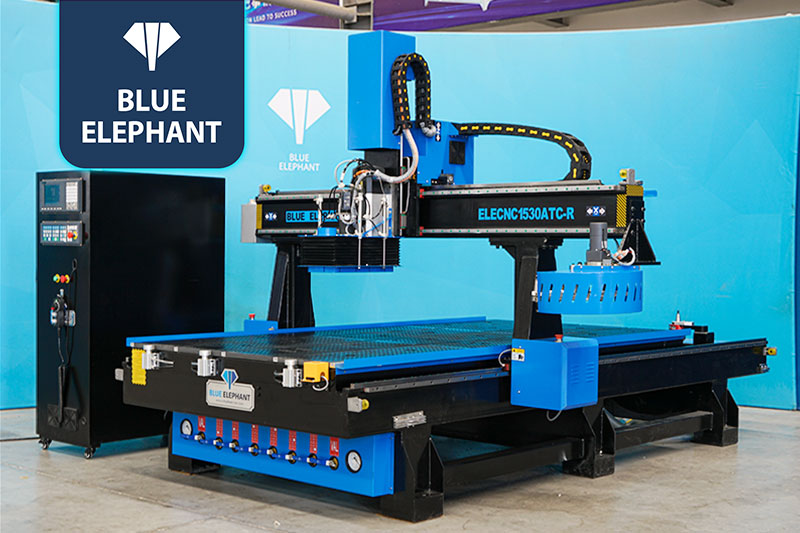

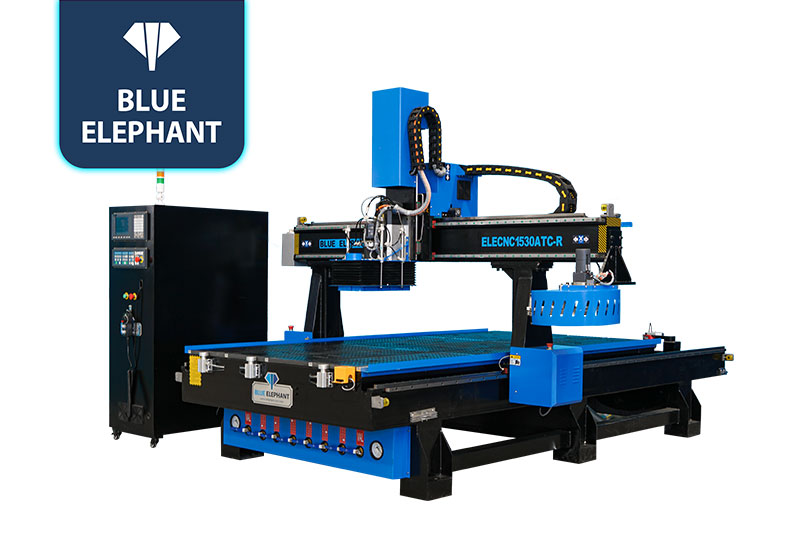

American Furniture Factory Favorite 1530 ATC CNC Engraving Machine with Aggregate Head
☆Featuring an HSD aggregate head that rotates 360 degrees, this CNC router can cut boards at various angles. With the automatic tool change function and high-quality components, labor can be saved.
ATC CNC Router Machines Video
Features
- It adds a C axis to the common 3 axis CNC router, which equipps with an aggregate head that can process materials in various angles.
- The ATC CNC machine can switch between a large number of tools without manual operation, improving accuracy and efficiency.
- All parts and components of this CNC router machine adopt famous-brand or high-quality products to ensure long service life and safe and reliable operation.
Parameters
| Model | ELECNC-1530ATC |
| X,Y axis travel | 1500x3000mm, option: 1300*2500mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 300mm, option: 400mm, 500mm, 600mm,etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |

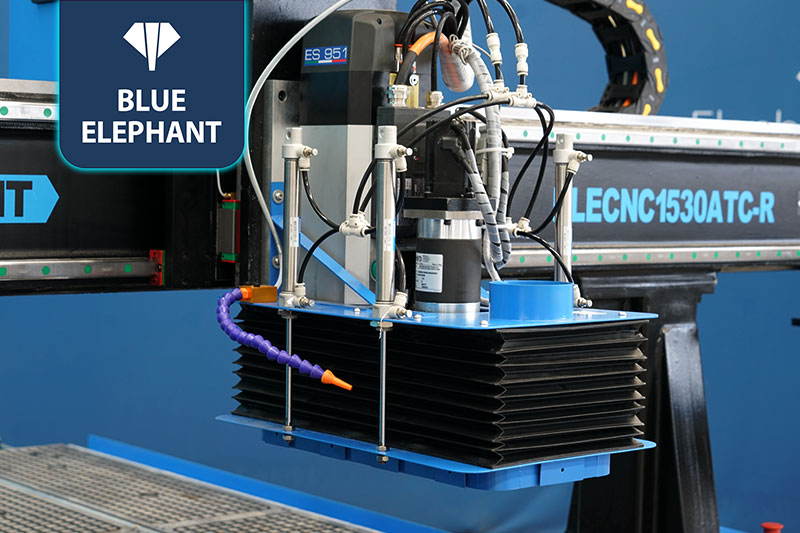

| Aggregate head | HSD aggregate head at C axis |

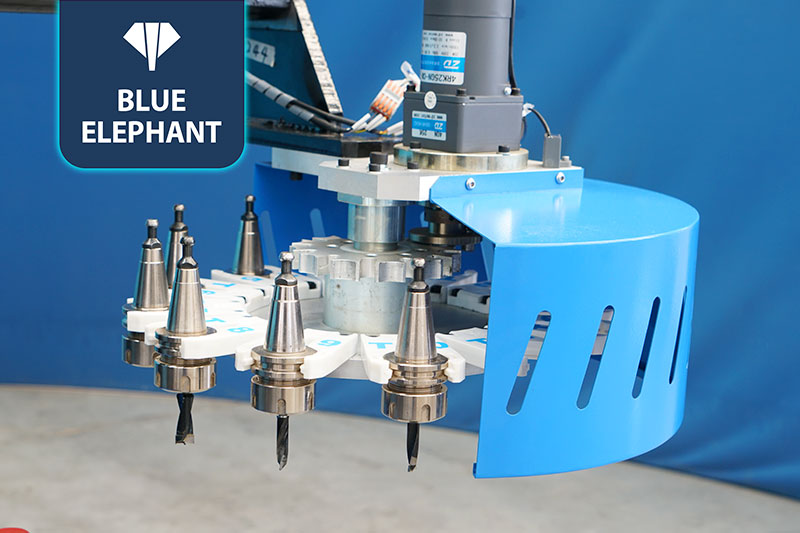

| Tool magazine | Carousel type auto tool changer
Option: Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC, option: Taiwan LNC controller |
| Driving system | 850w Yaskawa servo motor and driver;
option: 1kw Taiwan Syntec servo,850w AC servo motor |
| Reducer | Japan SHIMPO reducer |
| Rotary device | Diameter 200mm,option:300mm,400mm |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 7 pieces (X3, Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ |
Application
ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
