Best Selling Linear ATC CNC Router With Automatic Loading and Unloading Platform In Various Countries

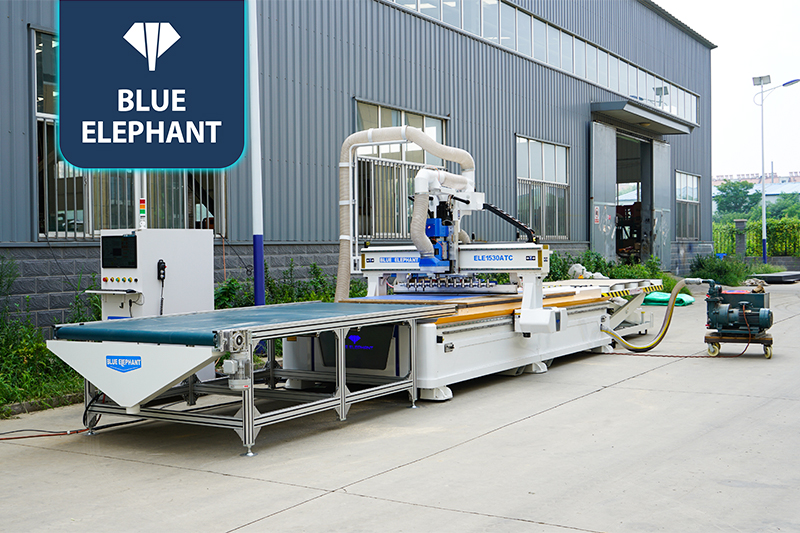

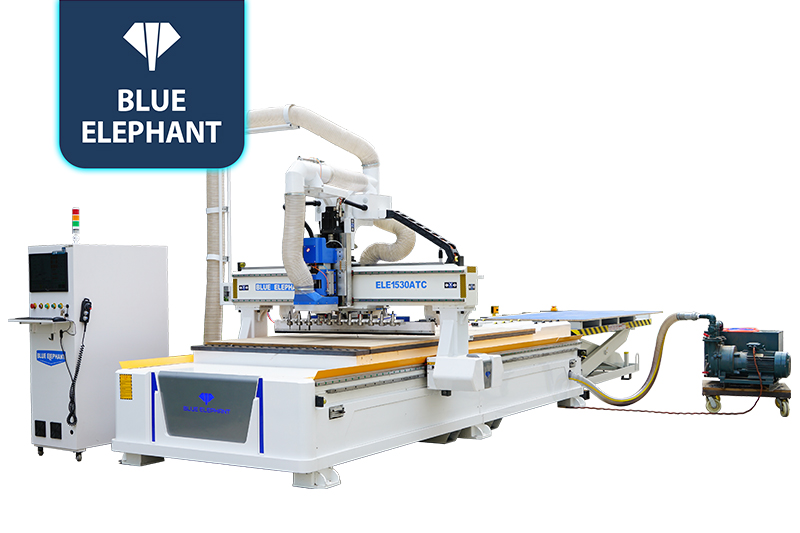

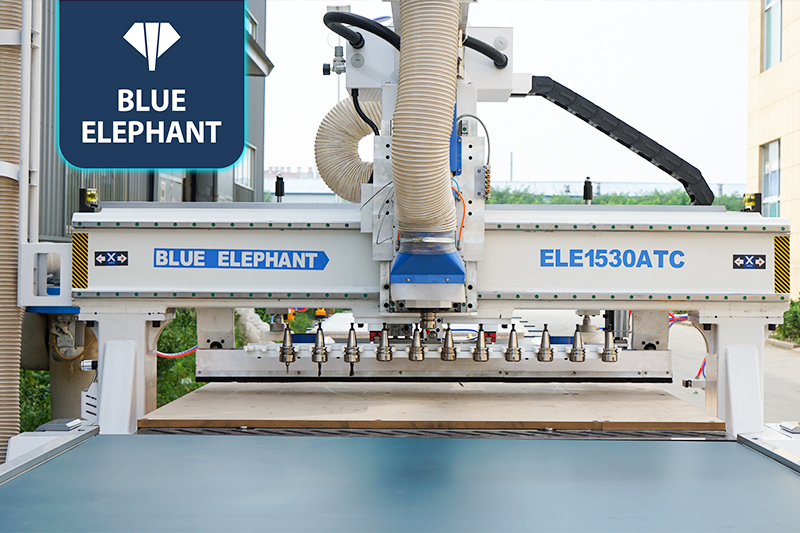

☆The machine is equipped with an automatic loading platform, which can greatly improve work efficiency. The linear tool magazine is installed under the beam, which greatly improves the tool changing speed and processing efficiency.
Digital Cutting Machines Video
Features
- Equipped with an automatic loading and unloading platform, it not only saves manpower but also improves production efficiency.

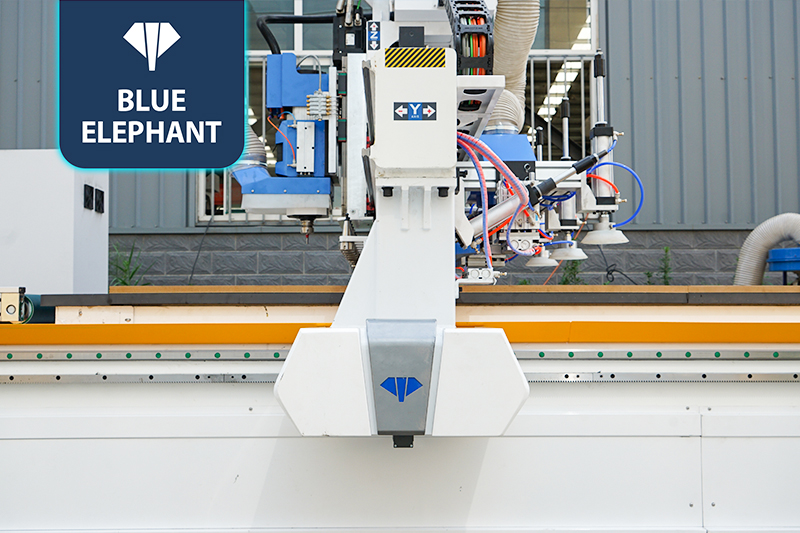

- The use of HIWIN linear square guide rails makes this machine a large bearing capacity, stable operation, high precision, and long service life.
- Adopting LNC 2200 control system, the advantage is that the display screen is clear and the operation is simple.
Parameters
| Items | Parameter |
| Model | ELECNC-1530ATC |
| Working area | 1500x3000x200 mm |
| Spindle | 9KW HQD ATC Air cooling spindle |
| Invert | 11KW Fuling inverter |
| Motor and drive | 1.3KW Leadshine servo motor with its driver |
| Control system | Taiwan LNC 2200 controller system |
| Inverter | Fuling Inverter |
| Vacuum pump | 7.5KW water vacuum pump |
| Lubrication system | 1.5L Auto lubrication system |
| Reducer | New Gear reducer |
Application
The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, it can process various wood, plastics, acrylic, soft metals and composites. Besides, the oscillating cutter can cut various carbon fiber, leather, PVC, glass fiber, fiber cotton, prepreg cloth, aramide fiber, ceramic fiber, XPE material, silk coil, silica gel, rubber, acrylic, KT board and other flexible materials.
Production Facility
Quality Control & Testing
