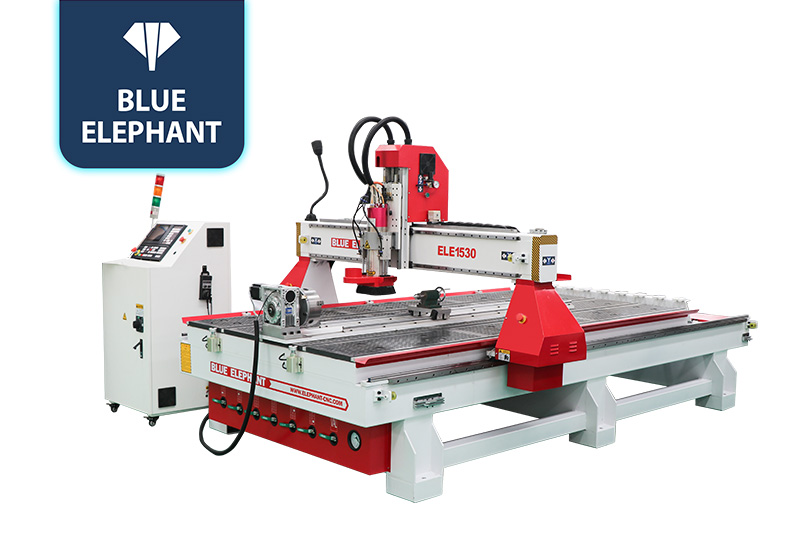

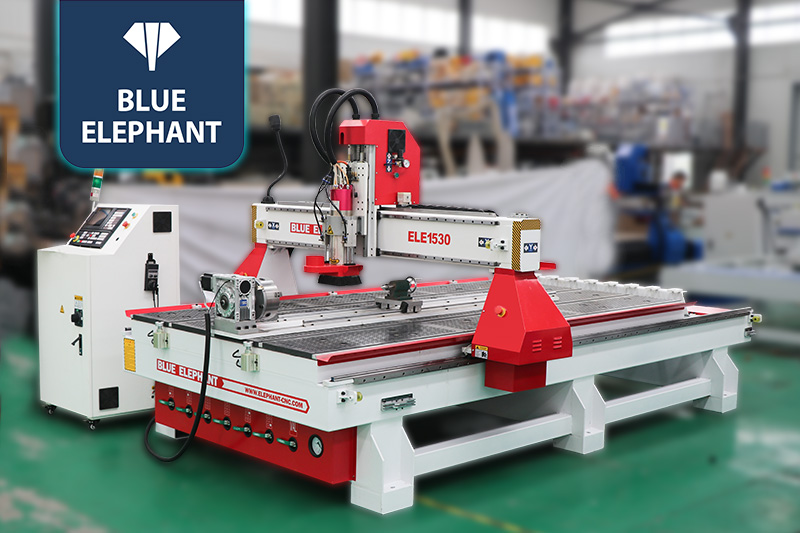

Affordable Rotary Axis CNC Router With ATC for Sale to Netherlands
☆This 4th axis CNC router with ATC function is widely used in furniture, crafts and decoration industries.
Rotary Axis CNC Router Machines Video
Features
- ATC CNC machine tools can switch between a large number of tools, improving accuracy and efficiency and saving labor costs.

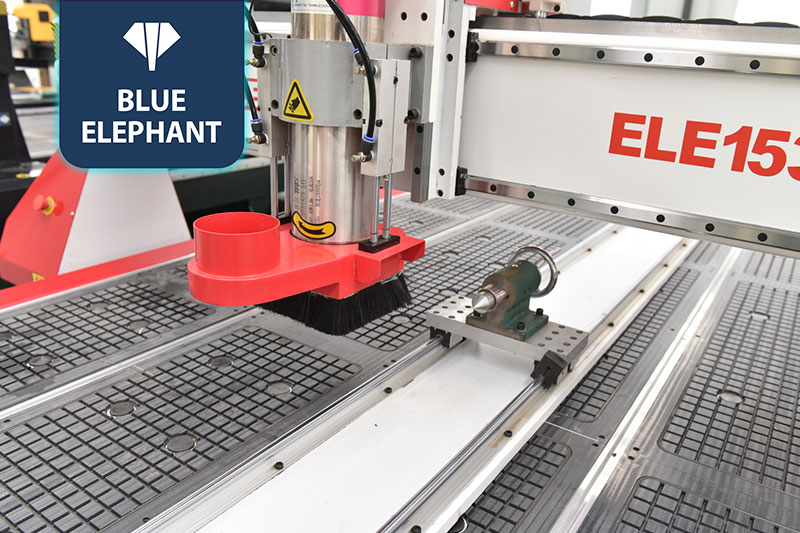

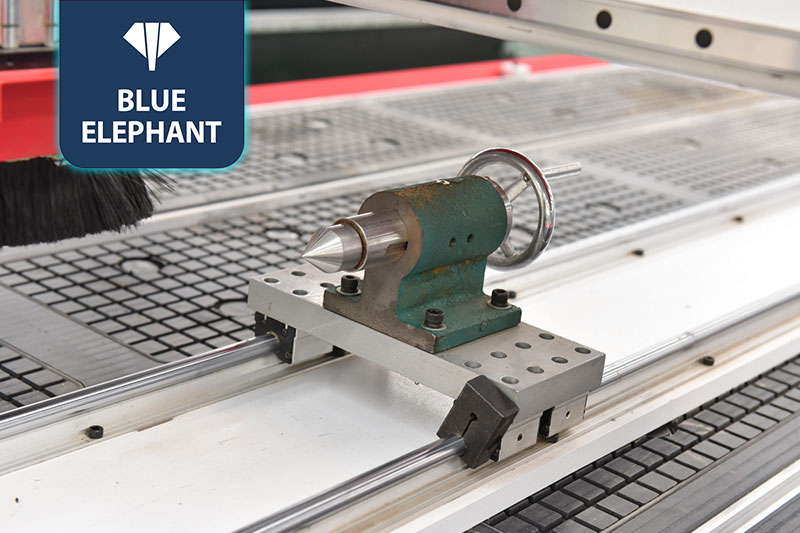

- It is equipped with a movable slewing device that can be loaded and unloaded freely, and is suitable for slewing devices with a diameter less than 200mm.
- All components are brand-name products to ensure long service life and safe and reliable operation.
Parameters
| Model | ELE1530ATC-4 |
| X,Y,Z Working Area | 1500*3000*300mm |
| Z axis travel | 300mm (according to your requests) |
| Table Surface | Vacuum and T-slot working table with 6 zones |
| Frame | Thicken steel Square Tube Heavy structure ,
8mm thicken steel gantry with T type |
| X, Y Structure | Helical Gear and rack transmission, Taiwan PMI Linear Rail #20 |
| Z Structure | Taiwan TBI Ball Screw, Taiwan PMI Linear Rail #20 |
| Spindle Power | 5.5kw Chang sheng water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | 750W Japan Panasonic servo |
| Working Voltage | 380V, 3Ph, 60Hz ( 220V for optional) |
| Operating System | Taiwan LNC control system with MPG hand wheel |
| Lubrication system | Automatic oil lubrication system |
| Tool sensor | Automatic tool sensor calibration |
| Inverter | 5.5KW Fuling inverter |
| Position | 5 pieces Position cylinder |
| Vacuum pump | 4KW German Becker vacuum pump |
| Rotary device | Rotary device(Diameter in 200mm) |
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
