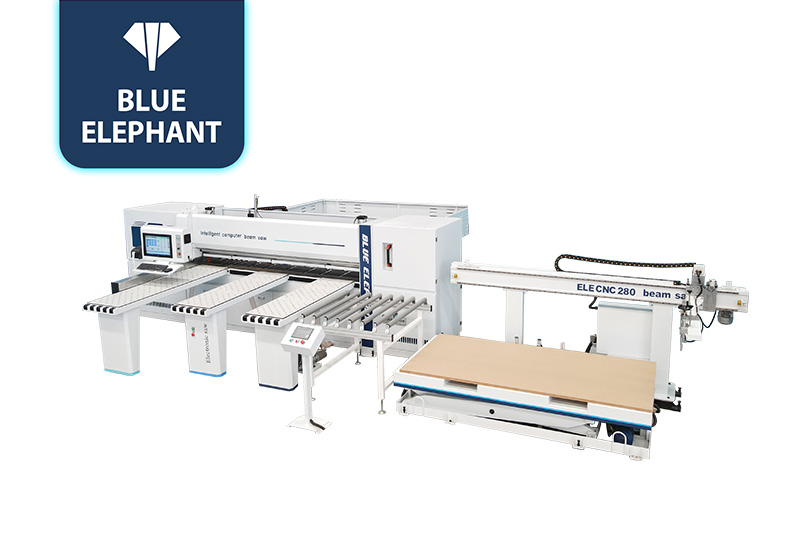

Automatic Feeding and Dividing Panel Saw Price

☆This machine is equipped with an intelligent computerized panel saw with a front automatic loading platform, which is widely used in woodworking industries such as furniture manufacturing and decoration.

Get Details & Prices

Panel Saw Machines Video

Get More Videos

Features

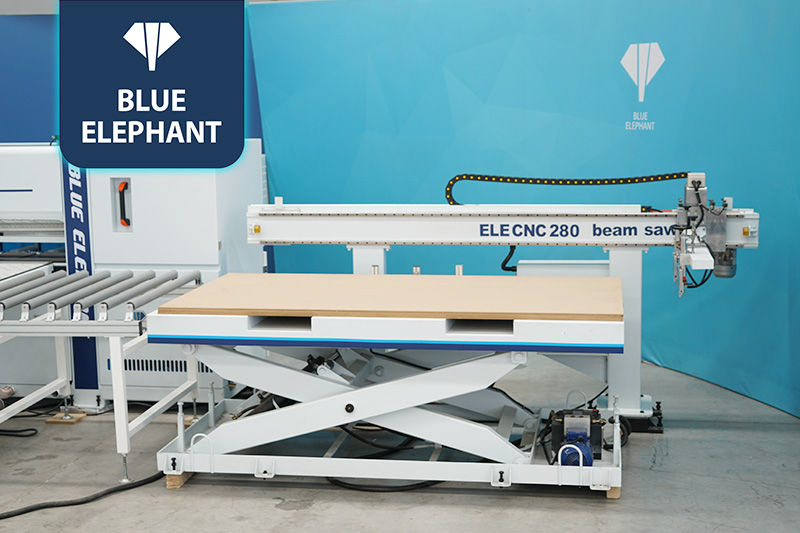

Equipped with an automatic loading platform to improve loading efficiency.
Equipped with an alarm device, it will automatically stop when a failure occurs, ensuring the safety of the machine during operation.
Sawing programs can be edited or simulated through compatibility.

Parameters

Model	ELECNC-280HG
Panel saw dimension	5400x5300x1800mm
Cutting length	2700mm
Cutting thickness	100mm
Main saw blade diameter	350mm
Main saw blade revolving speed	4800rpm
Groove saw blade diameter	180mm
Groove saw blade revolving speed	6900rpm
Forward speed of carriage	100m/min
Backward speed of carriage	150m/min
Main saw motor	15kW
Groove saw motor	2.2kW
Auto feeding motor	2.0kW (AC, servo)
High-press ventilating motor	3kW
Total power	23kW
Auto feeding speed	100m/min
Air pressure	5-7kg/cm2
Platform height	950mm
Control switch	Schneider
PLC	Fatek
Converter	Invt
Screen	Jikowi
Contactor	Schneider
Pneumatic elements	Hengtong
Solenoid valve	AirTac
Motor	Igarashi
Servo control system	Invt
Linear guide rail	SLM

Get More Parameters

Application

The computer beam saw adopts industrial computer control, which is advanced and easy to operate. CNC computerized panel saw is more suitable for standardized batch processing, and is the best choice for the production of engineering furniture and office furniture.
