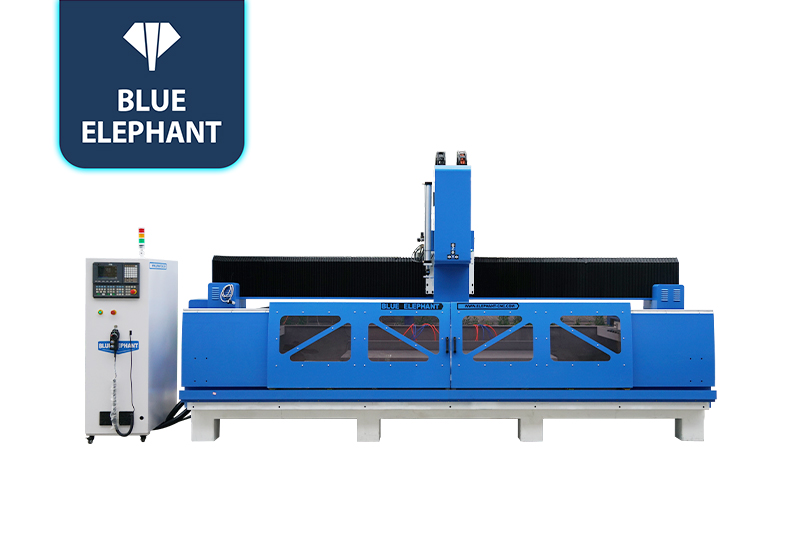

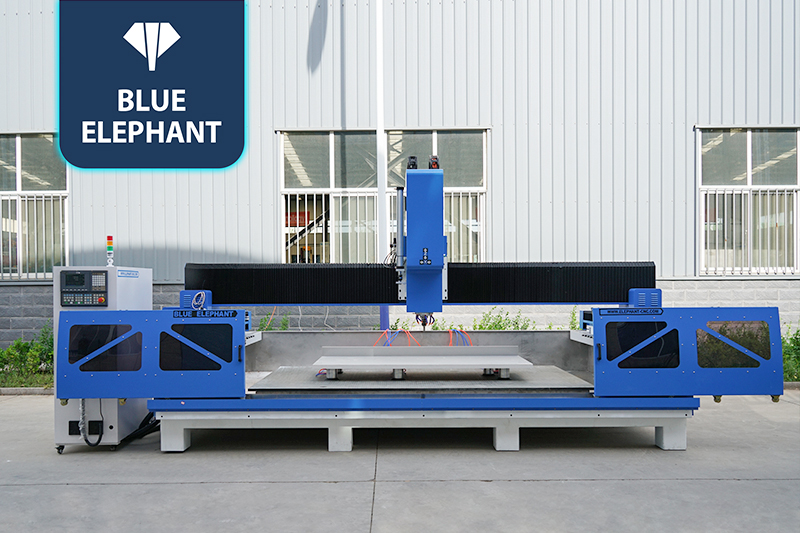

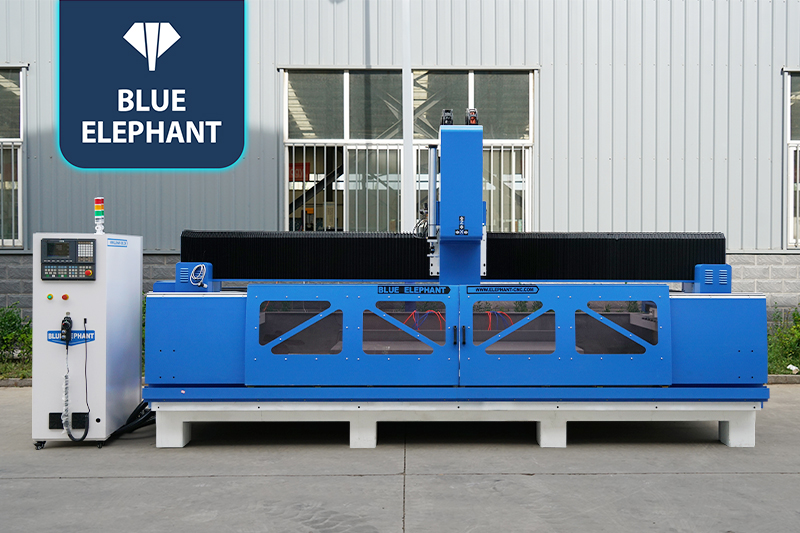

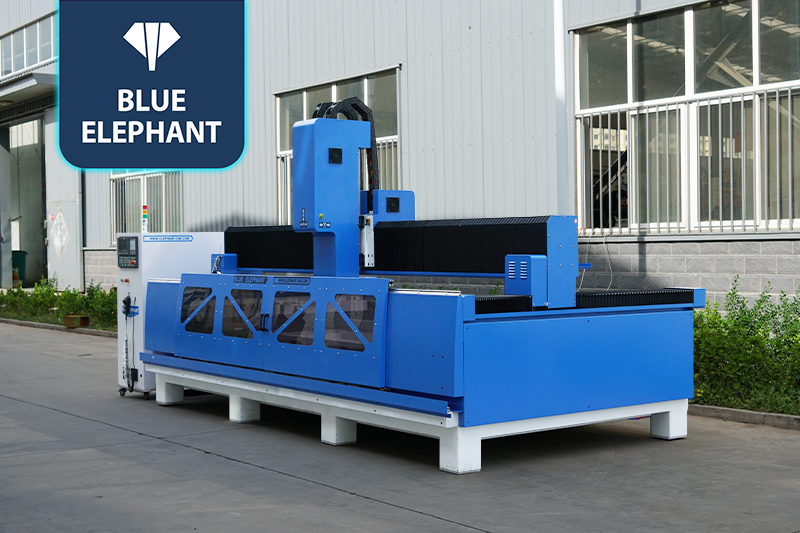

Automatic 3015 Quartz Stone CNC Machining Center for Sale

☆This stone CNC machining center is suitable for processing various stone materials such as granite, marble, and quartz, and is widely used in the processing of stone kitchen sinks, stone countertops, and basins.

CNC Machining Center Video

Parameters

Model ELECNC3015
X,Y axis travel 3000*1500mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel 500mm, option: 400mm, etc
Spindle type Kenturn 7.5kw water cooling ATC spindle
Inverter type 7.5kw inverter
Tool magazine 12pcs tool magazines
Tool holder with collet 12pcs BT40
Control system Syntec 60WE
Driving system 1KW YASKAWA servo driver and motor
Reducer Japan Shimpo reducer
Machine structure Heavy duty body with quenching treatment
Work table Stone special working table
Linear guide TaiwanLinear guide
Transmission X,Y axis: Taiwan Helical Rack and Pinion
Z axis:Taiwan TBI high precision ball screw
Lubrication system automatic lubrication system
Tool calibration Autotool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam / Aspire, etc
Command language G Code & M Code
Traveling speed 60m/min
Working speed 0-30m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure More than 0.6mpa
Working voltage 380V 3PH 50HZ/ 60HZ

Application

The stone processing center is designed for the deep processing of quartz, marble, granite, slate, and other artificial stones. It is widely used to make artificial stone handicrafts and artworks such as kitchen countertops, bathroom washbasins, bar counters, coffee tables, stone sculptures, tombstones, and tombstones.
