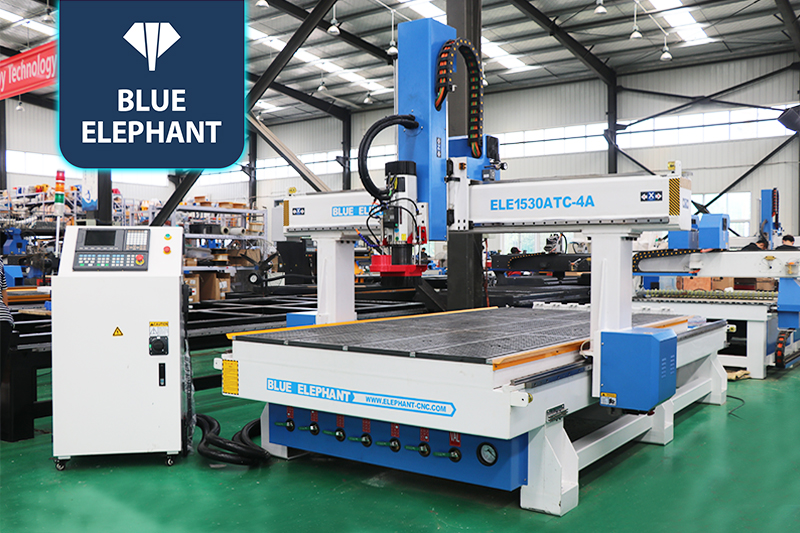

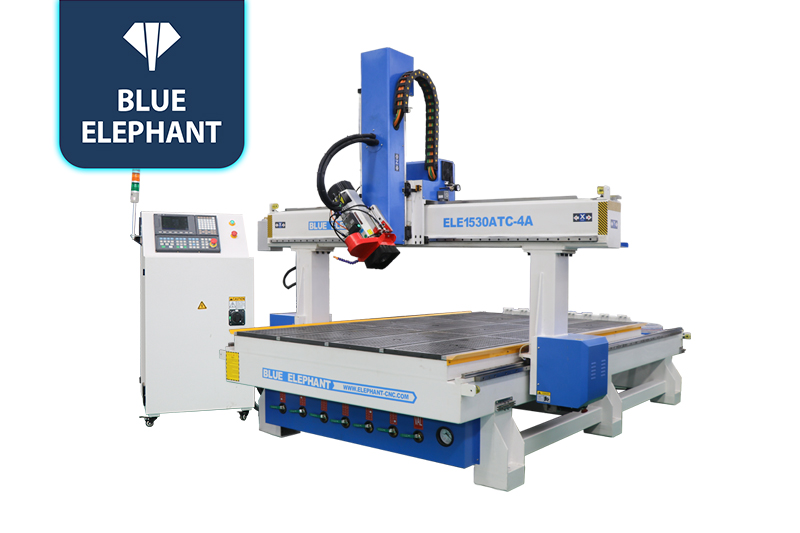

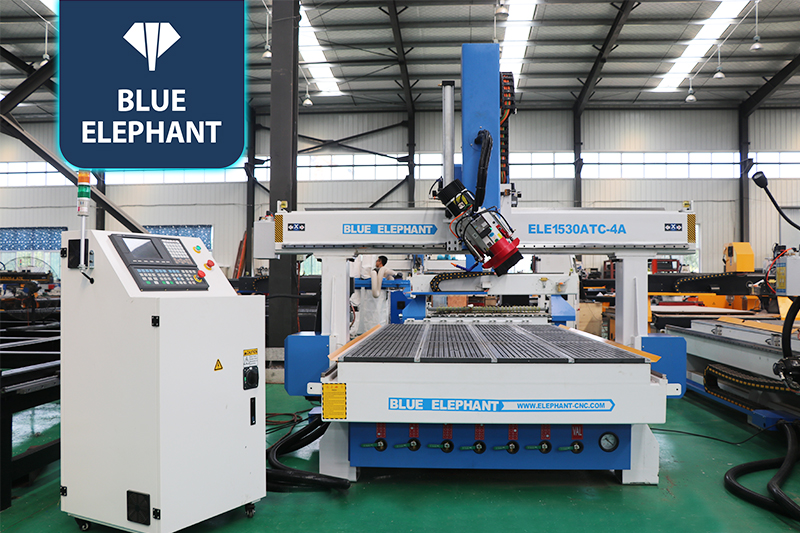

Best 1530 ATC 4 axis C And C Woodworking Machine
☆This 4-axis CNC woodworking machine can do a variety of jobs on wood, melamine, and other non-metallic materials. It can automatically switch between 8 different CNC router tools during operation, improving machining efficiency and saving labor.
4 Axis CNC Router Machines Video
Features
- Automatic tool change function, convenient tool change, improve production efficiency and save labor.
- The sturdy and durable industrial steel square tube structure will not let the machine deform for a long time.
- Specifications can be customized to meet different processing needs of customers.
Parameters
| Description | Parameter |
| Model | ELECNC-1530ATC-4A |
| Tool magazine | Linear type auto tool changer with 8 tools storage |
| X,Y,Z Working Area | 1500x3000x400mm |
| Table Size | 1500×3000mm |
| Table Surface | Vacuum and T-slot working table, 6 zones |
| Structure | Industrial class square tube strong structure |
| X, Y Structure | Rack and Pinion Drive, Taiwan PMI 25# Linear Square Rail; |
| Z Structure | Taiwan PMI 25# Linear Square Rail and TBI Ball Screw |

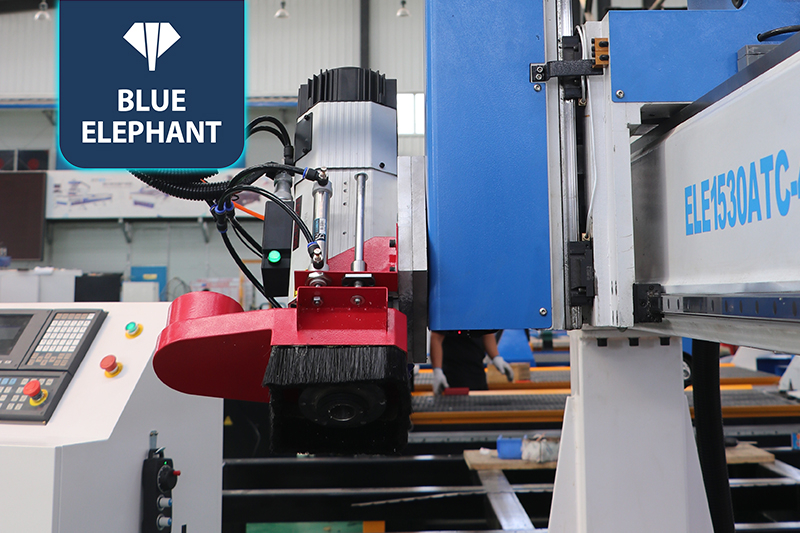

| Spindle | Rotary spindle, 9kw HQD ATC air cooling spindle, Swing -90°to +90° degree |
| Spindle Speed | 0-24000RPM |
| Drive Motors | 850w Japan YASKAWA servo motors and drivers |
| Inverter | 11kw Fuling inverter |
| Working Voltage | 380v, 3phase, 50HZ (or customized) |
| Command Language | G Code |
| Operating System | Taiwan SYNTEC control system |
| Computer Interface | USB |
| Collet | ISO30 |
| Machine color | White and blue (Can be customized) |
| Software | Artcam |
| Lubrication system | New type 1.5L big Automatic lubrication |
| Tool sensor | Automatic tool sensor calibration |
| Vacuum pump | 3kw new type double packet dust collector (380V, 3Phase, 50Hz) |
| Dust collector | 7.5kw water circulation vacuum pump (380V, 3Phase, 50Hz) |
Application
The 4 axis ATC CNC router here refers to the ATC CNC router with a rotating spindle, which can swing 180° from left to right. The working path of the 4 axis ATC CNC router includes X, Y, Z and A axis. So it is also suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.
