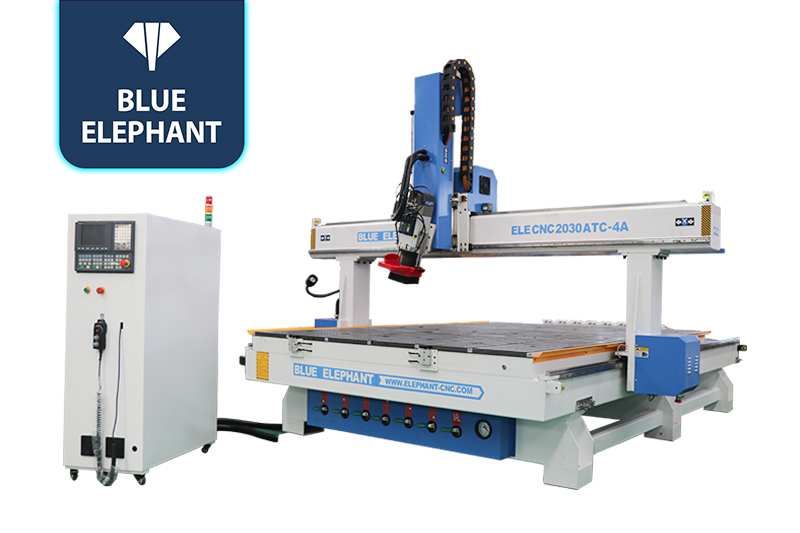

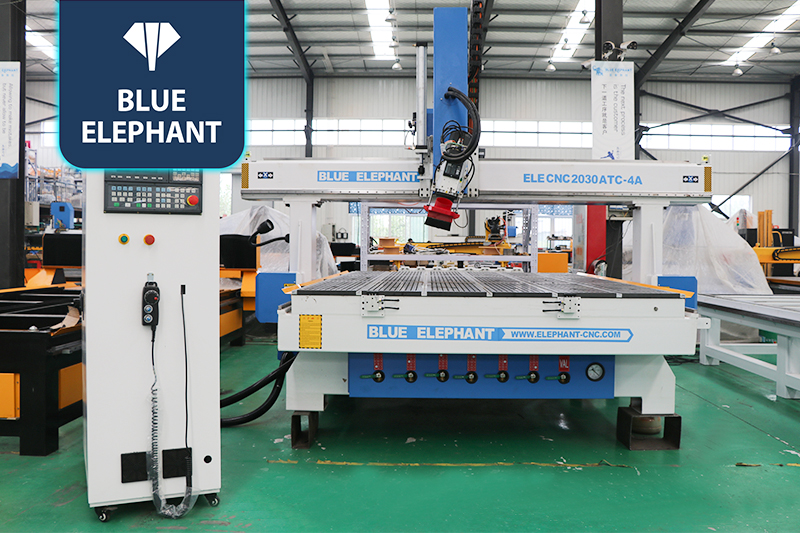

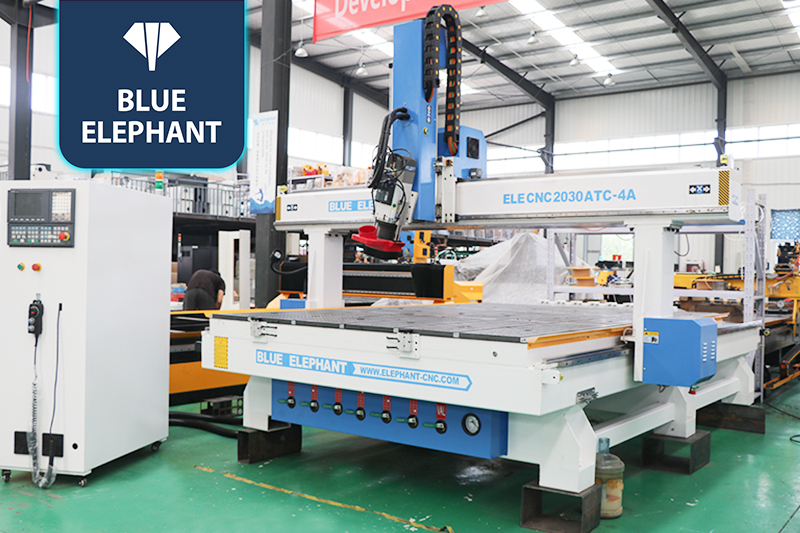

Top Rated 4 Axis Wooden CNC Machines For Sale
☆This machine is widely used in the production of wooden furniture, handicrafts, moulds, boats, bags, photo frames, etc., and can process three-dimensional workpieces with high precision.
4 Axis CNC Router Machines Video
Features

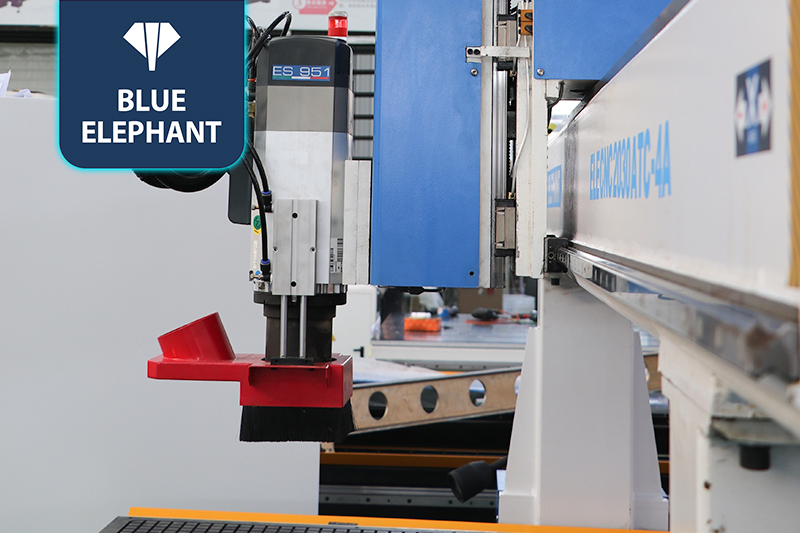

- The oscillating spindle of the 4-axis CNC router increases productivity by machining the top, left and right sides of the workpiece in one pass.
- The extra-large working size can process all kinds of large-format wood panels for panel furniture production.
- The structure of the machine is rigid, and it will not deform or shake during long-term operation.
Parameters
| Description | Parameter |
| Model | ELECNC-2030ATC-4A |
| X,Y,Z Working Area | 2060*3000*400mm |
| Control system | Taiwan SYNTEC control system |
| Working Voltage | 380V 3phase, 50Hz(Option) |
| Spindle | 9kw Italy HSD Air Cooling Spindle |
| INVERTER | 11kw Taiwan DELTA INVERTER |
| Motor and driver | 850W YASKAWA servo motor and 1kw YASKAWA driver, SHIMPO reducer |
| Gantry Structure | Gantry moving |
| Table Surface | T-slot & vacuum working Table |
| Table structure | New type thicker and bigger heavy duty welded frame and gantry |
| X, Y, Z Transmission | Helical rack on X,Y axis and Taiwan TBI ball screw on Z axis |
| X,Y, Z Rail | Japan THK25# linear guide |
| Lubrication system | Automatic lubrication system |
| Vacuum pump | 5.5KW German BECKER Pump, 380v, 3ph, 50hz |
| Positioning cylinder | 5 cylinders in total; with 2 on X axis, 3 on Y axis |
| Tool Sensor | Auto tool sensor calibration |
| Wire | High soft shield with copper wire to protect against static electricity |
Application
4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.
