Quartz, Granite, Marble 5 Axis Stone Bridge Saw for Sale

☆ Five-axis CNC stone bridge saw is good at cutting, milling, chamfering, and edging of regular and irregular shapes of quartz, marble, engineered stone, and slabs. It can realize table cutting, bridge cutting, Roman column cutting, arc cutting, concave and convex cutting, irregular edge cutting, and milling.

Get Details & Prices

CNC Machining Center Video

Get More Videos

Parameters

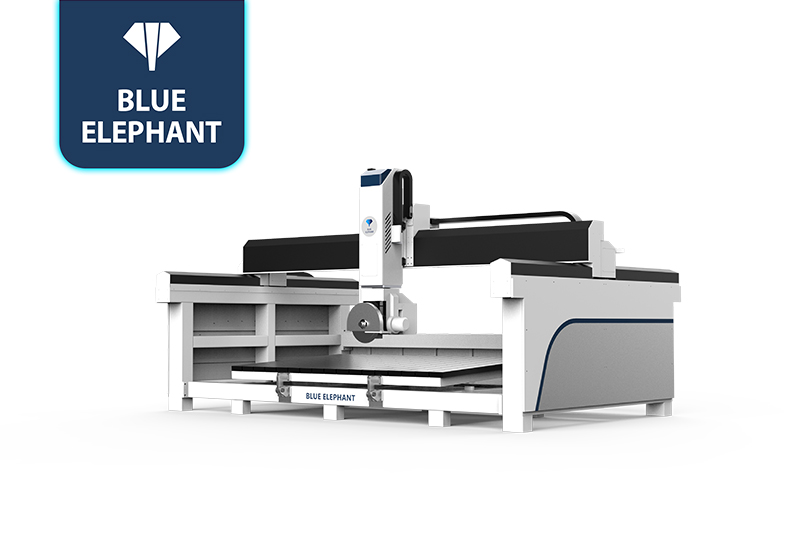

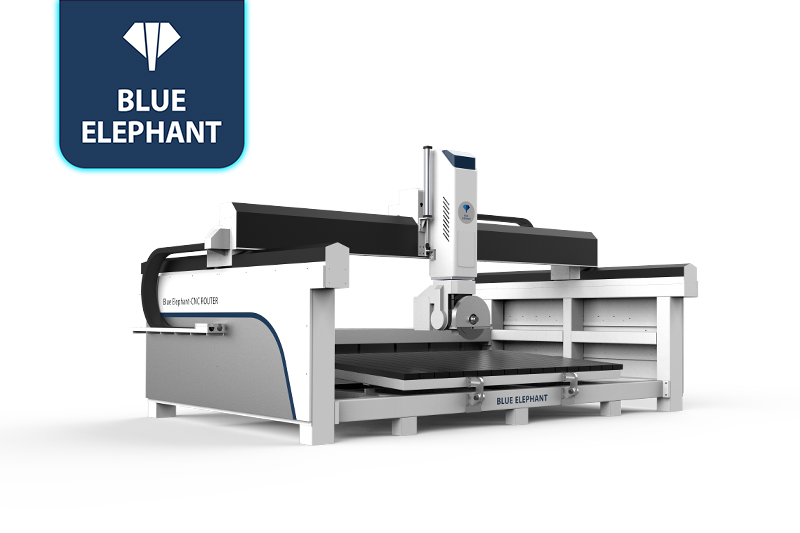

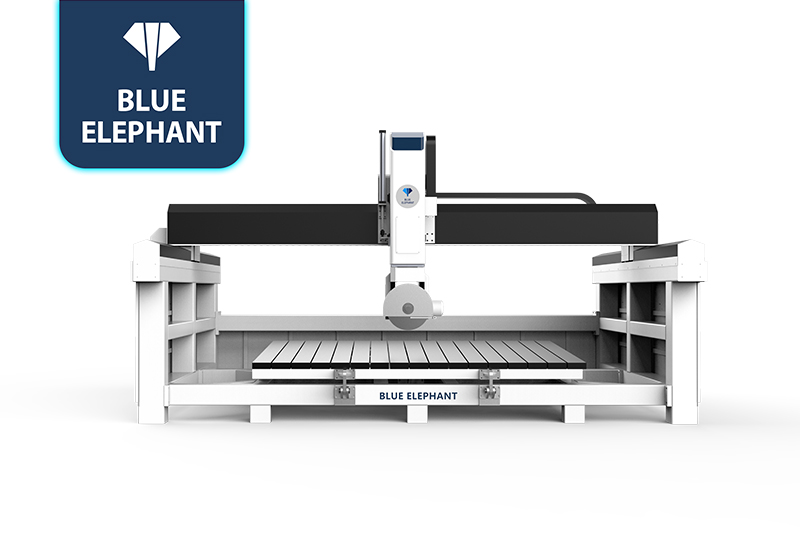

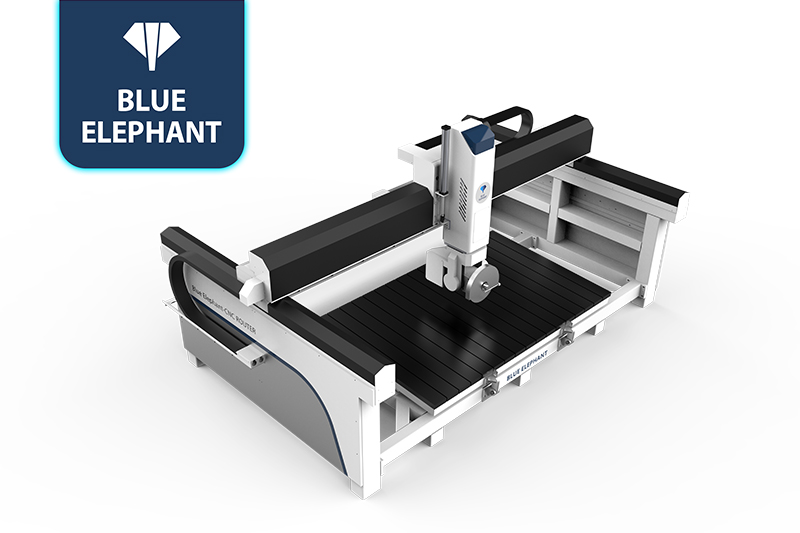

ES5-3220 5 axis CNC stone bridge saw
Working travel	X, Y, and Z	32002000500mm
	C axis	±185°
	A axis	0-90°
Moving speed	X axis	30m/min
	Y axis	30m/min
	Z axis	15m/min
Servo motor	X and Y	850W Delta absolute servo motor
	Z axis	850W Delta absolute servo motor with brake
	A and C	750W Delta absolute servo motor
Guide rail	X, Y, and Z: # 30
Rack	X、Y	2M T-WIN
Worktable	Structure	Square timber
	Worktable size	3200×2000mm
	Turning angle	0-80°
	Max. weight for turning	800KG
Saw	Dimension	450mm
Saw	Max. cutting thickness	100mm
Ball screw	Z	3210 PREYP
Reducer	X/Y: SHIMPO
Saw motor	11KW BRICH motor, Rated: 1500r/min
Inverter	15KW BRICH
Control system	Blue Elephant customized system (built-in CAM software)
Low-voltage electronics	SCHNEIDER
Working air pressure	0.7-0.8Mpa
Voltage	380V/3P/50HZ
Overall dimension	5.8×4.5×3.3m
Weight	5.5 ton

Get More Parameters

Application

Five-axis CNC stone bridge saw is good at cutting, milling, chamfering, and edging of regular and irregular shapes of quartz, marble, engineered stone, and slabs. It can realize table cutting, bridge cutting, Roman column cutting, arc cutting, concave and convex cutting, irregular edge cutting, and milling.

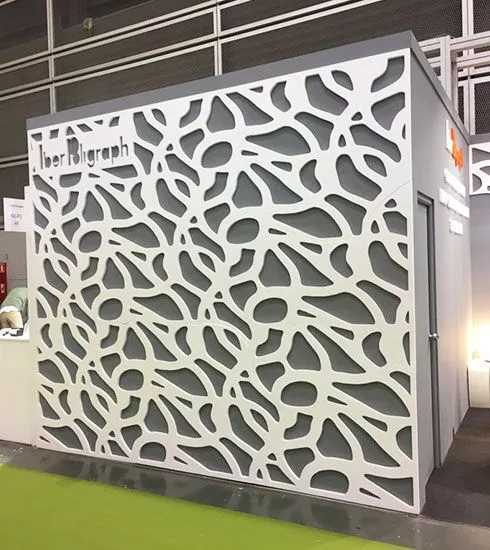

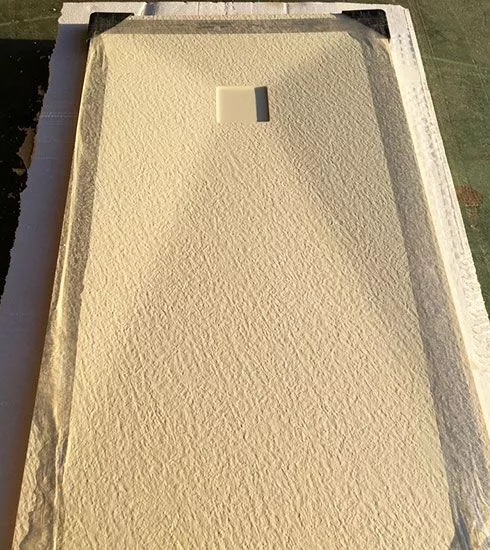

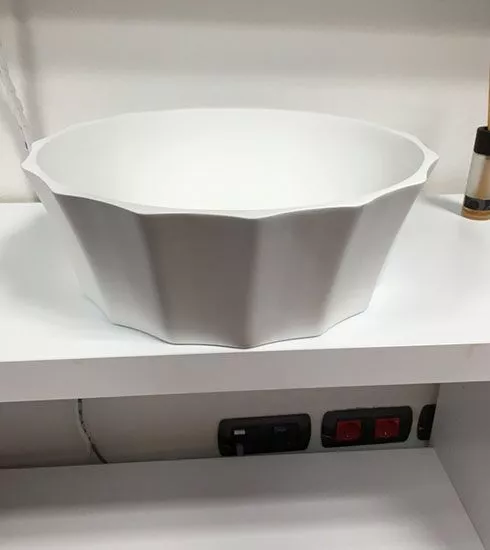

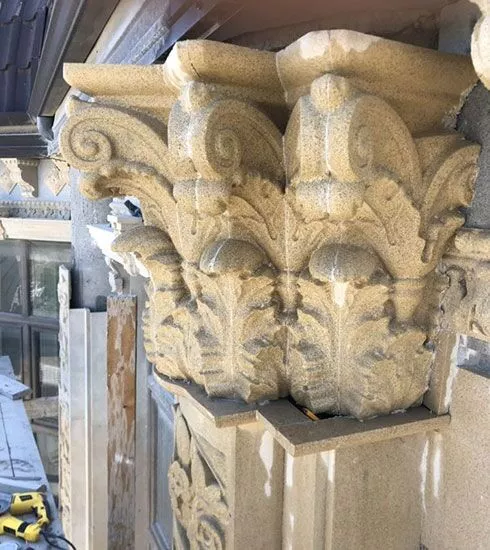

The automatic stone-cutting bridge saw can process products in the fields of sanitary ware, stone furniture, interior decoration, etc. Such as washbasins, bathroom countertops, stone tables, dining tables, kitchen tables, kitchen cabinet basin, background wall, Roman edge stone decoration, etc.
