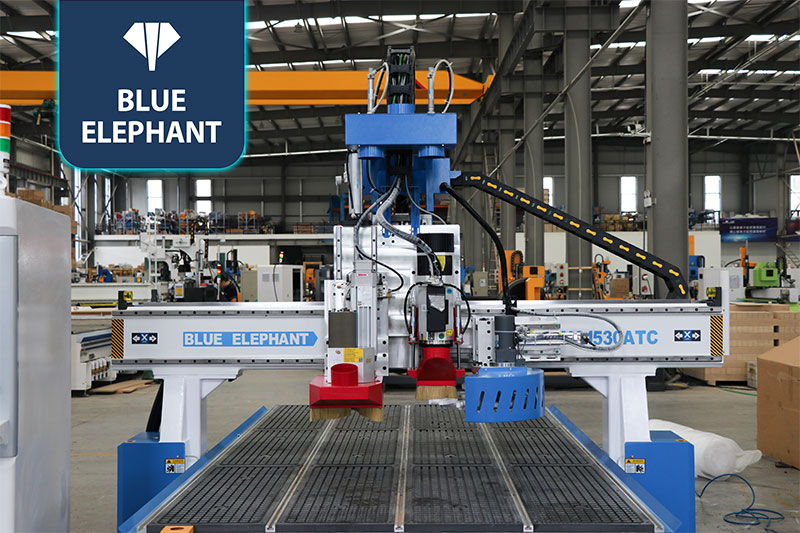

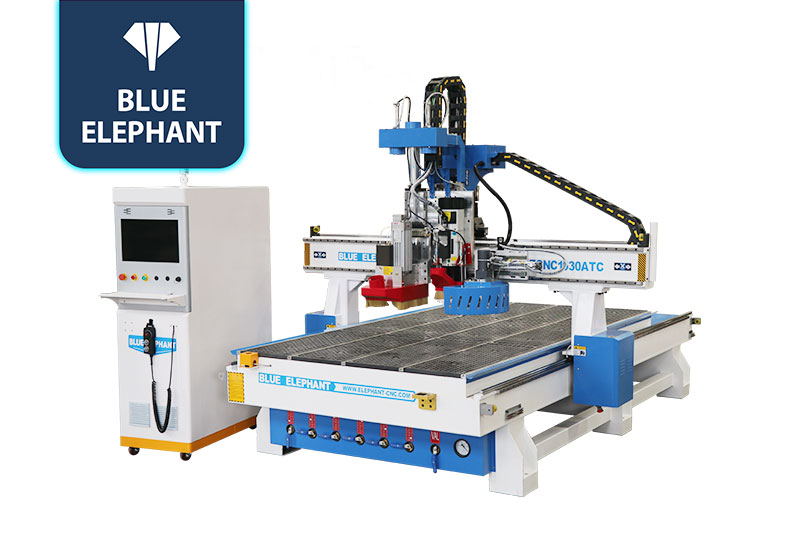

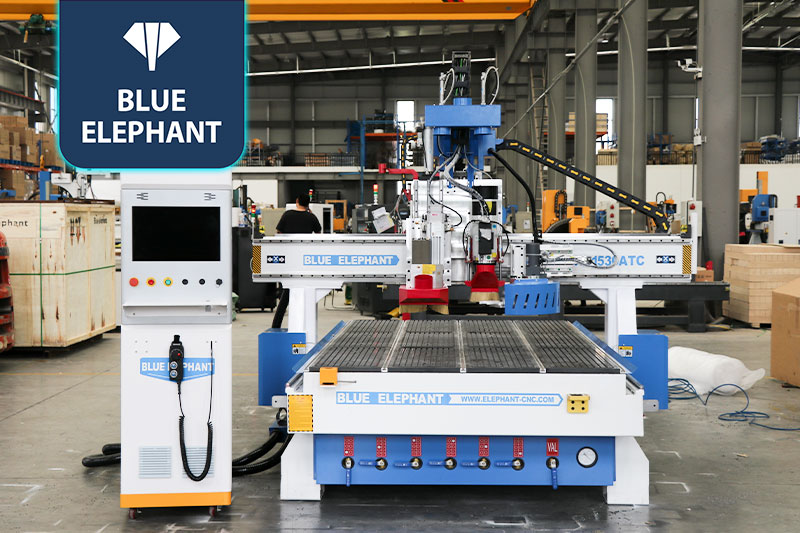

Top selling ATC CNC Milling Machine With 7+2 Drill for Woodworking

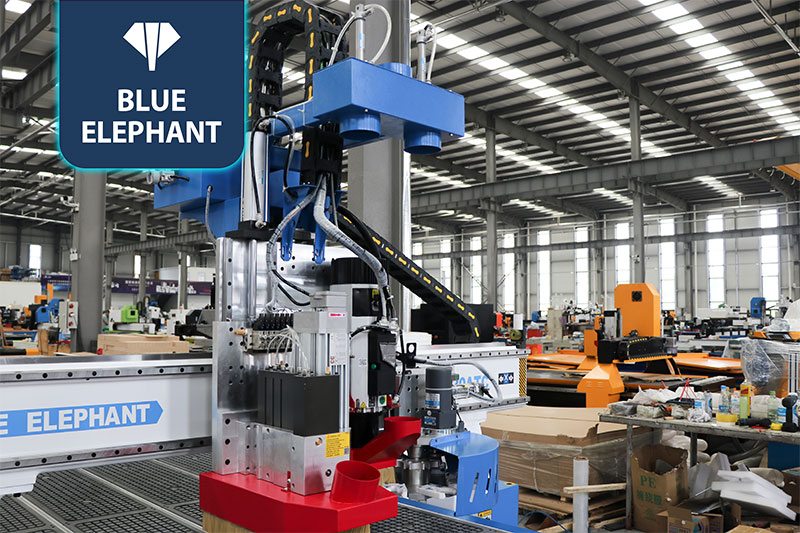

☆This ATC CNC wood router machine is equipped with a high-power ATC spindle andWith a drilling head having 7 vertical and 2 horizontal drill bits, this machine can meet various drilling demands.

Get Details & Prices

ATC CNC Router Machines Video

Get More Videos

Features

1500x3000mm is enough to process most size boards for wooden furniture, beds, cabinets, etc.
9kW ATC air-cooled spindle, rotating speed 24000rpm, strong cutting ability and high precision. Improve processing efficiency.
The working area and specifications can be customized according to your requests.The carousel tool magazine can be installed beside the spindle or at the end of the cross beam at your wish.

Parameters

Model	ELECNC 1530ATC
Working area	15003000200mm
Voltage	380V, 50HZ, 3P
Spindle	9kW HQD ATC air cooling spindle, 24000rpm, ER32
Drilling head	CC 7 vertical +2 horizontal drilling head
Tool magazine	8pcs carousel tool magazine
Motor & driver	Leadshine 850 servo motor and driver
Inverter	11kW Fuling
Control system	LNC MW 2000
Software	Artcam and Aspire
Worktable	Aluminum T-slot vacuum table
Vacuum pump	7.5kW Tongyong oil free vacuum pump
Transmission	Helical rack pinion for X and Y axis, TBI ball screw for Z axis
Guide rail	HWIN /PMI 25# linear square guide rail for all axes
Limit switch	Omron
Switch	Schneider switch and rotation handle
Dust collection	3kW double packages dust collector with CE certificate
Tool sensor	High accuracy automatic tool sensor

Get More Parameters

Application

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
