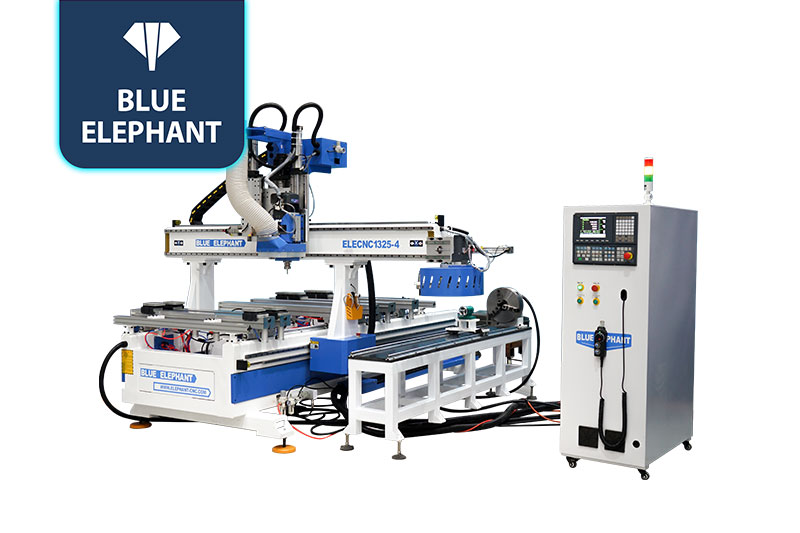

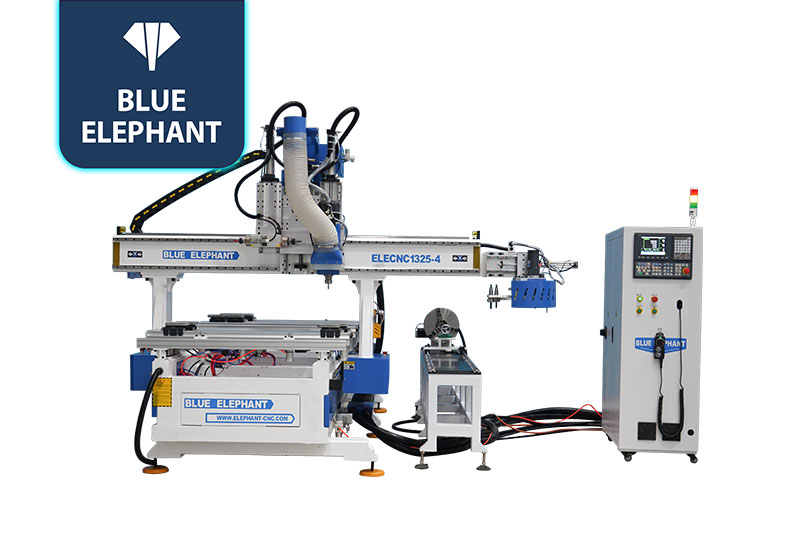

1325-Carousel-ATC-CNC-Router-With-A-Rotary-Device-and-PTP-Table-1-4

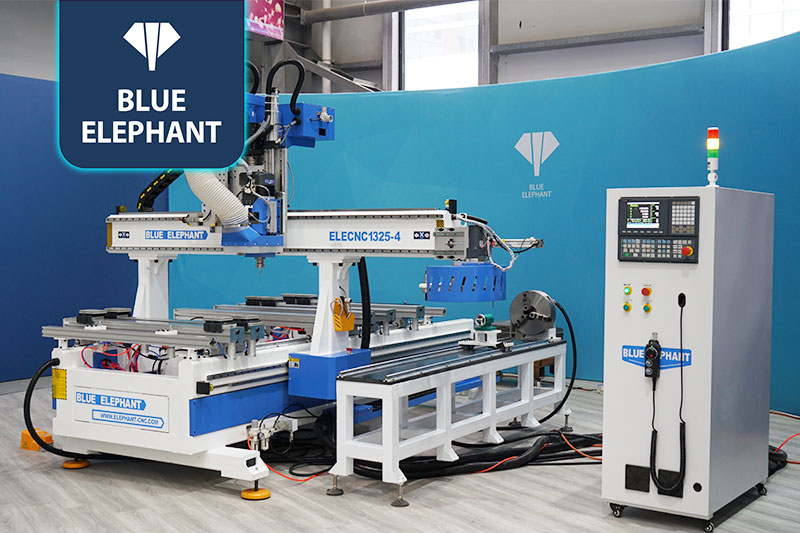

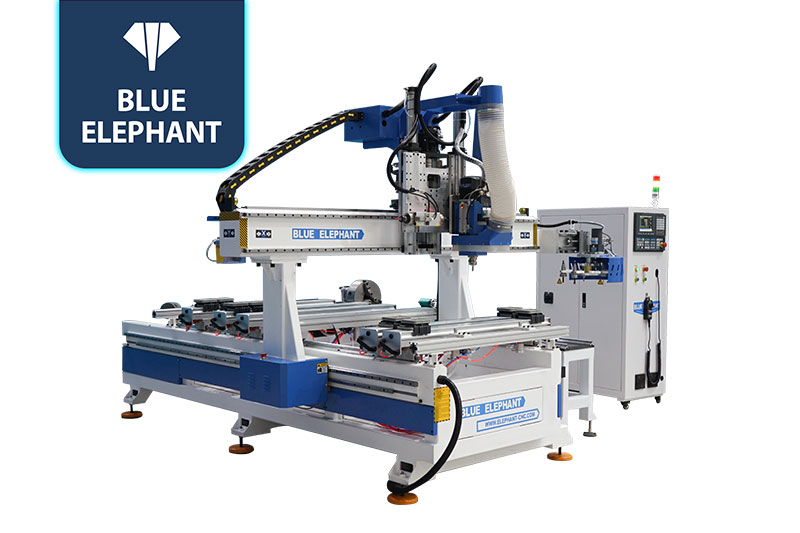

Top 1325 Carousel ATC CNC Router for Sale ,Machine With Swivel and PTP Table

☆This is a new type of ATC CNC woodworking machine tool, equipped with a 6-line German Schmalz PTP table movable adsorption block, which can adsorb the whole board or point-to-point adsorption. The separate swivel unit makes this table good for processing cabinet doors individually.

Get Details & Prices

ATC CNC Router Machines Video

Get More Videos

Features

The new thickened and heavy-duty structure ensures stable operation and high precision.
Assembled with extended beams, equipped with a disc tool magazine at the end of the gantry, easy to change tools, equipped with 9.6KW original Italian HSD air-cooled spindle, more efficient and durable.
Custom diameter movable swivel, adept at engraving cylindrical parts.

Parameters

Working area	1300x2500x400mm effective working area
Spindle	9.6kW HSD air cooling spindle
Spindle speed	24000 RPM
Inverter	11kW Taiwan Delta inverter
Tool magazine	8pcs carousel tool magazine
Control system	Syntec 6MB 4 axis control system
Motor and driver	Japan YASKAWA
Switch	SCHNEIDER
Working Table	Schmalz PTP working table, 6 lines
Limit switch	Japan OMRON limit switch
Reducer	Japan Shimpo reducer
Lubrication system	Automatic lubrication
Voltage	380V, 50Hz, 3 phase
Vacuum pump	German Becker pump
X,Y,Z Transmission	X,Y-helical rack pinion, Z axis with TBI ball screw
Frame structure	Heavy-duty structure
Tool sensor	Automatic tool sensor
Command Language	G Code
Guarantee	12 months

Get More Parameters

Application

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
