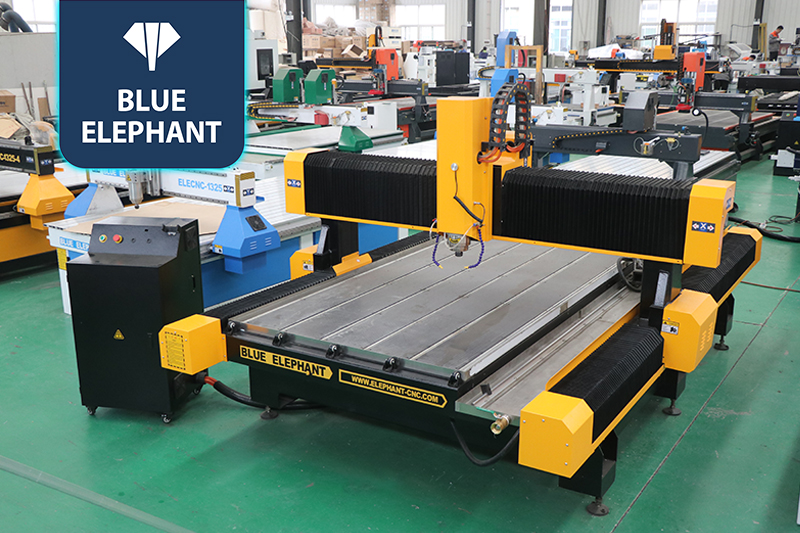

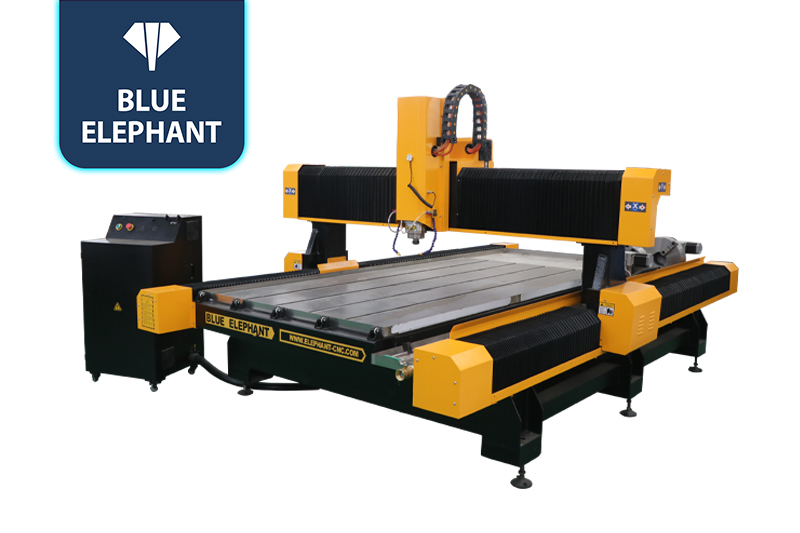

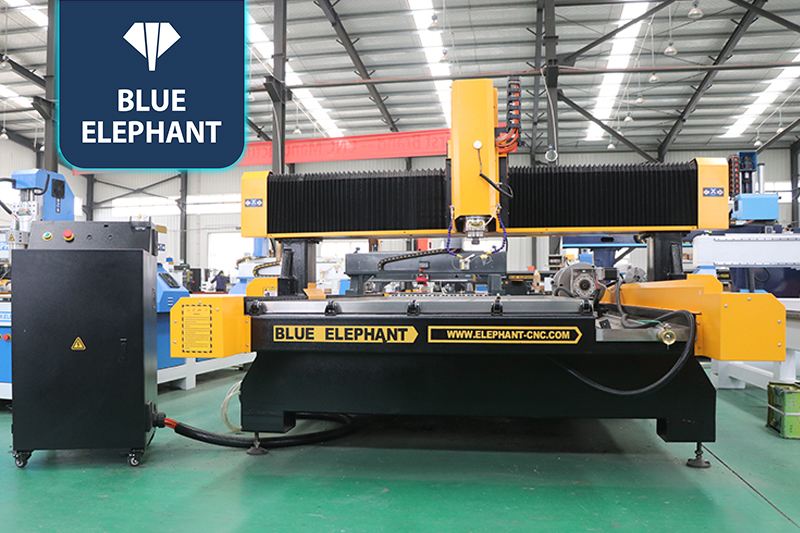

Customized 1325 Stone Carving Machine for Sale

☆This typical stone CNC machine adopts accessories of famous international brands. It has always been an ideal choice for the stone processing industry.

Get Details & Prices

Stone Engraving Machines Video

Get More Videos

Parameters

Model	ELECNC1325
X, Y axis travel	13002500mm, option: 15003000mm; 21003000mm; 21004000mm, etc
Z axis travel	300mm, option: 200mm, 400mm, etc
Spindle type	4.5kw water cooling spindle
Inverter type	5.5kw inverter
Control system	Mach3 controller for 4 axis
Driving system	FL118 stepper motor and YAKO 2811 big driver
Machine structure	Heavy duty body with quenching treatment
Work table	Stone special working table
Linear guide	Taiwan linear guide
Transmission	X,Y axis: Taiwan helical rack and pinion Z axis:Taiwan TBI high precision ball screw
Lubrication system	automatic lubrication system
Tool calibration	Autotool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam / Aspire, etc
Command language	G Code & M Code
Traveling speed	25m/min
Working speed	0-15m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.05mm
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Features

The heavy-duty machine structure ensures higher stability during stone carving, and the machine has a longer service life.
The accessories of the stone machine are all internationally renowned brands, which is an ideal choice for the stone processing industry.
Automatic lubrication system can save labor and improve work efficiency.

Get More Parameters

Application

Stone CNC engraving machine is mainly designed for line carving, 2D plane carving, 3D relief, shadow carving, and other stone processing. It can process marble, granite, jade, crystal, tombstone, agate, ceramics, plastic, chemical composite board, and other materials. Widely used in processing marble and granite kitchen countertops, bathroom countertops, washbasins, tables, floor drains, etc.
