Best Intelligent Wood Panel Saw Machine Price

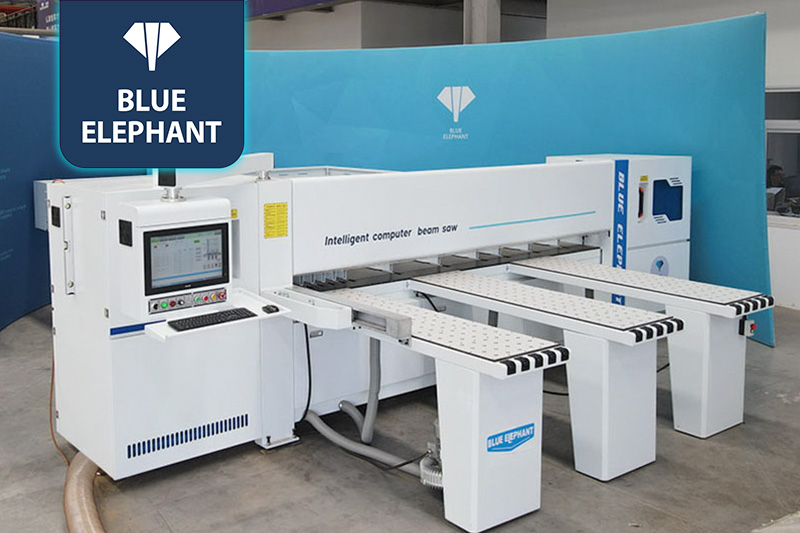

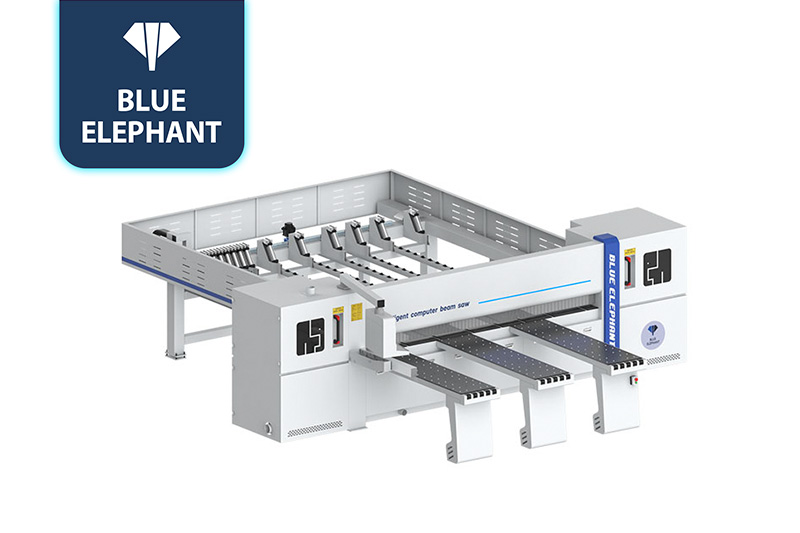

☆This high speed computer beam saw has the characteristics of high-speed cutting, excellent precision, high stability and easy operation. It is capable of cutting wooden panels with a maximum length of 3700mm.
Panel Saw Machines Video
Features

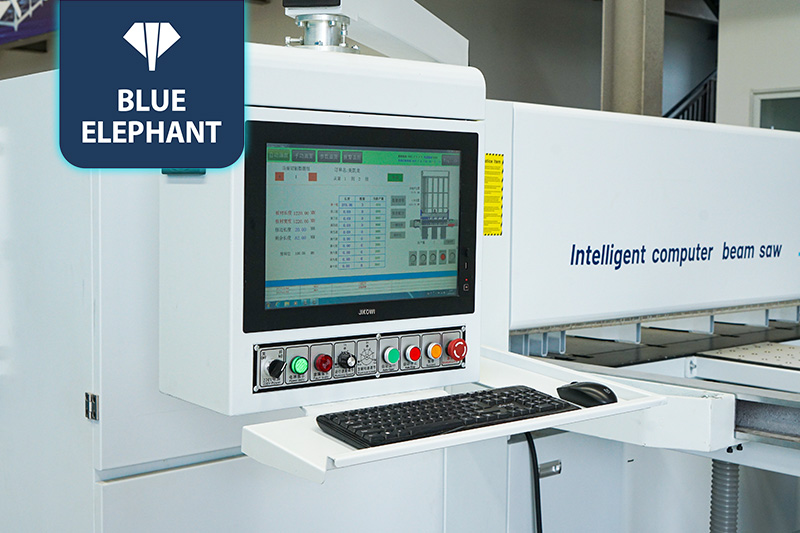

- Adopts industrial computer intelligence system, which has an advanced but easy-to-operate man-machine interface.
- Key components are all from international brand to ensure high accuracy and reliability.
- Optimized software adds drawing design and optimization while with the practical functions of residuals management, layout optimization, and barcode printing.
Parameters
| Model | ELECNC-380 |
| Overall dimension | 6400x6300x1800mm |
| Cutting length | 3700mm |
| Cutting thickness | 100mm |
| Main saw blade diameter | 350mm |
| Main saw blade revolving speed | 4800rpm |
| Groove saw blade diameter | 180mm |
| Groove saw blade revolving speed | 6900rpm |
| Forward speed of carriage | 100m/min |
| Backward speed of carriage | 150m/min |
| Main saw motor | 16kW |
| Groove saw motor | 2.2kW |

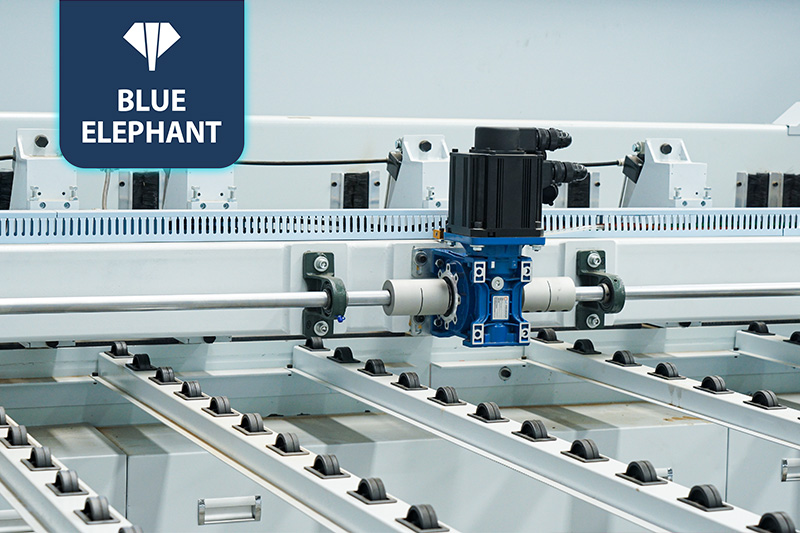

| Auto feeding motor | 1.5kW (AC, servo) |
| High-press ventilating motor | 2.2kW |
| Total power | 23kW |
| Auto feeding speed | 100m/min |
| Air pressure | 5-7kg/cm2 |
| Platform height | 950mm |
| Control switch | Schneider |
| PLC | Fatek |
| Converter | Invt |
| Screen | Fatek |
| Contactor | Schneider |
| Pneumatic elements | Hengtong |
| Solenoid valve | AirTac |
| Motor | Igarashi |
| Servo control system | Invt |
| Linear guide rail | SLM |
Application
Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels. The cutting surface is smooth without any burrs, and also has excellent precision. Computer beam saws are widely used in making various wooden furniture.
