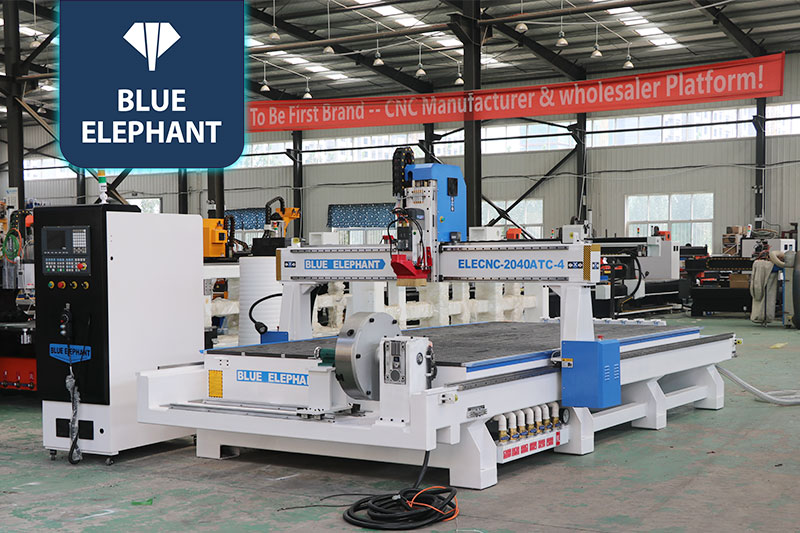

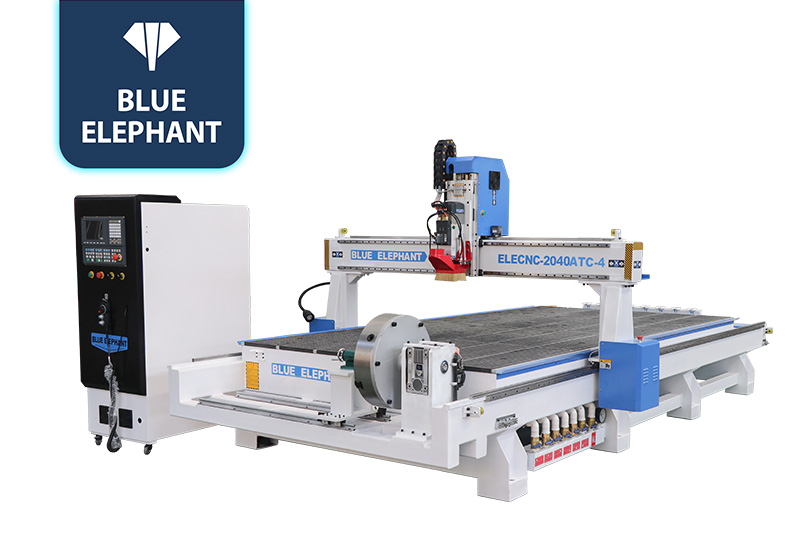

Best 2040 ATC Rotary Axis CNC Router for Sale at Cost Price to USA and Australia

☆This CNC woodworking machine features an automatic tool changer and front swivel. It is a good choice to have its own front rotary device. It is more suitable for the machine tool with long Y-axis stroke, and the working requirements when the processing length is less than or equal to the X-axis stroke

Get Details & Prices

Rotary Axis CNC Router Machines Video

Get More Videos

Features

The super-large working size of 2000x4000mm can process large-format wood panels required for the production of various panel furniture.

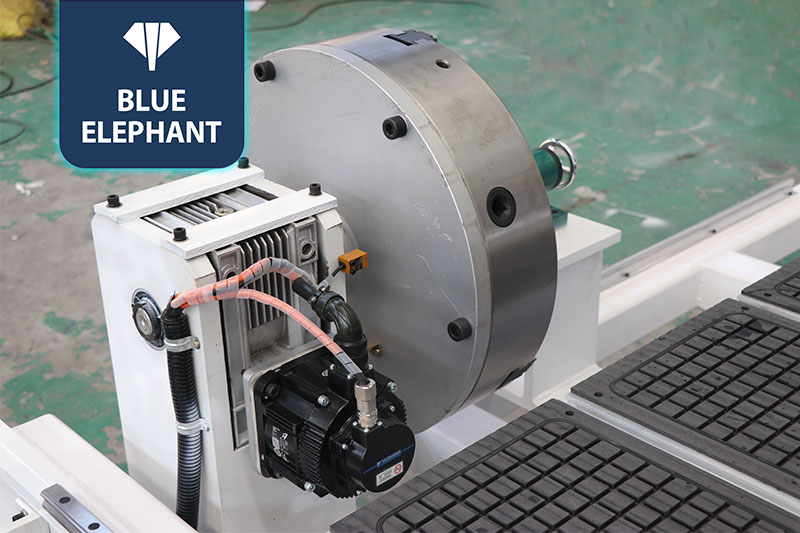

Equipped with a large-diameter rotary device, it is suitable for processing cylindrical parts.

Parameters

Serial Number	S20190930W
Model	ELECNC-2040 ATC
Working area	20004000400mm
Spindle	9.6kw Italy HSD ATC air cooling spindle
Spindle speed	24000RPM
Inverter	11.0kw Taiwan Delta inverter
Tool magazine	Linear design 8 positions
Control system	Taiwan SYNTEC 6MB control system
Motor and driver	850W YASKAWA servo motors and 1000 drivers
Working Table	T-slot & Vacuum working table with six zones

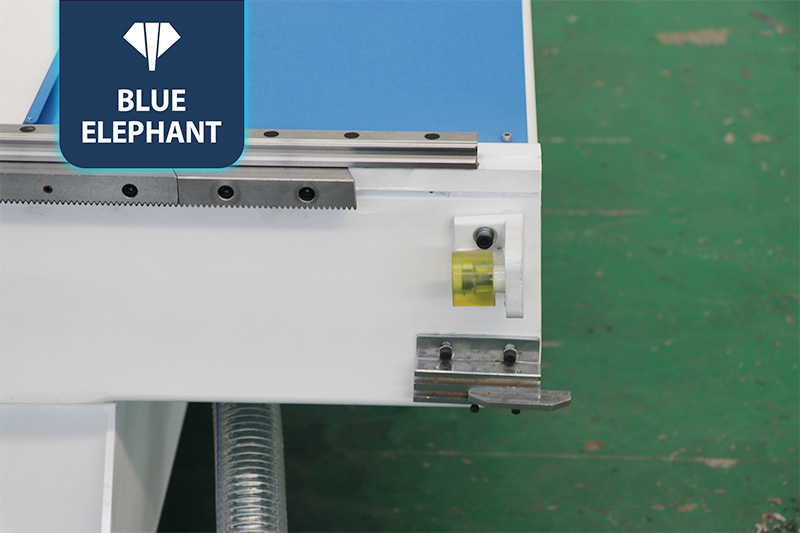

limit switch	Japan OMRON limit switch
Lubrication system	1.5L Automatic lubrication system
Voltage	380V, 3phase, 50/60HZ
Vacuum pump	7.5kw water circulation vacuum pump
X,Y,Z Transmission	Taiwan TBI ball screw for Z axis Helical rack gear for X,Y axis
X,Y,Z Rail	25mm Taiwan PMI/ Sweden ABBA Linear guide
Frame structure	Heavy duty bed more thicker
Cables	Shanghai Cardiff cables
Dust collector	1.5kw new design double bags dust collector
Tool sensor	Auto tool sensor calibration
Software Compatibility	Artcam software

Get More Parameters

Application

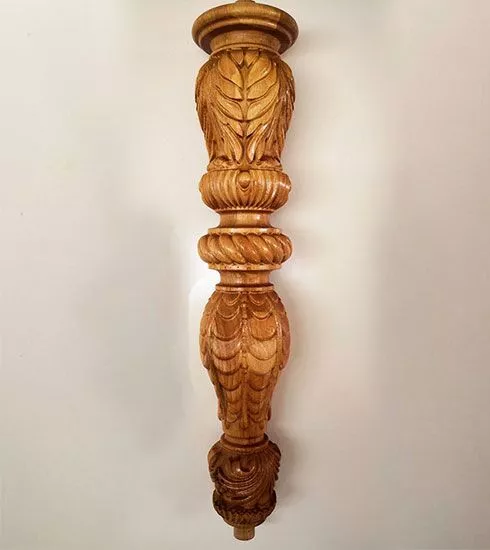

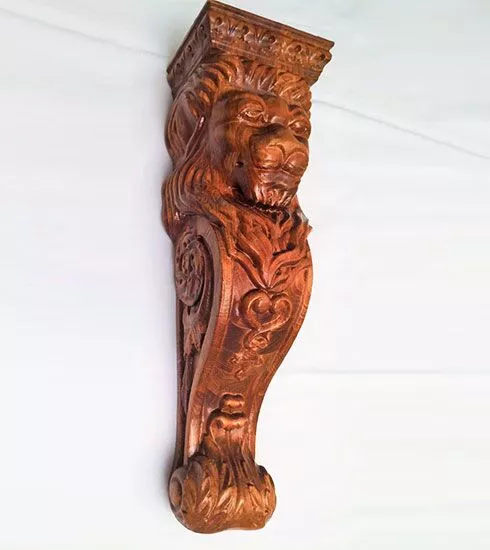

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
