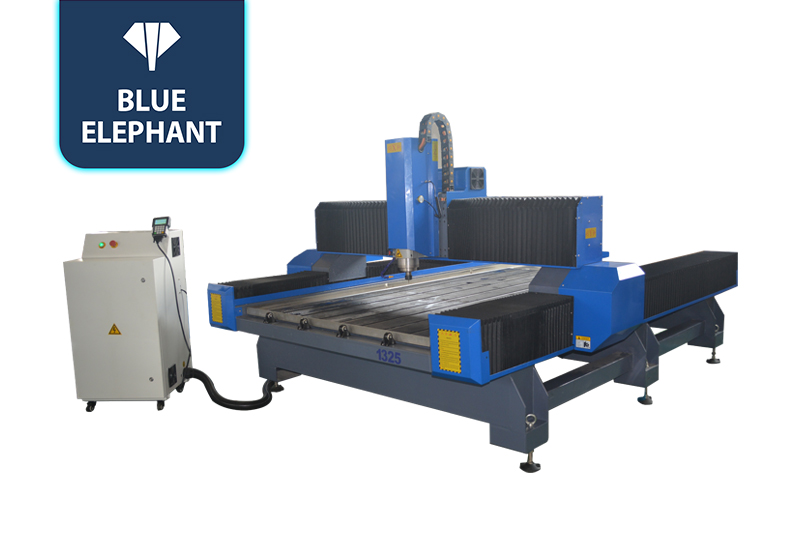

Best Quartz CNC Stone Engraving Machine for Sale
☆This is one of the most popular stone-cutting and engraving machines. High processing precision, fast processing speed and good cooling effect.
Stone Engraving Machines Video
Features
- 3.7kw Fuling inverter has stable performance and rich combination functions.
- The effective table size of 1300x2500mm is enough to process common stone slabs. In addition, the table size can be customized.
- The CNC stone machine tool kit is selected from internationally renowned brands to ensure the machine has a long service life to the greatest extent.
Parameters
| Model | ELECNC1325 Stone CNC Router |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, etc |
| Spindle type | 3kw water cooling spindle, 24000RPM 4.5kw/ 5.5kw/ 6kw for optional |
| Inverter type | 3.7kw Fuling inverter |
| Control system | Mach3 controller |
| Driving system | Stepper motors and drivers |
| Machine structure | Professional stone cnc bed, with heavy duty body more thicker and stronger |
| Work table | slot working table, with steel water sink; stainless steel sink for optional |
| Linear guide | Taiwan linear guide 20# |
| Transmission | X, Y axis: Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Dust cover | Dust covers for X,Y axis, protect the rails |
| Cooling system | Water cooling |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Manualtool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code |
| Traveling speed | 25m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.05mm |
| Working accuracy | ±0.05mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
The stone engraving machine is mainly designed to handle stone work such as line carving, 2D plane carving, 3D relief, shadow carving, cutting, and drilling. It can process marble, granite, jade, crystal, tombstone, agate, ceramics, glass, plastic, chemical fiber board, bamboo, wood, curved surface, spherical surface, stainless steel, iron, copper, aluminum, titanium alloy and other materials.
