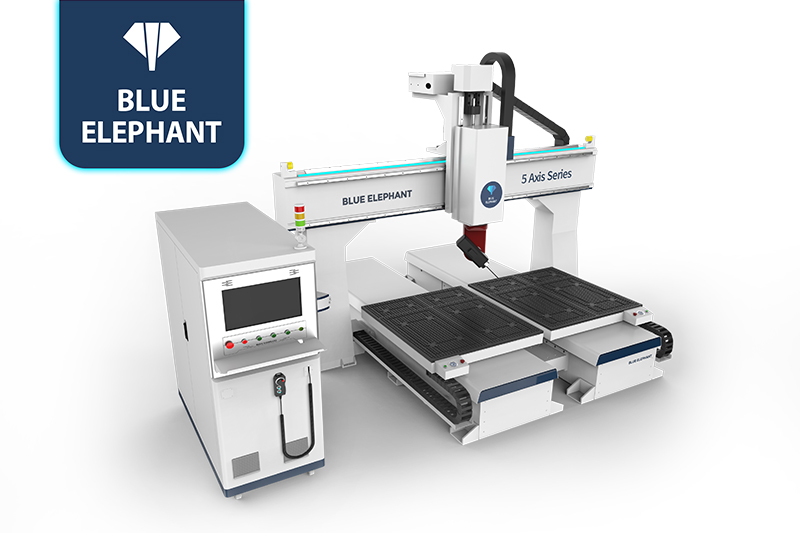

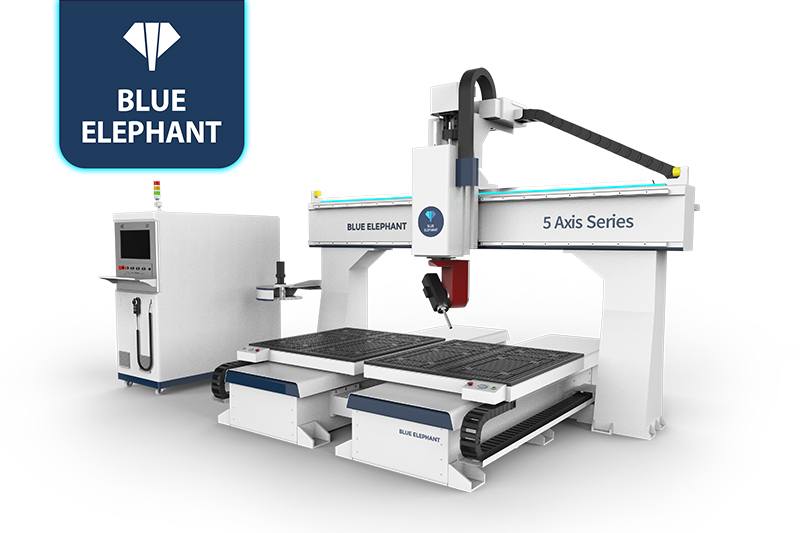

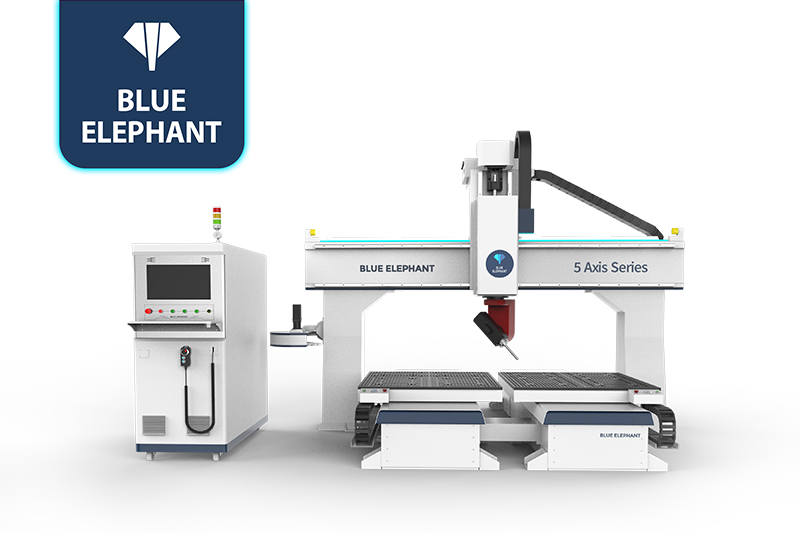

Buy Double Table 5 Axis CNC Machining Center for Price

☆This is a high end and upgrade 5 axis CNC router machine with two worktables. It can reduce non-productive time and improve work efficiency.

CNC Router Machines Video

features

  • All components are from international famous brands, which will prolong the machine service life and ensure good processing effetcs.
  • Two movable worktables can realize processing and loading & unloading at the same time, which greatly improves work efficiency.
  • With a carousel tool magazine, it can extend the processes and increase work efficiency.

Parameters

Model 1200×1200-2-850 5 axis machine
X,Y axis travel 1200X1200mm
Z axis travel 850mm
Spindle type 10KW  Italy Hiteco TILT-JQS-02
Inverter type 15kw Taiwan Delta inverter
Drilling bank Taiwan or Italy 5+4 vertical drills
Tool magazine Carousel tool changer with 8pcs magazine
Tool holder with collet 8 pcs HSK F63 tool holder
Control system Syntec 610-E5 5 axis control system with RTCP functions
Driving system X,Y,Z axis 1.8kw Japan Yaskawa servo motors
A,C axis: 750W Japan Yaskawa servo motors
Reducer Japan Shimpo VRB-115C-10-K3-1.8KW
Machine structure Heavy duty body with quenching treatment
Work table Removable working table
T-slot working table with PVC protection
Positioning cylinder 5 pieces (X2, Y3)
Linear guide X axis: Taiwan 30# Linear guide, 2 sets
Y axis: Taiwan 30# Linear guide, 4 sets
Z axis: Taiwan 30# Linear guide,1 sets
Transmission X axis:Taiwan Linear Grinding grade racks M2-1000, 4 sets
Y axis:Taiwan TBI Grinding grade screw, 4040-3100, 1set
Z axis:Taiwan TBI Grinding grade screw, 3210-1300, 1set
Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Powermill software
Command language G Code
Traveling speed 80m/min
Working speed 0-60m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 380V 3PH 50HZ/ 60HZ

Application

5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove.
In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.
