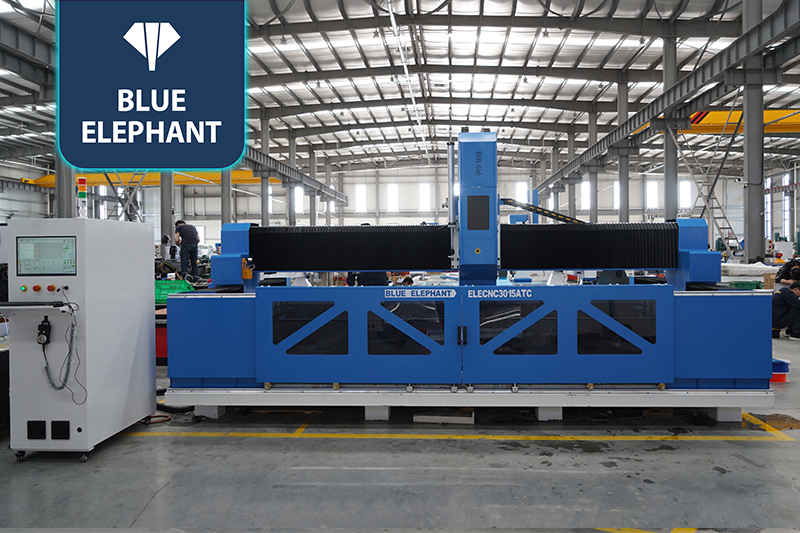

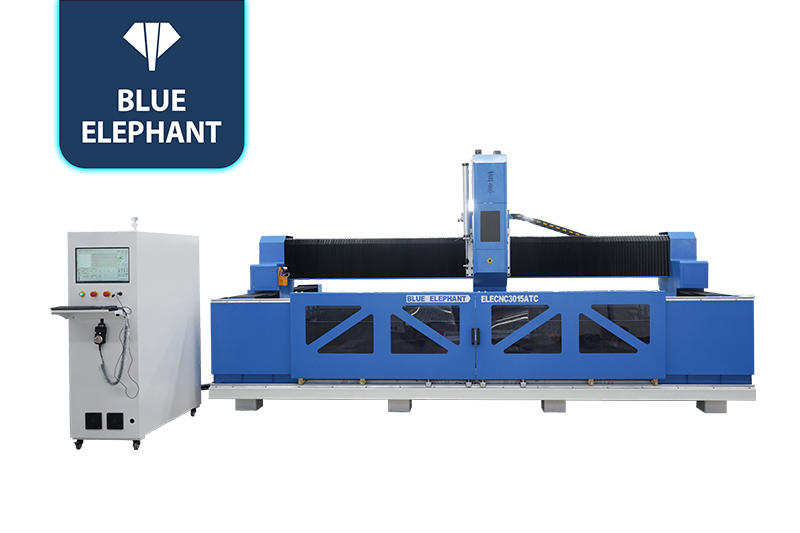

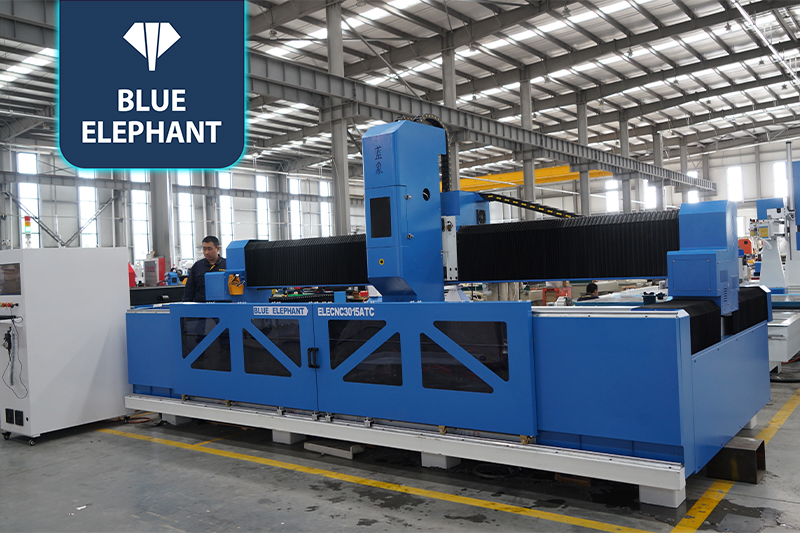

Economical ATC Quartz Stone Countertop Machining Center Sold to Italy and USA

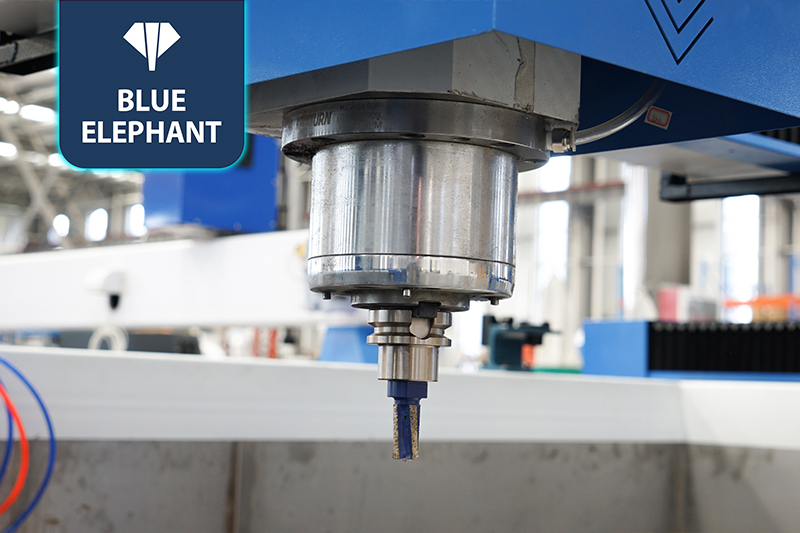

Adopt Kenturn mechanical spindle, low speed and high torque. Equipped with a water jet spindle, it is ideal for stone processing. Hard phenolic board countertops have the characteristics of high strength, strong adsorption, chemical resistance, impact resistance, wear resistance, easy cleaning, fire prevention, heat resistance, and smoke prevention.
Stone Engraving Machines Video
Parameters
| Working area | 3000x1500x400mm |
| Spindle | KCA1410P-CTS spindle |
| Spindle speed | 10000RPM |
| Tool magazine | Linear tool magazine with 12 tools |
| Control system | NC60A control system for stone machine |
| Motor and driver | Japan YASKAWA servo motor, 7.5kw CTB servo motor for spindle |
| Working Table | Phenolic board hard table, equipped with 8 suction cups |
| Tool holder | BT40 tool holder |
| Reducer | Japan Shimpo reducer/ |
| Lubrication system | Automatic lubrication |
| Voltage | 380V, 50Hz, 3 phase |
| X,Y,Z Transmission | Helical rack gears transmission on X, Y axis, Taiwan TBI ball screw transmission on Z axis |
| X,Y,Z Rail | Taiwan PMI linear guide rails, #35 for Y axis, #30 for XZ axis |
Application
Stone CNC engraving machine is mainly designed for line carving, 2D plane carving, 3D relief, shadow carving and other stone processing. It can process marble, granite, crystal, tombstone, agate, ceramics, plastic and other materials. Widely used in processing marble and granite kitchen countertops, bathroom countertops, wash basins, tables, floor drains and other bathroom industries.
