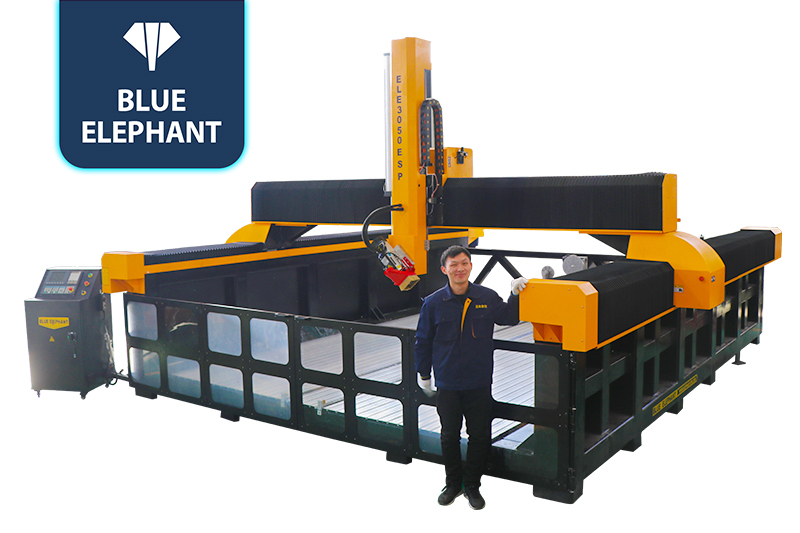

Affordable Price to Buy 3050 EPS CNC Foam Engraving Machine
☆Equipped with a linear tool magazine and a four-axis spindle, the machining efficiency is higher.
CNC Router Machines Video
features
- The heavy-duty 5-8mm steel welded machine structure can ensure very good stability during processing and prolong machine life.
- All machine configurations can be customized.
- The Z axis is significantly higher, especially suitable for the mold industry.
Parameters
| Description | Parameter |
| Serial Number | S20200119M |
| X,Y,Z Working Area | 3000x5000x1100mm |
| Frame | Heavy Duty 5-8 mm Steel welded, 5 axis CNC machine center milling the steel bed in smooth |
| Y Structure | Helical rack gears for X, Y axis |
| X,Z Structure | Taiwan TBI ball screw for Z axis |
| Spindle Power | 9KW HQD Original Air cooling spindle |
| Spindle Speed | 6000-18000rpm/min. |
| Drive Motors | 1.5KW Japan Fuji Servo Motor with its driver |
| Working Voltage | AC380V/50Hz,3PH (Option: 220V)) |
| Inverter | 11KW Fuling Inverter |
| Linear rails | Taiwan PMI Square linear rails |
| Operating System | Taiwan 6MB Control System |
| Lubrication system | Automatically lubrication system |
| Computer Interface | USB |
Application
Mold industry: It can be used in the precision production of various cast wood molds, and can also be used in the research and development and production of automotive interior and exhibition decoration materials.
Casting and sculpture industry: processing and engraving of various casting craft products, exhibition decoration materials, and GRG decoration materials. Building decoration industry: processing and production of building decoration materials such as GRG and GRC.

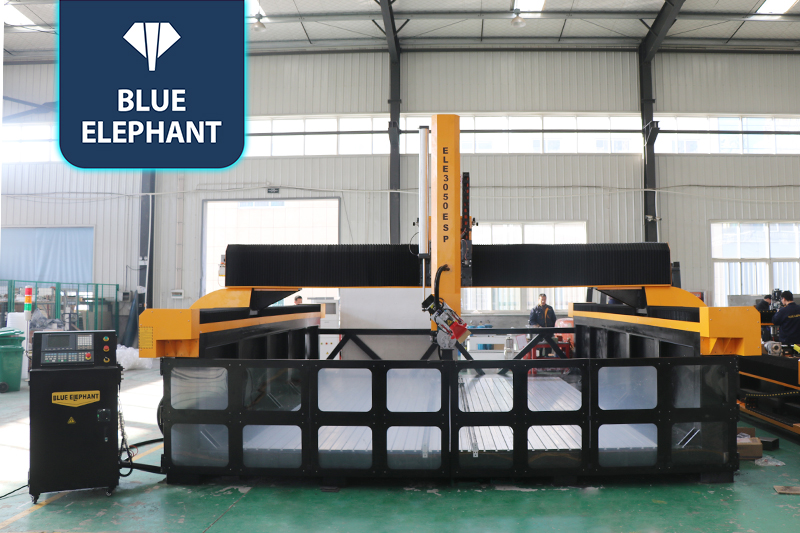

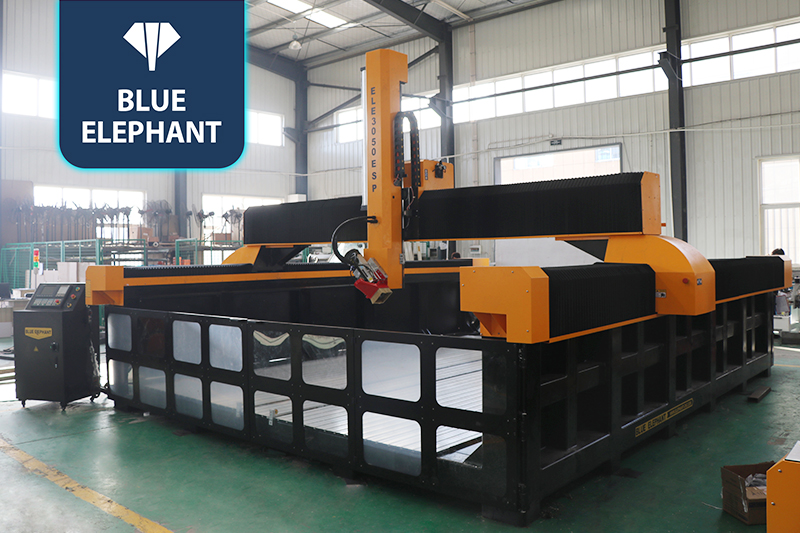

Production Facility
Quality Control & Testing
