Affordable 3015 ATC 4 Axis CNC Machine for Sale at Great Price

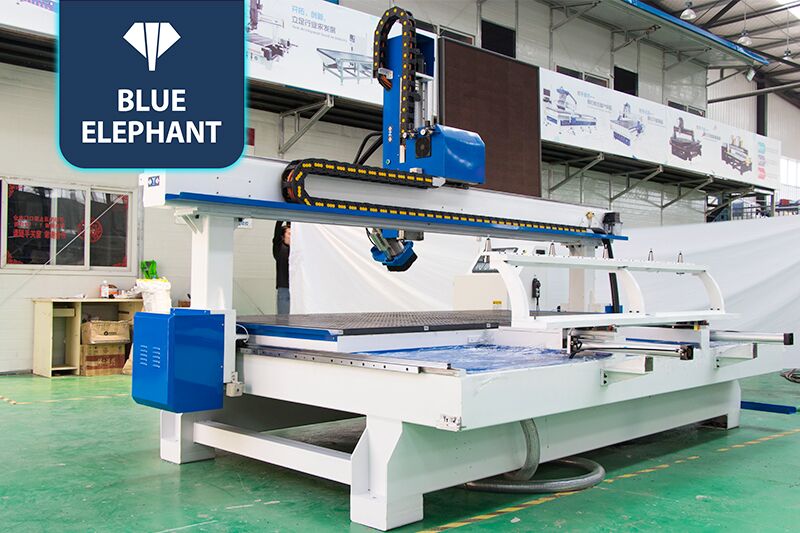

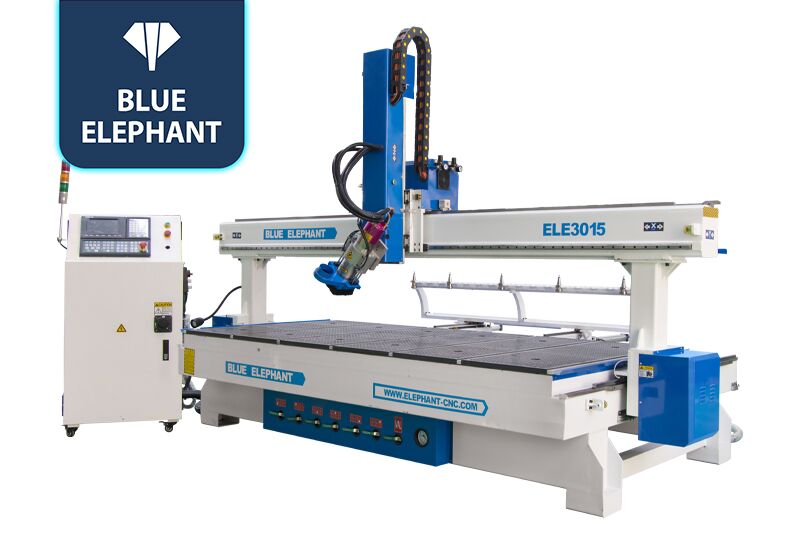

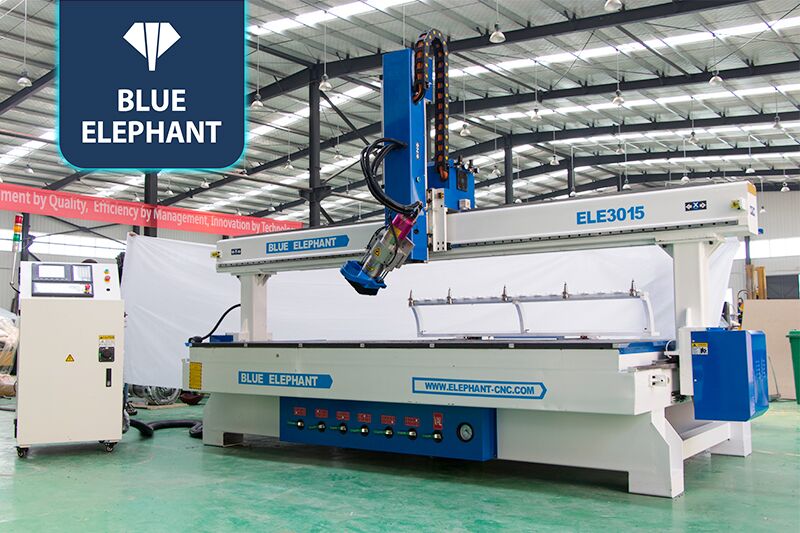

☆The machine is a custom ATC 4-axis CNC woodworking mill with long X-axis travel. 3D workpieces can be machined efficiently and accurately. The automatic tool change function greatly reduces the non-production time and improves the processing efficiency.
4 Axis CNC Router Machines Video
Features
- The customized 3000x1500mm worktable size can meet the X-axis long stroke requirements of most customers.
- Helical racks, guide rails, and ball screws are all brand-name products to ensure the smooth operation of the machine.
- It is equipped with vacuum and T-slot table with strong adsorption force, so that the workpiece can be firmly fixed on the table during work.
Parameters
| Description | Parameter |
| X,Y,Z Working Area | 3000x1500x400mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| Table Surface | Vacuum&T-slot Table |
| Frame | Welded Structure,heavy duty T-structure |
| X, Y Structure | Helical Rack gear, Abba 25# Linear Square Guide |
| Z Structure | Taiwan TBI Ball Screw, Abba 25# Linear Square Guide |
| Lubrication system | Automatic |
| Vacuum pump | 11kw water circlulation vacuum pump |
| Tool slots | 16 |
| Spindle Power | 5.5kw Changsheng HQD ATC water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Japan YASKAWA |
| Working Voltage | 220V,3phase,60HZ(option 380V, 3phase, 50HZ) |
| Control System | Taiwan SYNTEC |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 – 45 Centigrade |
Application

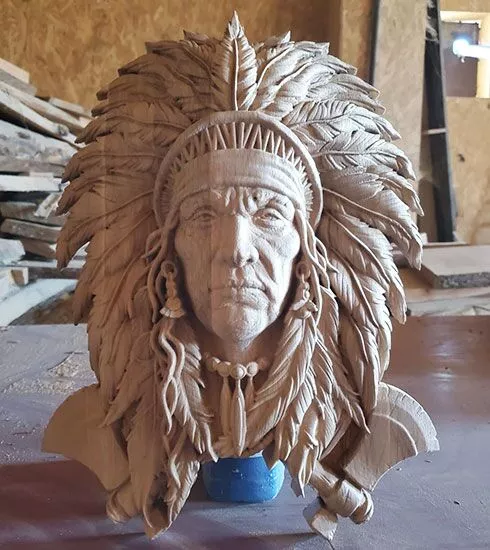

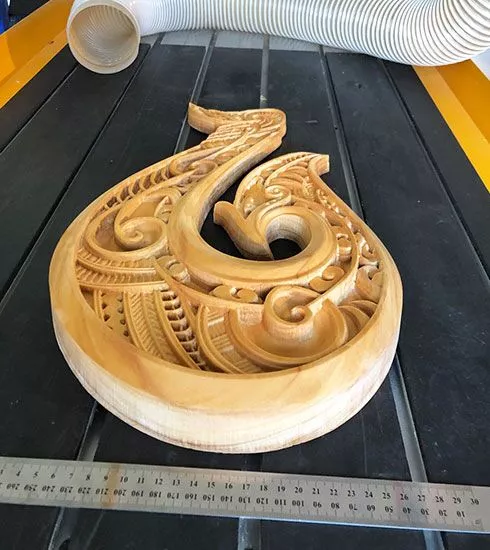

4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.
