Buy Intelligent Computer Beam Saw

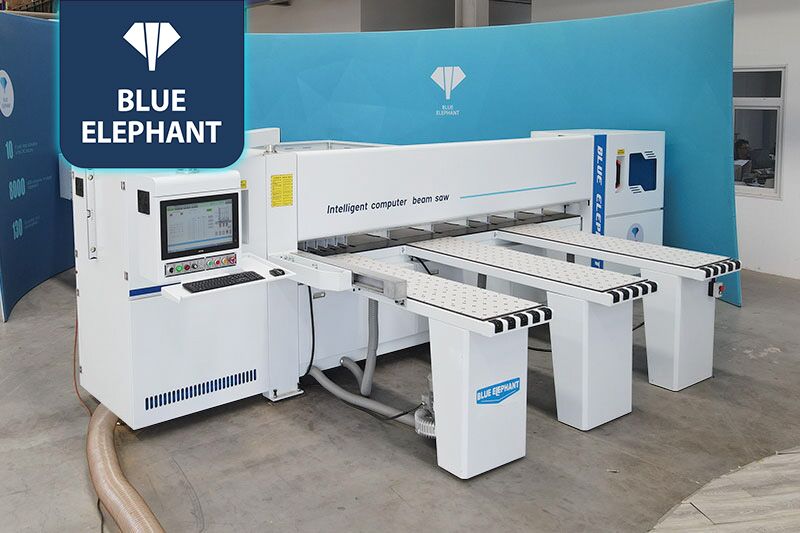

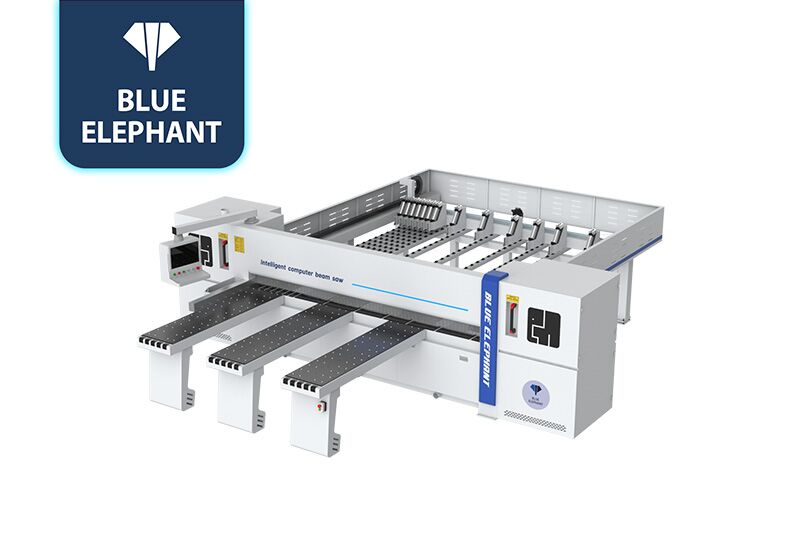

☆Computer beam saw is a computer-controlled wooden panel cutting machinery. It can cut the wooden panels with high efficiency and excellent accuracy. And the cutting thickness can reach up to 100mm.

Panel Saw Machines Video

Features

  • Equipped with a warning device, it has the function of automatic fault detection.
  • Uses Fatek PLC, which has stable mass storage and high-speed processing ability.

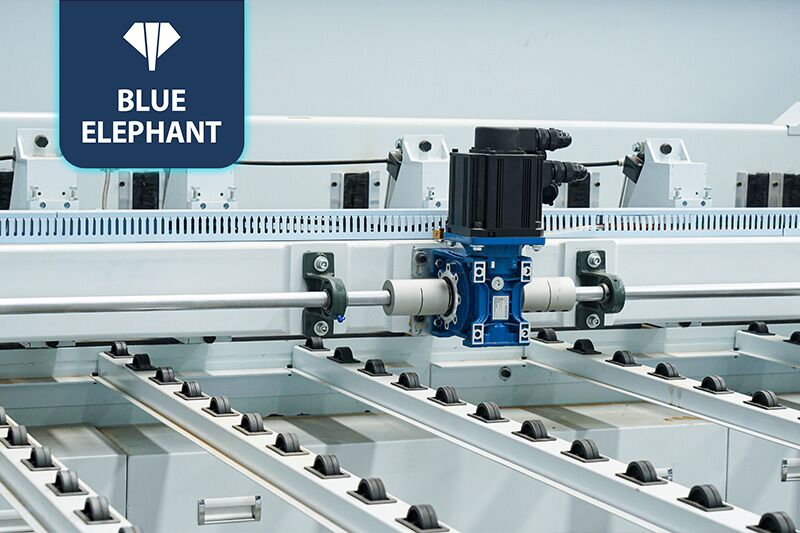

  • Adopts INVT servo motor, it runs control demand fast and precisely to guarantee efficient cutting.

Parameters

Model ELECNC-280
Overall dimension 5400x5300x1800mm
Cutting length 2700mm
Cutting thickness 100mm
Main saw blade diameter 350mm
Main saw blade revolving speed 4800rpm
Groove saw blade diameter 180mm
Groove saw blade revolving speed 6900rpm
Forward speed of carriage 100m/min
Backward speed of carriage 150m/min
Main saw motor 15kW
Groove saw motor 2.2kW
Auto feeding motor 2.0kW (AC, servo)
High-press ventilating motor 3kW
Total power 23kW
Auto feeding speed 100m/min
Air pressure 5-7kg/cm2
Platform height 950mm
Control switch Schneider
PLC Fatek
Converter Invt
Screen Jikowi
Contactor Schneider
Pneumatic elements Hengtong
Solenoid valve AirTac
Motor Igarashi
Servo control system Invt
Linear guide rail SLM

Application

Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels. The cutting surface is smooth without any burrs, and also has excellent precision. Computer beam saws are widely used in making various wooden furniture.
