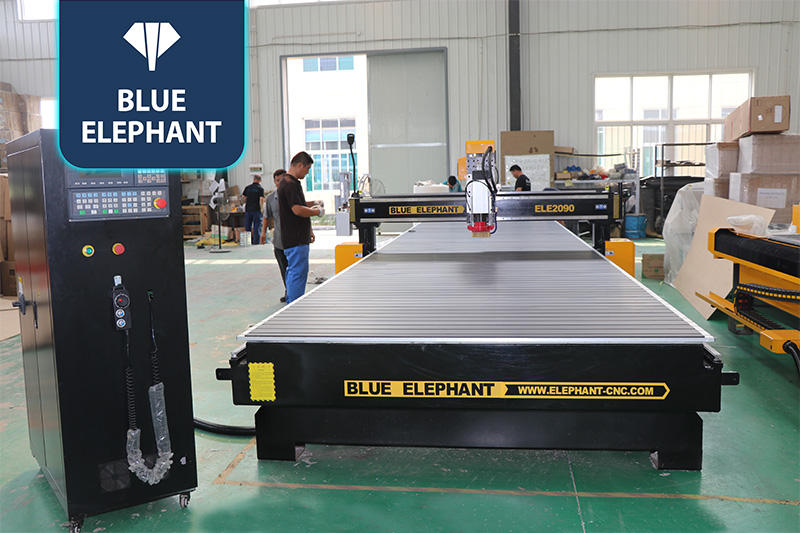

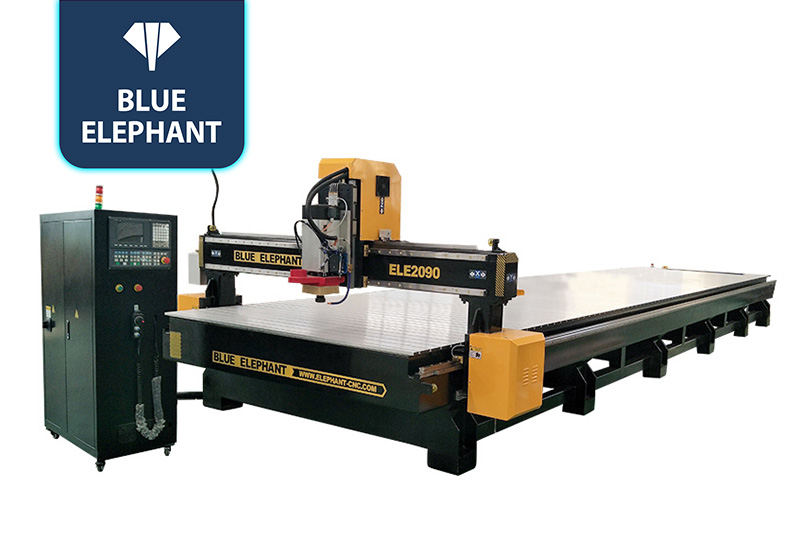

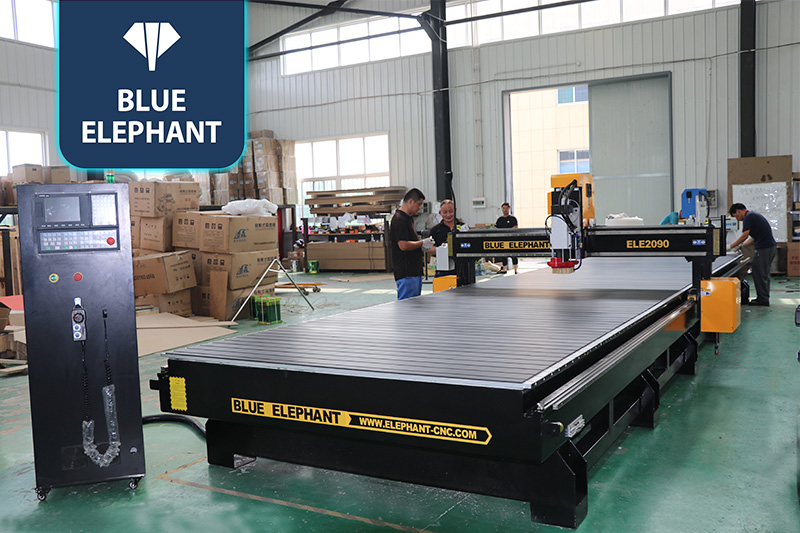

Large 2090 CNC Woodworking Machine for Sale in Canada and Europe at an Affordable Price
☆This machine is a super large 3-axis CNC engraving machine with a working table of 2000*9000mm. It is a tailor-made machine for our customers in the marine industry.
CNC Router Machines Video
FEATURES
- Adopt German high-end LROSA linear square guide rail, with higher precision and faster speed.

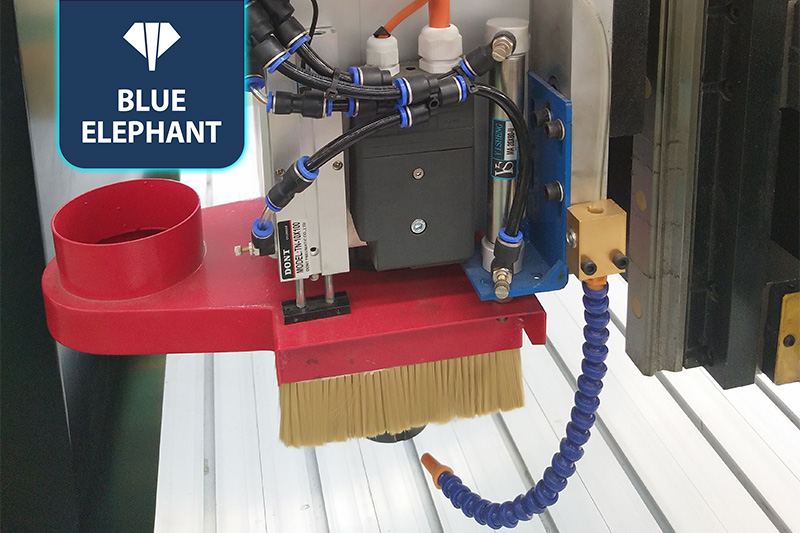

- The excellent 13.5kw HSD air-cooled spindle can provide powerful working power when cutting and engraving non-metal or soft metal.
- Adopt automatic oil mist cooling system, suitable for aluminum processing.
Parameters
| Model | ELECNC-2090 |
| Working Area | 2000*9000*200mm |
| Working Voltage | 380V,3Phase,50Hz (Option) |
| Control System | Taiwan SYNTEC 6MB Control System with handle |
| Spindle | 13.5kw HSD Brand Air cooling spindle, manual tool change spindle |
| Spindle Speed | 0-24000rpm |
| Inverter | 15KW Taiwan DELTA Inverter |
| Motor & Driver | Japan FUJI 1.5kw servo motor and drive |
| Table Surface | T-slot with PVC covered |
| Lubrication System | Auto Lubrication System |
| Gantry Structure | Gantry Moving |
| Option | Automatic Oil Mist Cooling |
| Frame | New Type Heavy Duty Body |
| X,Y axis | Helical rack and LROSA Linear Square Guide rail |
| Z axis | TBI Ball screw transmission and LROSA Linear Square Guide rail for 3 axis |
| Dust Collection System | 5.5KW New Type Double Bag Dust Collection System |
| Tool Sensor | Auto Tool Sensor Calibration |
| Wire | High Soft Shield with Copper Wire to Protect Against Static Electricity |
Application
CNC Routers for wood working have wide applications in not only the wood working field but also the following industries: advertising, crafts, artworks, molding, electronics, construction, printing and packaging, decoration, tombstone, crystal products, etc. The most common purpose of the CNC wood cutting machine is to make panel furniture. For example, cabinets, cabinet doors, doors, office desks, etc.
Production Facility
Quality Control & Testing
