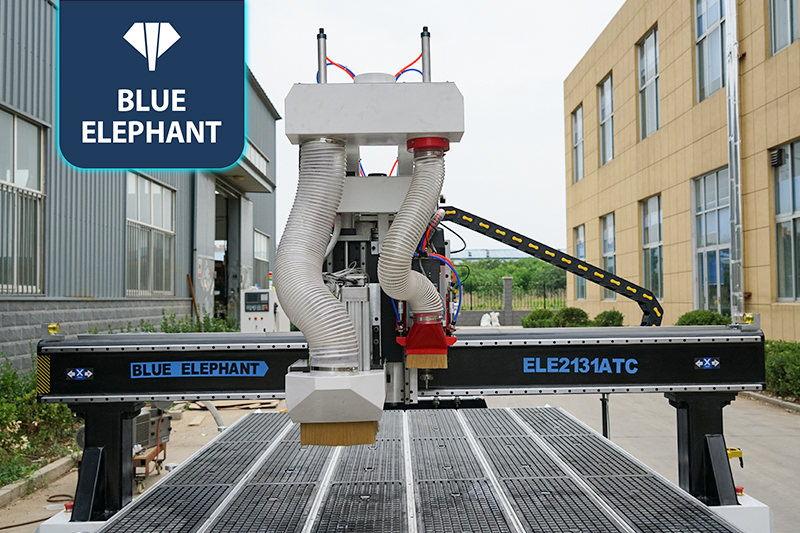

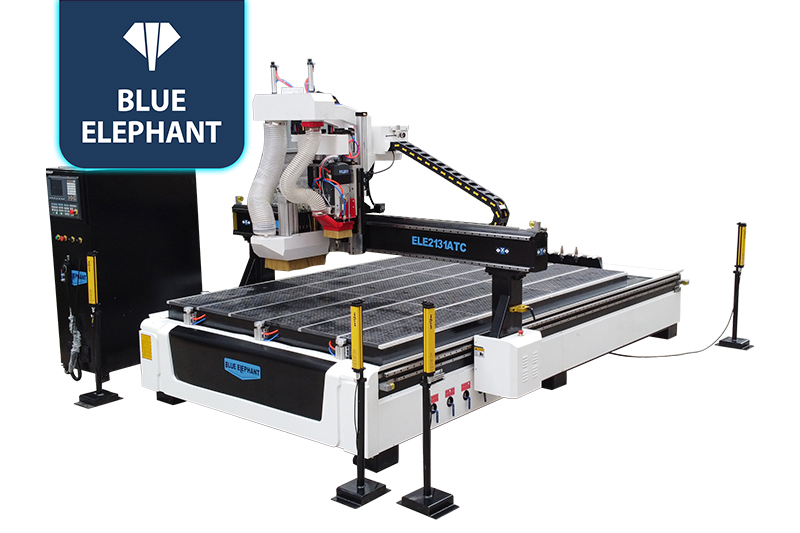

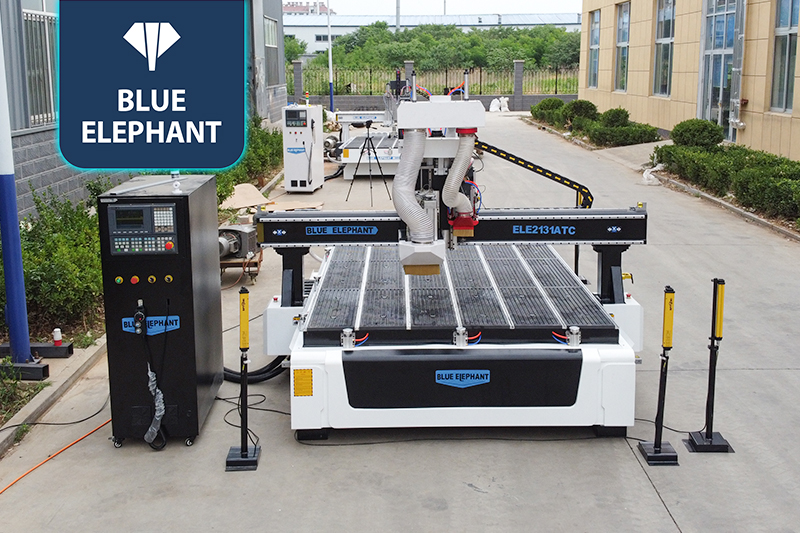

2022 Newest Linear ATC CNC Router is Welcomed by American Furniture Factory
☆The reason why this is an efficient woodworking machine is that a variety of tools support linear tool change, which improves processing efficiency and is suitable for processing complex workpieces.
Digital Cutting Machines Video
- To increase the vertical drilling work efficiency in operation this CNC milling machine is equipped with a drill group.
- HIWIN linear square guide rail has large load capacity and long service life. With light curtain protection to ensure safety.
- In order to make the machine processing more stable, the Xinbao reducer is used to increase the torque.
Parameters
| Model | ELE-2131ATC |
| Working area | 2100*3100*300mm |

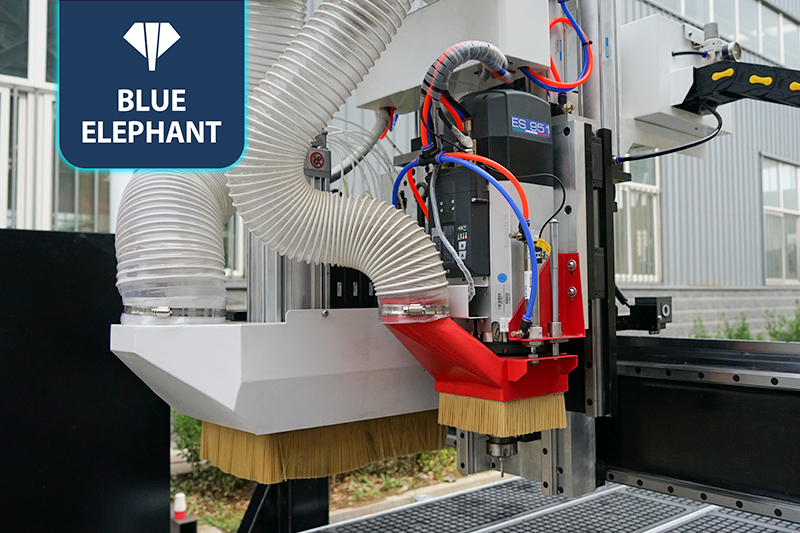

| Spindle | 9.6KW HSD Italy original ATC air cooling spindle |
| Tool magazine | 8pcs linear tool magazines with 8pcs ISO 30 tool holders |
| Control system | Syntec control system |
| Motor and driver | 1000W YASKAWA servo driver and 850W servo motor |
| Lubrication system | Auto Lubrication |
| Cooling system | 5KW air cooling vacuum pump, 2pcs |
| Vacuum system | 2pcs Pop-up pins on X-axes, 3pcs on Y-axes |
| Tool sensor | Auto tool sensor |
| Others | Light curtain on X and Y-axes |
Application
The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, it can process various wood, plastics, acrylic, soft metals and composites. Besides, the oscillating cutter can cut various carbon fiber, leather, PVC, glass fiber, fiber cotton, prepreg cloth, aramide fiber, ceramic fiber, XPE material, silk coil, silica gel, rubber, acrylic, KT board and other flexible materials.
