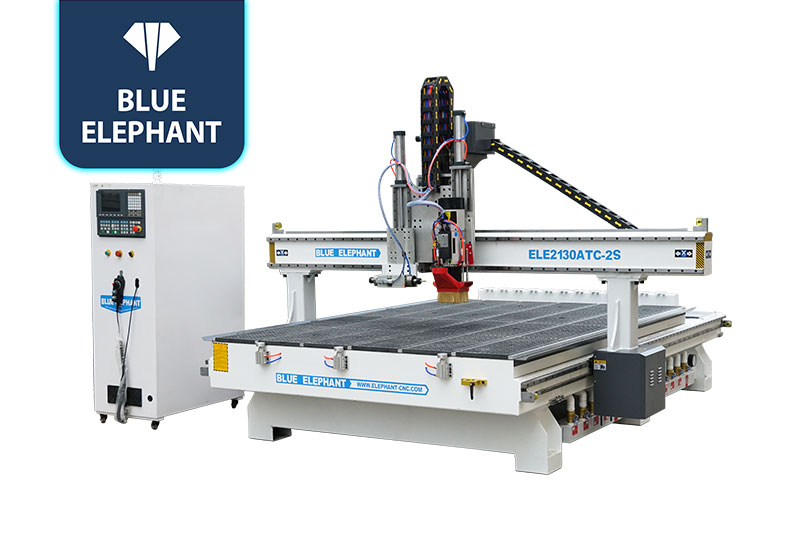

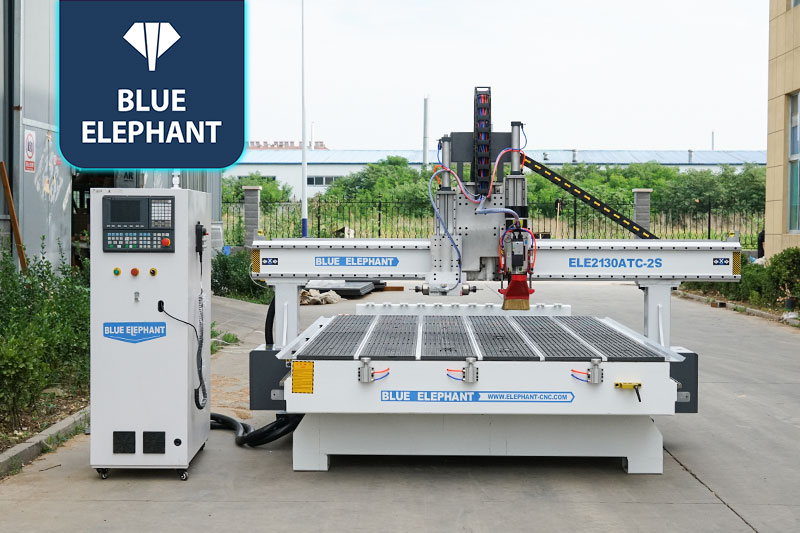

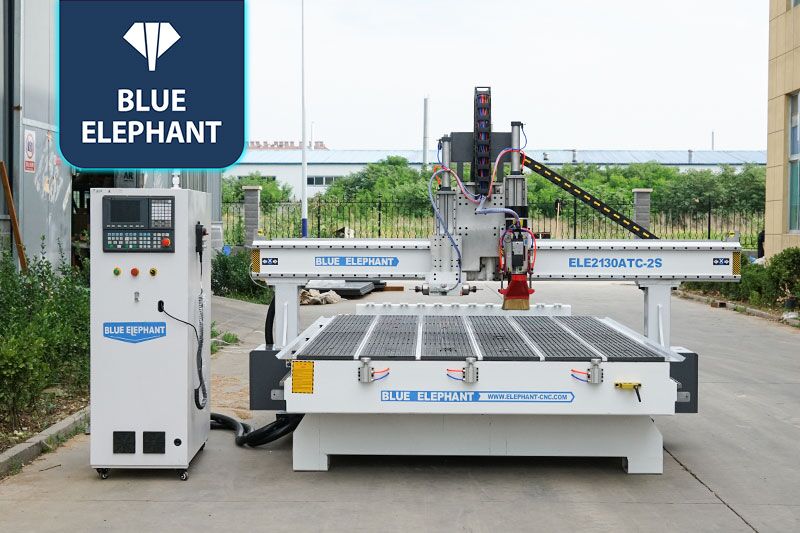

Large 2130 Double Head ATC CNC Router for Sale
☆This is an automatic tool change engraving machine with two spindles. It is suitable for occasions with large production volume and high processing precision requirements. Suitable for complex machining.
CNC Router Machines Video
features
- This machine has the advantages of fast speed, high production efficiency and good processing quality.
- Equipped with an 8-tool linear tool magazine, it can automatically and quickly change different tools to achieve different cutting and engraving, which greatly improves the processing efficiency.
- More complex CNC projects can be machined.
Parameters
| Model | ELECNC2130 ATC |
| X,Y axis travel | 2100x3000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm,500mm, 600mm, etc |

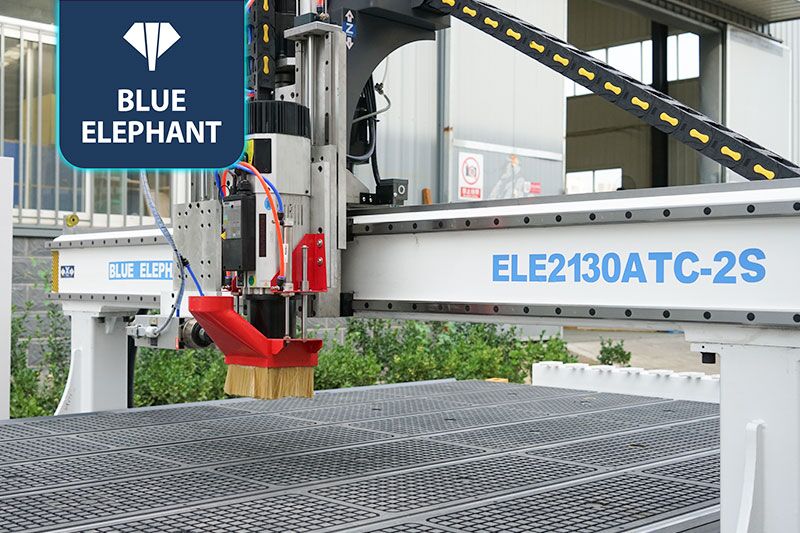

| Spindle type | 9kw HQD air cooling spindle 3.5kw changsheng air cooling spindlein horizontal |
| Inverter type | 11kw Fuling inverter |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer 8pcs Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec 60WE controller, option：LNC MW2200 |
| Driving system | 850W Japan Yaskawa Servo Motor & driver |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |

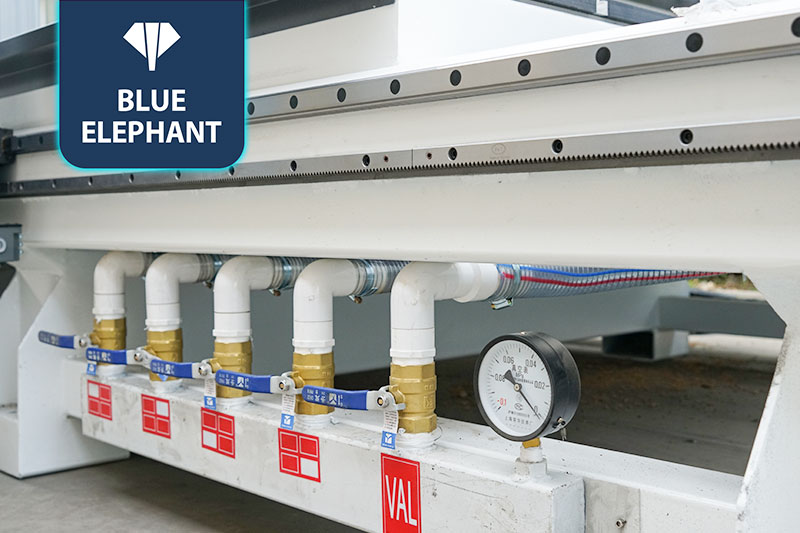

| Work table | T-slot & vacuum work table option：aluminum working table |
| Positioning cylinder | 7 pieces (X3, Y4) |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool sensor | Automatic tool setting |
| Cables | Germany Igus cables with CE certificate |
| Compatible software | Artcam, Aspire software |
| Command language | G Code |
| Traveling speed | 30m/min |
| Working speed | 0-10m/min |
| Re-positioning accuracy | ±0.01mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.1mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application

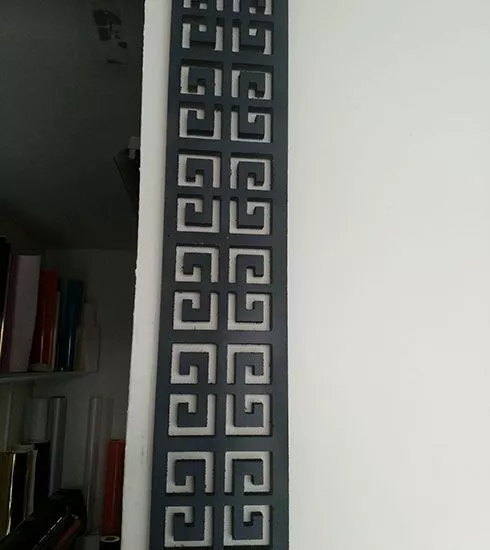

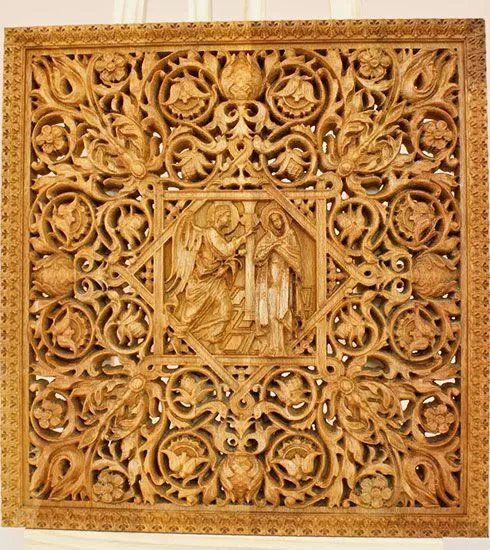

Main application: process 3D wave boards, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, craft window, art embossed screens,embossed craft gifts, solid wood art murals, woodwork calligraphy carving, art photo frames, electrical countertops, sports equipment, violin arcs, non-ferrous metal carving and cutting. Widely used in antique furniture, European-style furniture and other furniture industries.
