1530-2S Woodworking CNC Machine Tool Australia, USA Price
☆The multi-head engraving machine with heavy-duty body, which is specially designed for processing large workpieces, is deeply loved by consumers.
CNC Router Machines Video
features

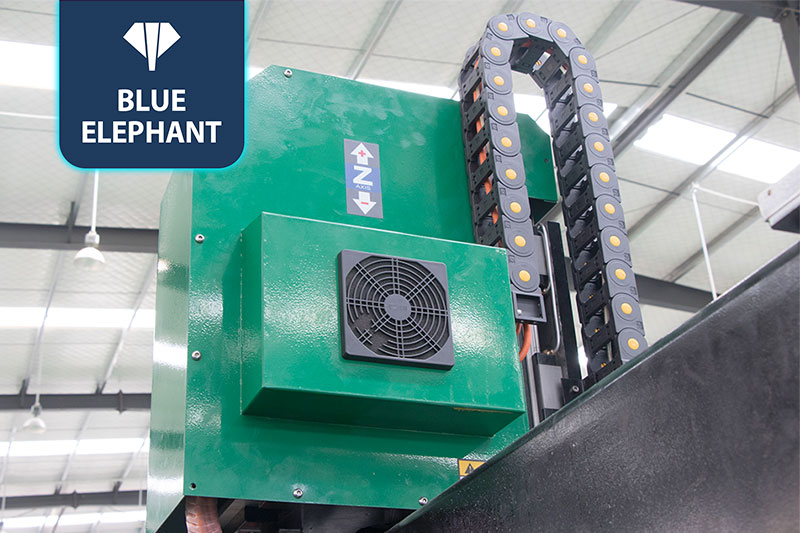

- Two 3.5kw air-cooled spindles can work at the same time, which greatly improves the processing efficiency and saves the time required for processing.
- The machine is equipped with SHIMPO reducer, Taiwan TBI ball screw, Yaskawa servo motor and driver, etc., with higher machine quality and better stability.
- Machine working area and configuration customization.
Parameters
| Model | ELECNC1530-2S |
| X,Y axis travel | 1500x3000mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 2×3.5kw air cooling spindle, ER20 |
| Inverter type | 3.7kw |
| Rotary device | Option |
| Tool magazine | No tool magazine Option: linear or carousel type auto tool changer |
| Tool holder with collet | ER20 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec 6MB |
| Driving system | 850w Japan Yaskawa servo motor and drivers |
| Reducer | Option: Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | No work table, customized for customer |
| Positioning cylinder | Optional: 7 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application

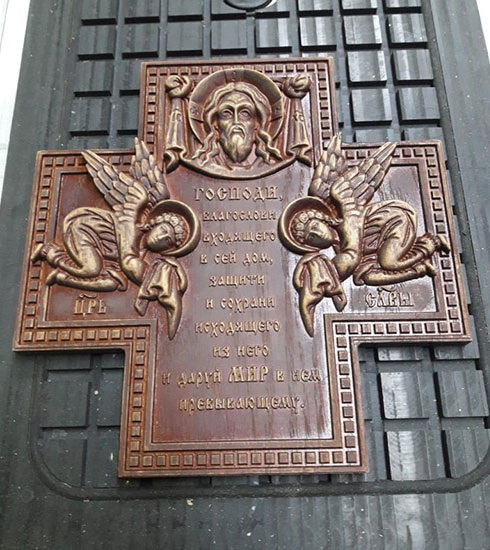

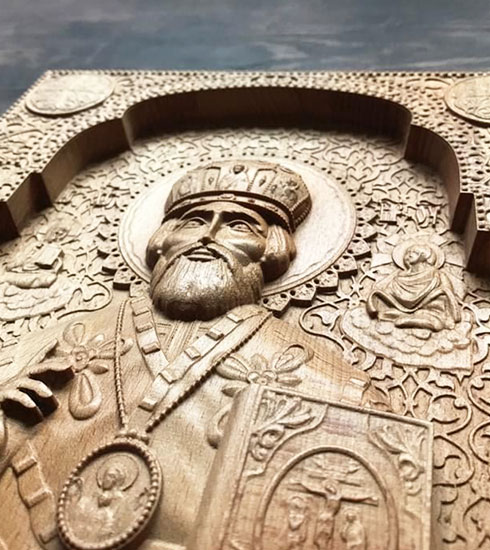

Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, couches, stools, benches, beds, desks, night stands, bunks, cupboard, tea boards.
Decoration industry: door frames, handrails, building columns, pillars, table legs, chair legs, photo frames, mirror frames, screens, lights, holiday decorations.
Craft industry: artworks, gifts, souvenirs, clock frames, stamps, badges, medals, trophies, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Mold industry: wood mold, foam mold and metal mold. Musical instrument industry: 3D surface carving, shape cutting, guitar, bass, violin, viola, violoncello, erhu, and other string instrument.
Other: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers.
