2036 Upgraded 6-Axis CNC Milling Machine
☆This is an upgraded six-axis woodworking router. And six spindles can work at the same time, which greatly improves the production efficiency. It is an ideal choice for large production enterprises.
CNC Router Machines Video
features
- This machine is ideal for large production companies.

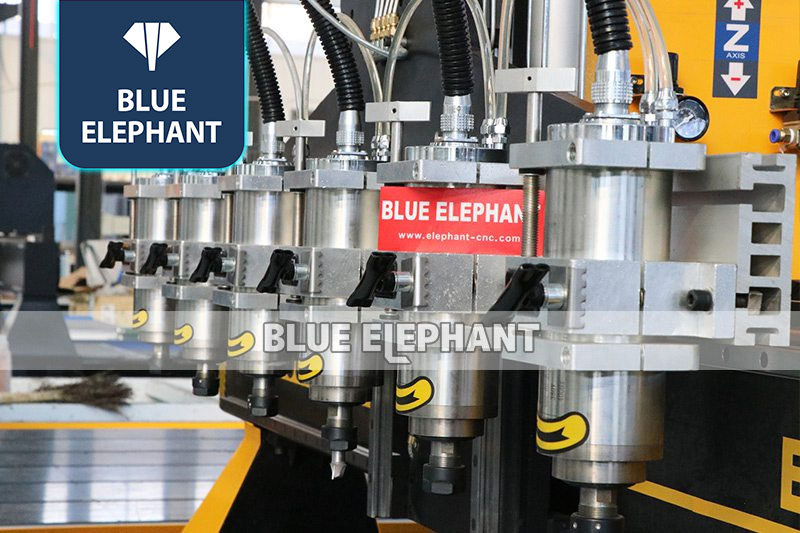

- The machine is equipped with six 2.2kw water-cooled spindles and 6 spindle fixtures to ensure higher processing efficiency.
Parameters
| Descriptions | Parameters |
| Product name | 2036 one head with six spindles cnc router |
| Modle | ELE2036/6S |
| Working area | 2000*3600*200mm |
| Control system | NC PM95A control system with computer control box |
| Spindle | 6 sets 2.2kw water cooling spindle with 6 pieces spindle clamp |
| Spindle speed | 0-24000RPM |
| Inverter | 6 sets 2.2kw fuling inverter |
| Motor and driver | FL 118 stepper motor and YAKO 2811 bigger and stronger driver |
| Voltage | 380V, 3ph, 50Hz |
| Linear rail | Sweden ABBA #25 linear guide for all axis |
| Table structure | New type thicker and bigger heavy duty welded frame and gantry |
| Table surface | T-slot work table,1400mm length |
| X,Y axis transmission | Helical rack and pinion drive for X,Y axis |
| Z axis transmission | Taiwan TBI 2510 ball screw for z axis |
| lubrication system | Manual lubrication system |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations, carved photos
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers
