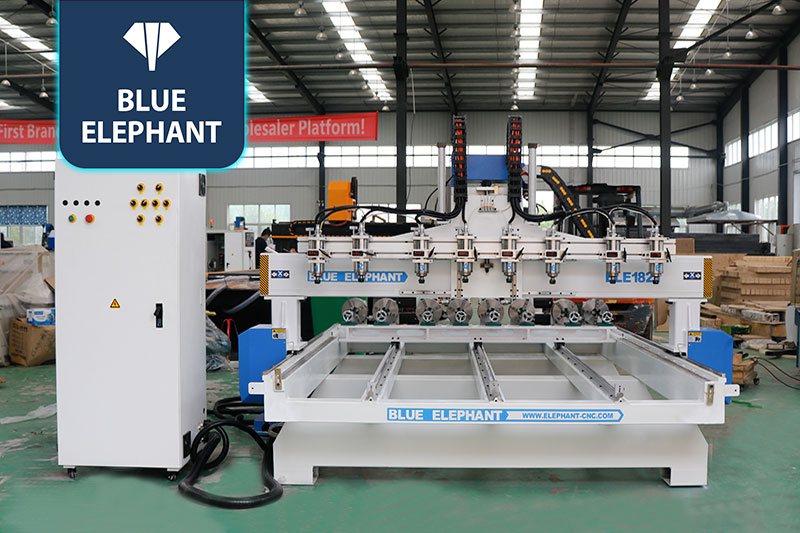

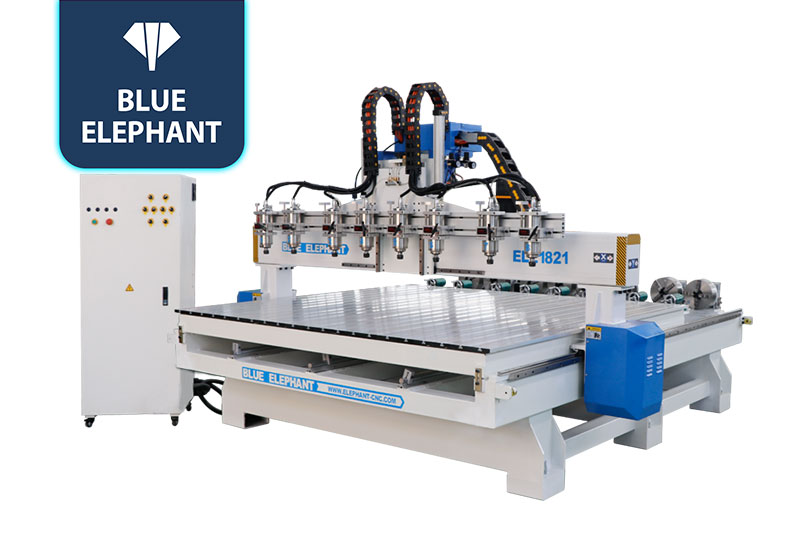

Affordable 1821 Multi-Axis CNC Woodworking Machine Sold to North America
☆The machine is equipped with 8 spindles, which can work at the same time, which greatly improves work efficiency. The number of spindles can be increased to increase efficiency.
CNC Router Machines Video
features

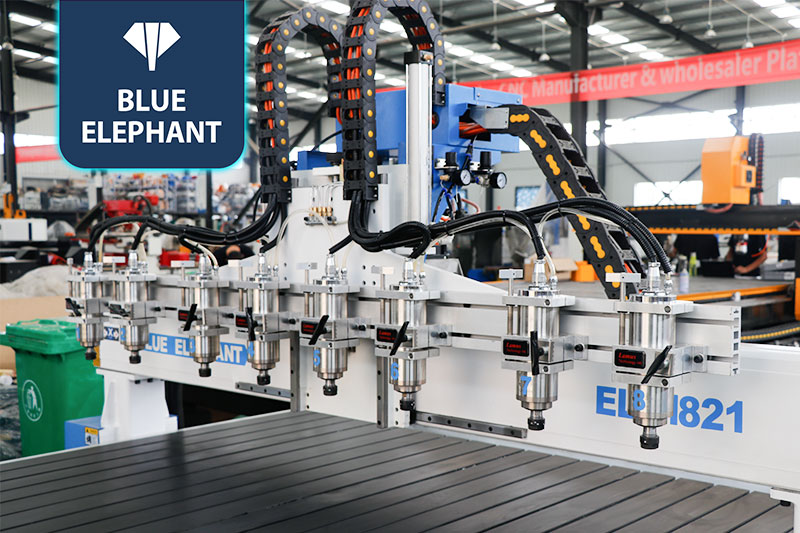

- Eight 2.2kw water-cooled spindles can work at the same time, better process mass production, and process more complex workpieces.
- Efficient workspaces are available in a variety of models.
- The number of spindles can be increased to increase efficiency.
Parameters
| Model | ELECNC1821 |
| X,Y axis travel | 1820*2100mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 8 pieces 2.2kw water cooling spindle |
| Inverter type | 8 pieces 2.2kw fuling inverter |
| Tool holder with collet | ER20 collet |
| Control system | Ncstudio DSP B18, option: Taiwan SYNTEC /LNC |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor. option: Taiwan SYNTEC, Leadshine servo |
| Reducer | Japan SHIMPO reducer |
| Rotary device | 8 pieces 200mm diameter rotary devices |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Removable aluminum T-slot work table |
| Positioning cylinder | Without |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | No need |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands.
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations.
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers.
