Best Non-porous Process Cabinet Production Solution

Non-porous process machining center:

Introduction: The non-porous process machining center is mainly used for the production of panel furniture. It can not only make slots for installing various invisible connections, but also process installation positions for common furniture two-in-one or three-in-one connections. It is able to drill holes, make slots and cut materials rapidly.

Features:

• It is equipped with high power tool change spindle, large capacity servo tool magazine and dedicated sawing and milling slotting device, suitable for diversified and complex product processing or diverse processing processes.
• The overall vacuum absorption table (7 zones) has high adsorption force and avoids slide of panels during processing.
• The liner automatic tool changer with 12 tools saves tool changing time and ensures high efficiency.
• Wide range of uses: such as one-time blanking, drilling, cutting, chamfering, engraving, etc.; it is easy to operate, especially suitable for customized production needs.

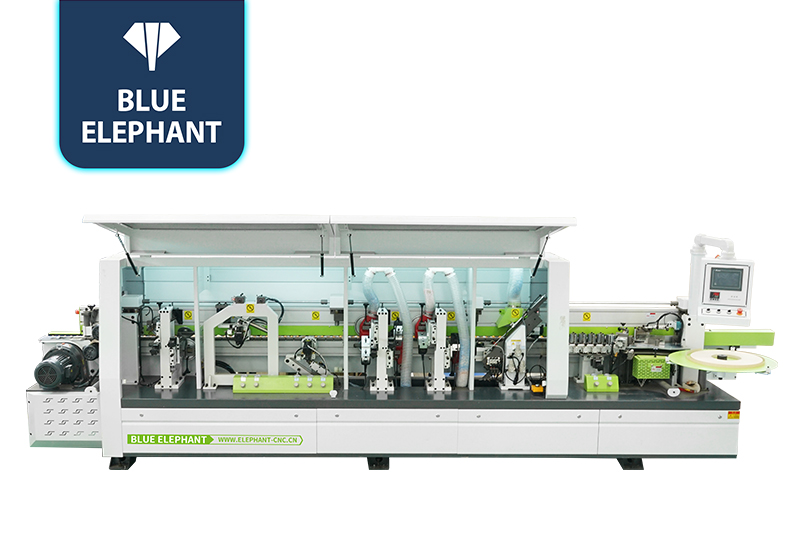

Edge banding machine:

Introduction: The edge banding machine is widely applied to panel furniture, customized furniture, cabinets, office furniture, wood furniture, tables & chairs, windows & doors, wood products and decorations. It is able to process a variety of panel materials, such as density fiberboard, ecological boards, composite boards, particle boards, plane wood boards, aluminum honeycomb panels etc.

Features:

• aligning head and end → rough trimming → fine trimming → edging → polishing.→Functions: gluing and pasting
• Gluing and pasting: the cylinder-controlled gluing switch (which adopts WSN cylinder and EASUN solenoid valve) ensures stable gluing amount and uniform thickness.
• Aligning head and end: it can cut the excess edge band at both ends of the sheet (WSM cylinder with 2 regulators and 1 pressure relief valve) for more stable air pressure and more stable flush end.
• Rough trimming: this machine can eliminate excess edge band with six-edge alloy plain cutter.
• Fine trimming: it is able to cut the excess edge band with six-edge R-shape cutter into round corners, gaining more beautiful appearance.
• Profiling tracking: the machine can trim the four corners to make them more smooth and not stinging, and the independently designed tracking action and airway design make the profiling more stable.
• Edging: the super-hard alloy R-shape cutter is able to slick the cracks on edge bands, making them more smooth.
• Polishing: the buffing wheel can polish the edges of the edge bands rapidly to make them more rounded and pretty.

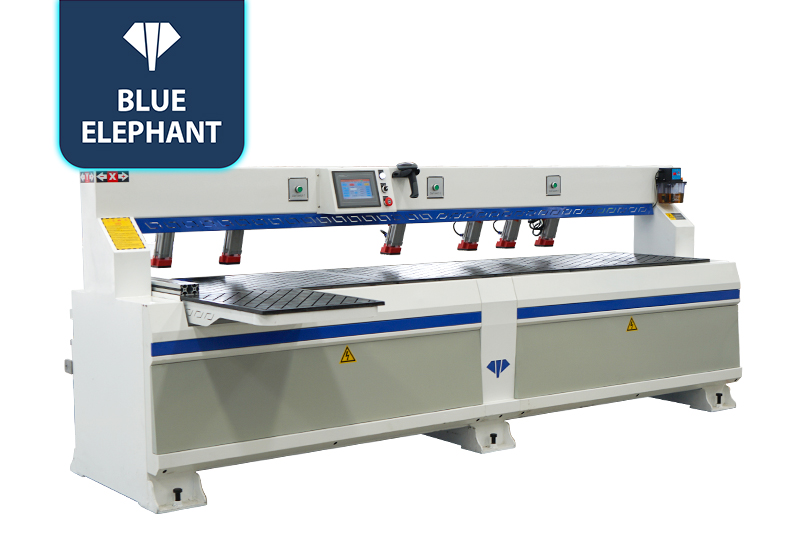

Saw blade side drilling machine:

Introduction: The saw blade side drilling machine is capable for the side drilling work of three-in-one side holes/wood pinholes/blind holes/fixed groove/straight slot/four invisible parts. It is designed and developed for panel furniture and cabinets, and applied to the design of various types of cabinets, wardrobes and panel furniture.

Features:

• The customized movement control system ensures good stability and high precision.
• The Banner laser sensor guarantees excellent accuracy.
• A customized limit switch is adopted to provide safety protection.
• It uses high power electronic spindle and diamond saw blade, with fast speed and high precision.

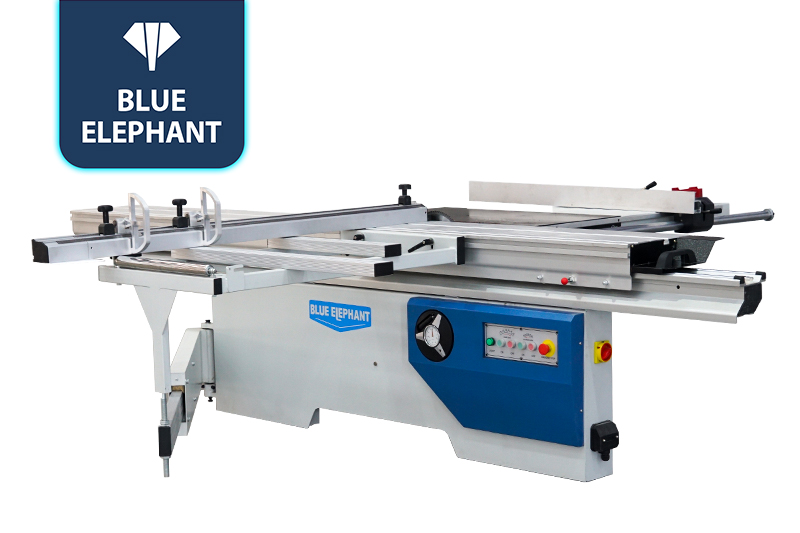

Precision saw:

Introduction: Precision saw is used for the longitudinal sectioning and cross-cutting work of various board materials, such as density fiberboard, particle boards, artificial boards, ABS boards, PVC boards, PMMA, solid wood panels and other panels with similar hardness.

Features:

• European guiding rule can avoid displacement and ensure precision of panel cutting.
• Movable worktable is made of extruded aluminum alloy with high strength and no deformation.
• Extended and enhanced machine body ensures the machine stability during working.

Curved and straight edge banding machine:

Introduction: The curved and straight edge banding machine is applicable for the banding work for straight and irregular edges of the panels.

Features:

• Flexible switching between curved and straight edge banding mode is allowed without interference and misoperation, which is accurate and convenient.
• With a limit switch, the machine can be shut down automatically.
• It is capable for processing such materials as: PVC, wood veneer, melamine, plastic etc.

Double-head hinge drill machine:

Introduction: This machine is mainly applied to the boring of furniture door hinges, such as cabinet doors, wardrobe doors, office and household furniture doors. It is able to adjust the boring position in both longitudinal and horizontal position in order to accommodate the boring requirements in a fast and convenient manner.

Features:

• The drill package design ensures small noise and durable use.
• A positioning baffle and an accurate scale are adopted, which can be adjusted based on work demands.
• Controlled by a foot switch, it is convenient and labor saving.
• Multiple functions, and it is adaptive to multiple types of drill heads.

Metal strip cutting machine:

Introduction: The metal strip cutting machine is mainly designed for new Chinese style door panel inlay, and it can cut metal strips off directly or cut continuously without breaking.

Features:

• One-touch start button switch.
• Foot pressing mode without hand pressing.
• Automatic pressing and cutting function.
• Save time, labor and cost.
• Precision alloy saw blade adopts hardening process, ensuring long service life.
• The saw teeth are isosceles and right-angled, and can cut accurately without error, and the saw blade is easy to replace.
• The extended pallet is convenient for continuous cutting and can be folded and disassembled easily.
