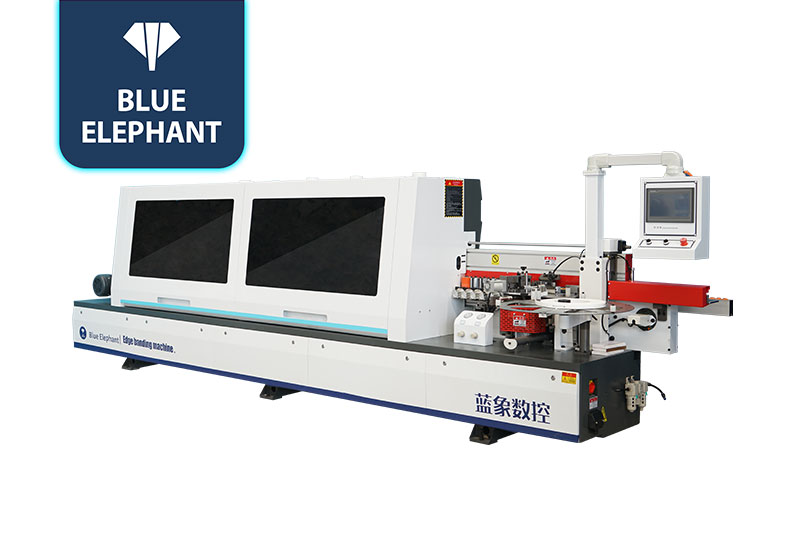

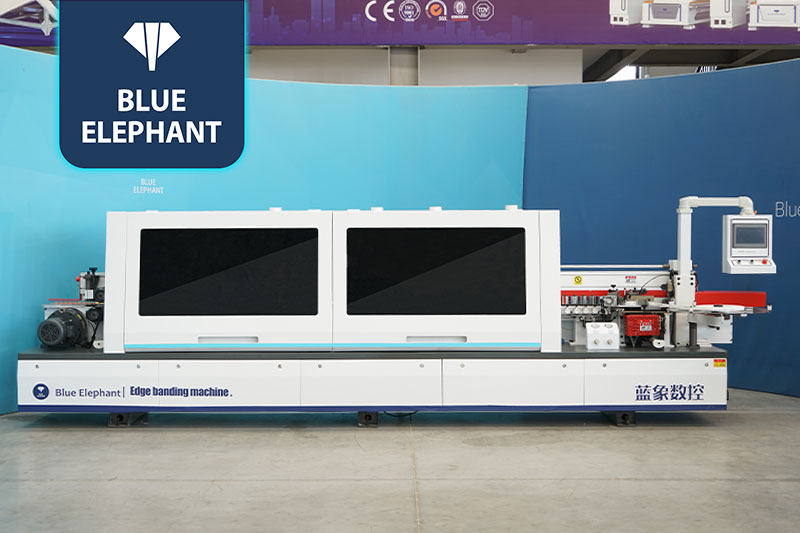

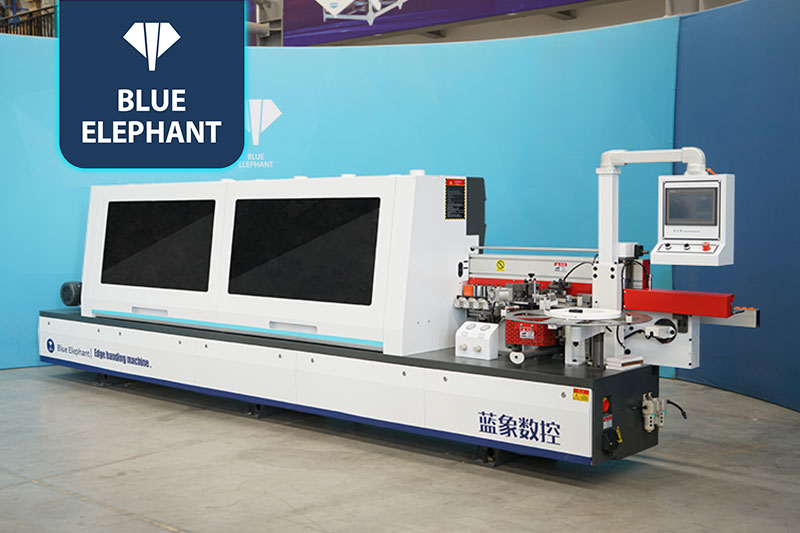

Buy Best Wood Auto Edge Banding Machine
☆This E-70A baler can automatically and quickly realize various functions such as edge banding, end cutting, rough and fine trimming, tracking rounded corners, edge scraping, and polishing.
Edge Banding Machines Video
features
- PUR glue, has excellent heat resistance, cold resistance, water vapor resistance, chemical resistance, solvent resistance, and other advantages.
- It also has an extra cleaning function that removes residual glue from the edges of the edge banding for a smoother finish.
Parameters
| Model | E-70A |
| Overall size | 5840x970x1800mm |
| Total power | 12kW |
| Feed speed | 15-23m/min |
| Electric lifting | 0.37kW |
| Panel Thickness | 10-60mm |
| Panel length | ≥120mm |
| Panel width | ≥80mm |
| Edge band thickness | 0.4-3mm |
| Working pressure | 0.6Mpa |
| Voltage | 380V, 50Hz, 3PH Optional: 220V 3PH; 220V 1PH |
Application
The edge banding machine is mainly used for edge banding of various panel furniture. Such as wardrobes, shelves, custom furniture, office furniture, tables, doors, cabinets, and other wood products.
