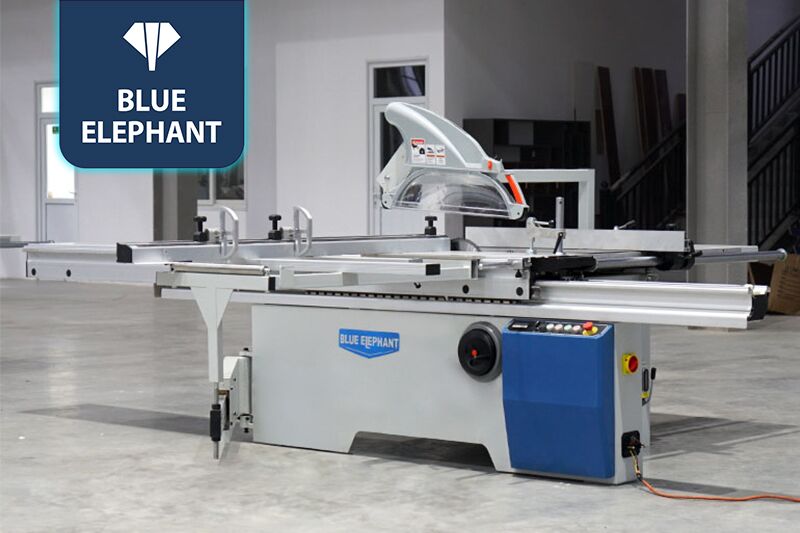

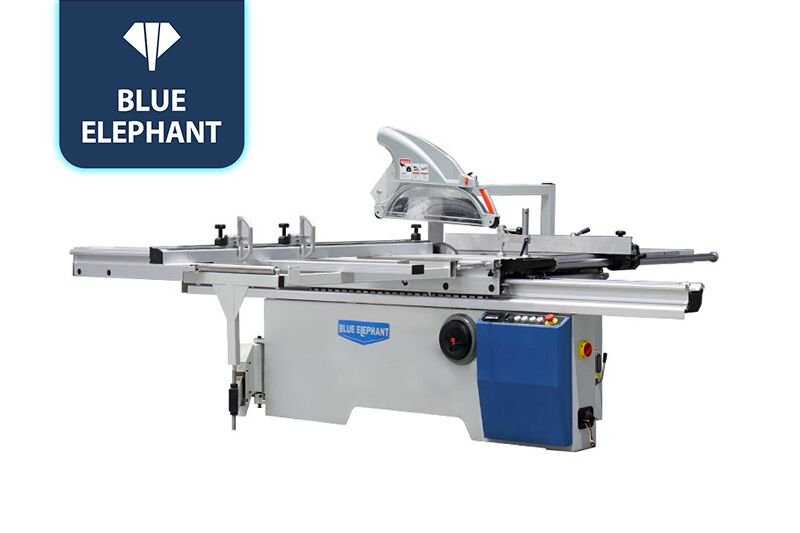

Purchase Best Sliding Table Saw for Sale

☆This panel saw is mainly used in woodworking industry or furniture manufacturing industry. It can realize longitudinal sectioning, cross-section, or angled sawing of plywood, particleboard, fiberboard, veneer, laminated board, blackboard, spliced solid wood board, plastic board, etc.

Panel Saw Machines Video

Features

  • It has the advantages of stable frame, fine manufacturing, beautiful and durable coating, etc.
  • The machine key kits are all from world famous and international brands.
  • It is precise, reliable, flexible, durable,and easy to maintain.

Parameters

Dimensions 3200*2540*900mm
Sliding table size 3200*375mm
Sawtooth length 3000mm
Sawtooth width 1200mm
Sawtooth thickness 78mm
Main saw diameter 300mm
Scribing saw diameter 120mm
Main saw speed 4000/6000rpm
Scribing saw speed 7000rpm
Spindle diameter 30mm
Counter spindle diameter 20mm
Main motor power 5.5kw
Counter motor power 0.75kw
Saw blade angle 0-45°
Net weight 700/800kg

Application

The sliding table saw or panel saw is mainly used to cut wooden boards in the woodworking industry.It can cut various types of wood materials, like hardwood, softwood, MDF, particle boards, melamine boards, plywood, etc. Besides cutting, it can also make straight and inclined slots on the wooden boards by adjusting the angle of the saw blade.

panel-saw-samples-1_1642753240
panel-saw-samples-2_1642753303
panel-saw-samples-3_1642753324
panel-saw-samples-4_1642753338
