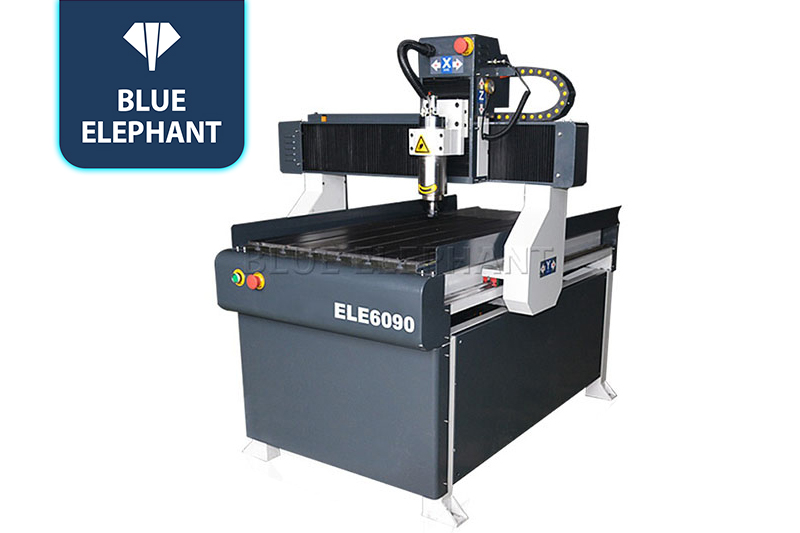

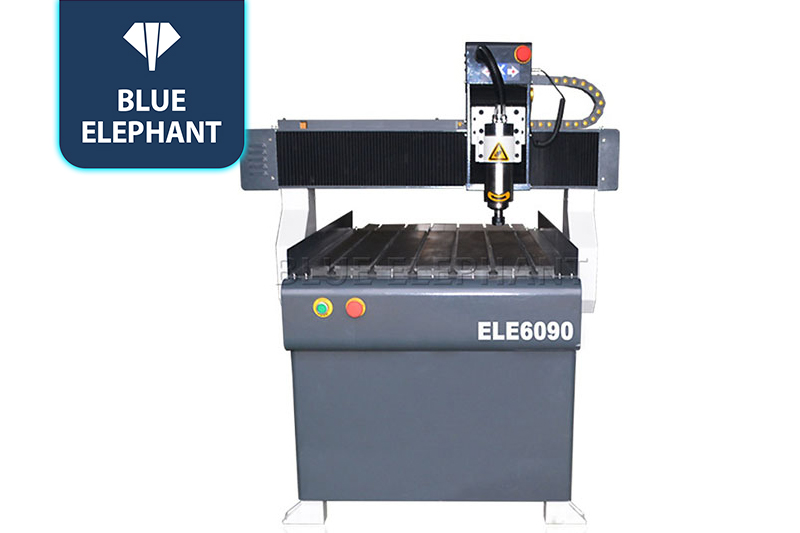

Desktop Aluminum Mini CNC Engraving Machine for Sale
☆The effective working area is 600*900mm. And the whole machine is welded by seamless steel and cast iron structure, which is not easy to deform. Ideal for small businesses or engraving enthusiasts.
CNC Router Machines Video
features
- The integral cast iron frame makes the machine more durable and has a long service life.

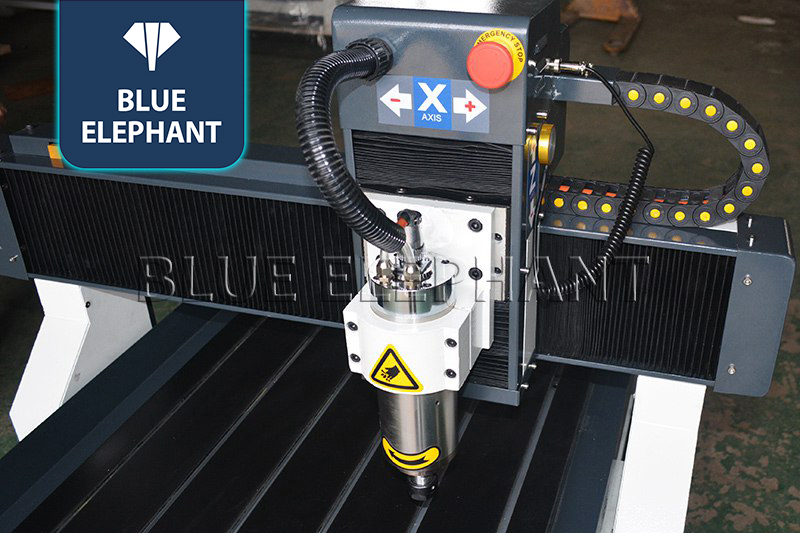

- Equipped with water-cooled spindle, high precision, low noise and good cooling effect.

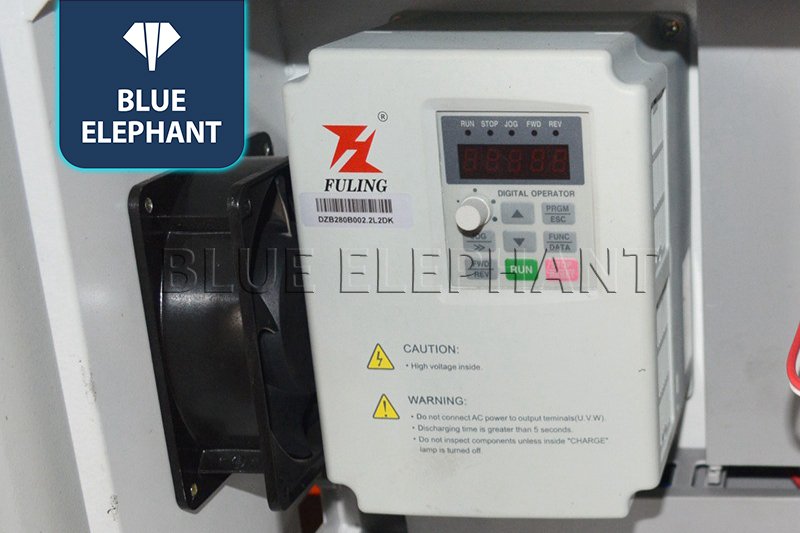

- Adopt Fuling frequency converter which is more stable and convenient to operate.
Parameters
| Descriptions | Parameters |
| Modle | ELE6090 |
| Working area | 600*900*160mm |
| Control system | Mach3 control system |
| Spindle | 2.2kw Changsheng water cooling spindle |
| Spindle speed | 0-24000rpm/min |
| Motor | 450A stepper motor |
| Driver | Leadshine M542 driver |
| Transmission | X,Y,Z all axis Taiwan TBI ball screw
Taiwan HIWIN linear square rail #20 |
| Traveling speed | 15m/min |
| Working speed | 12m/min |
| Inverter | 2.2kw Fuling Inverter |
| Table surface | T-slot working table with PVC protection |
| Tool sensor calibration | Simple tool sensor calibration |
| Gantry structure | Cast steel gantry |
| Working voltage | 220V, 1phase, 50Hz |
Application
Wood: mahogany classical and antique furniture, wood carving, gift wooden box carving, mahogany jewelry box, inkstone cutting, etc.;
Letter cutting, logo engraving: all models are made. Such as company license, architectural model, emblem, exhibition board, exhibition logo, decorative logo, furniture, etc.
