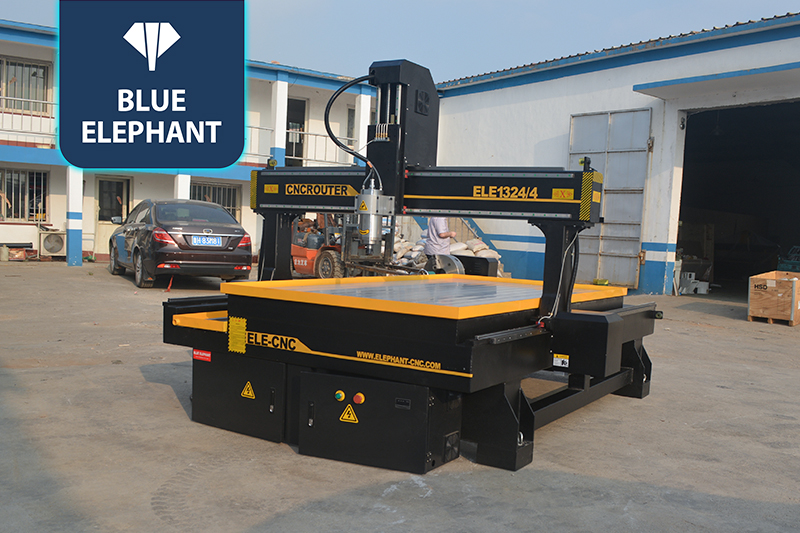

Best Rotary Axis 1324 Stone CNC Router Machine for Price

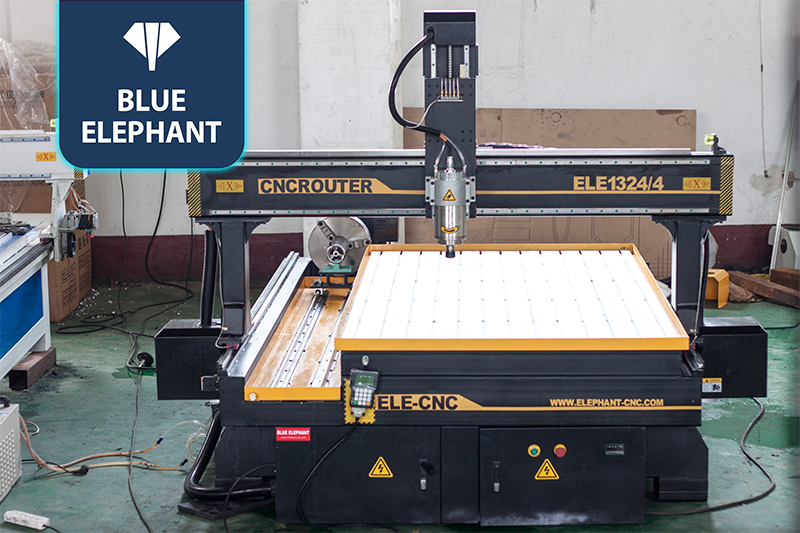

☆This is one of the typical stone CNC routers. An extra swivel is designed on the side of the machine, perfect for making cylinder projects. It is the first choice for customers who need cylindrical processing
Stone Engraving Machines Video
Features
- Heavy-duty machine structure ensures higher stability during stone carving.
- DSP B18 4-axis control system is an upgraded controller specially designed for 4-axis CNC machine tools, which can ensure good machining accuracy.
Parameters
| Model | ELECNC1324 with rotary device |
| X,Y axis travel | 1300x2400mm, option: 1300*2500mm; 1500*3000mm; 2100*3000mm, etc |
| Z axis travel | 400mm, option: 200mm, 300mm, 500mm, 600mm, etc |

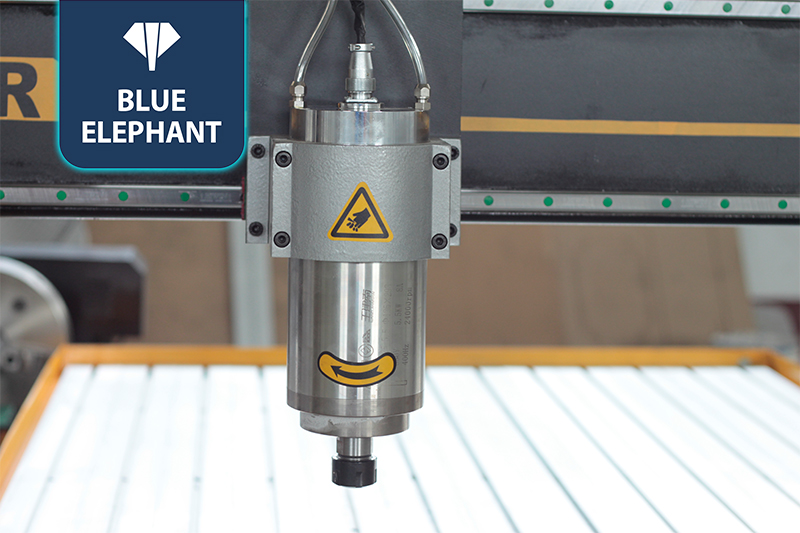

| Spindle type | 5.5kw water cooling spindle, ER25 |
| Inverter type | 5.5KW Delta inverter series B |
| Control system | DSP B18 4axis control system |
| Driving system | 850ww Japan Yaskawa servo motors and drivers Option: 1.5kw Leadshine servo |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot work table with PVC protection |
| Linear guide | Taiwan linear guide, 25# |
| Transmission | Taiwan TBI ball screw 2510 |
| Lubrication system | 1.5L automatic lubrication system |
| Tool Calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Aspireetc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
The stone engraving machine is mainly designed to handle stone work such as line carving, 2D plane carving, 3D relief, shadow carving, cutting, and drilling. It can process marble, granite, jade, crystal, tombstone, agate, ceramics, glass, plastic, chemical fiber board, bamboo, wood, curved surface, spherical surface, stainless steel, iron, copper, aluminum, titanium alloy and other materials.
