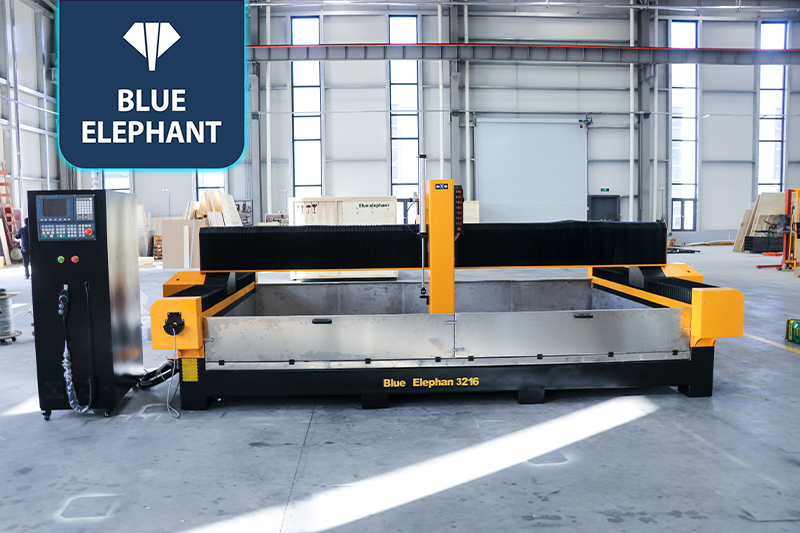

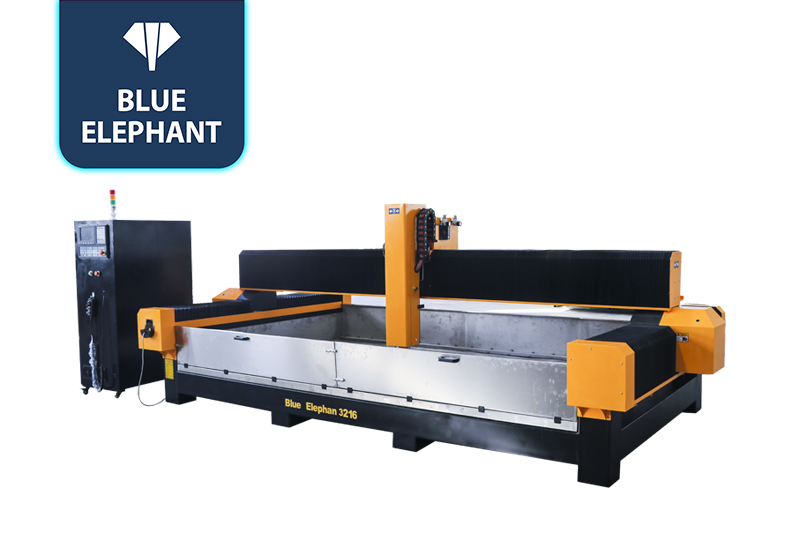

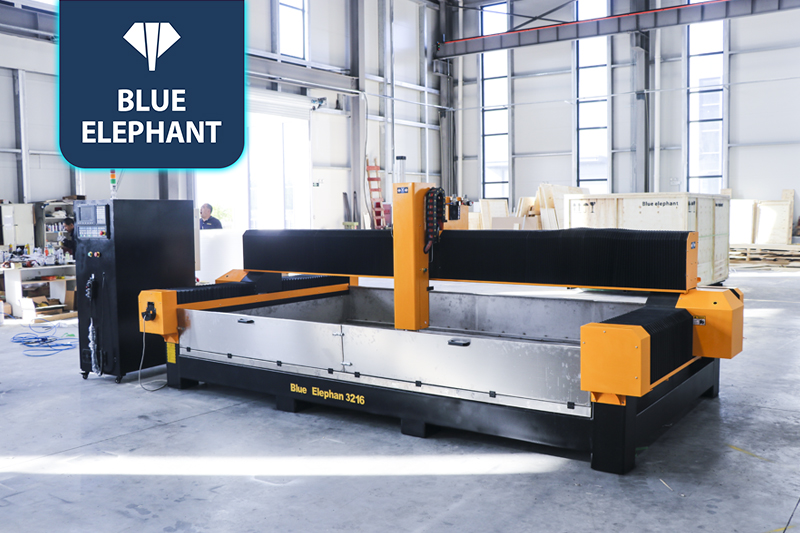

Large Custom 3016 ATC Stone CNC Milling Machine Prices in Australia and Canada
☆This is a specially designed stone CNC machine tool with an extra large workbench. Suitable for large manufacturing plants and customers requiring large volumes.
Stone Engraving Machines Video
features

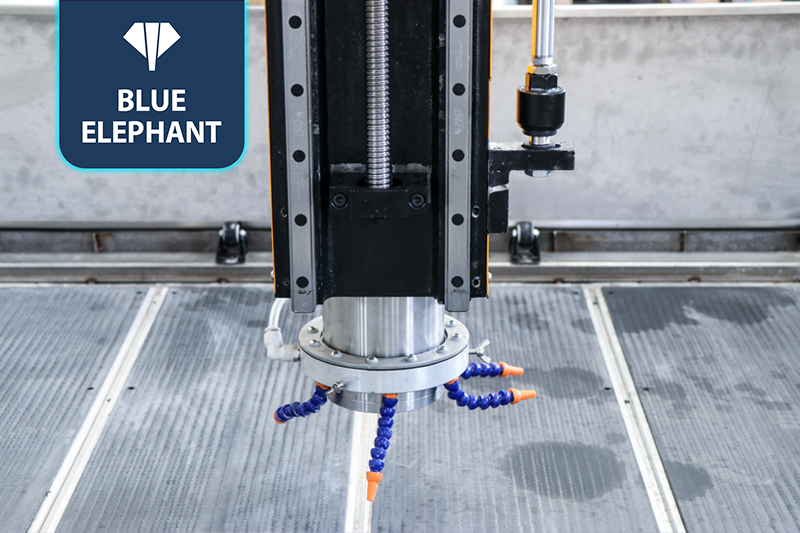

- Equipped with HQD water-cooled spindle to reduce noise.
- Manufactured with Japanese Yaswaka servo motor and SHIMPO reducer, the machine is more stable and has a longer service life.
- The 7.5kw Fuling inverter has stable performance, rich combination functions and super overload capacity.
Parameters
| Items | Parameter |
| Working area | 3200*1600mm*400mm |
| Whole machine size | 600*900*160mm (optional) |
| Spindle | 7.5KW water cooling ATC spindle |
| Working table | T-slot working table with water flume |
| Motor and drive | 1000W Japan YASKAWA servo |
| Control system | Taiwan SYNTEC 6MB controller |
| Inverter | 7.5KW Fuling inverter |
| Lubrication system | Auto oil lubrication system |
| Reducer | Japan shimpo reducer |
| Cooling system | Water spraying cooling system |
Features
- Heavy-duty machine structure ensures higher stability during stone carving.
- The automatic lubrication system can save labor, improve work efficiency and prolong the service life of lubricated parts.
- The accessories of the stone machine are all internationally renowned brands, which guarantee the machine’s long service life to the greatest extent, and have always been an ideal choice for the stone processing industry.
Application
Stone CNC engraving machine is mainly designed for line carving, 2D plane carving, 3D relief, shadow carving and other stone processing. It can process marble, granite, crystal, tombstone, agate, ceramics, plastic and other materials. Widely used in processing marble and granite kitchen countertops, bathroom countertops, wash basins, tables, floor drains and other bathroom industries.
