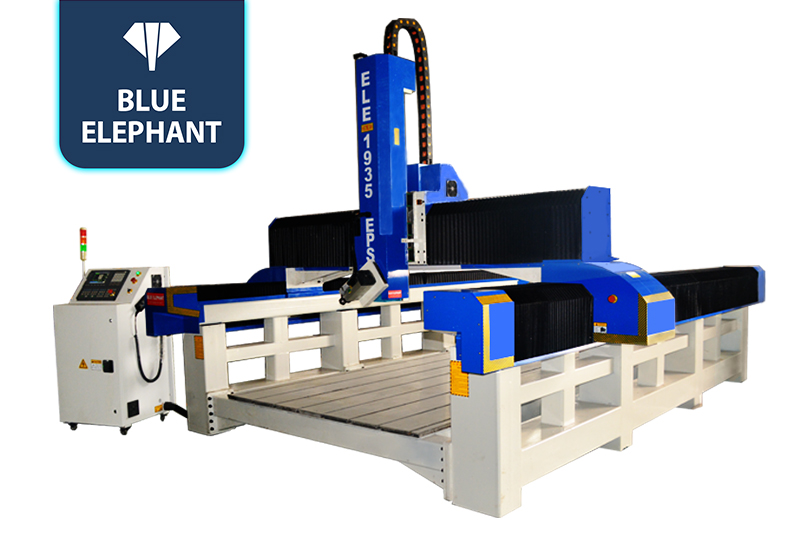

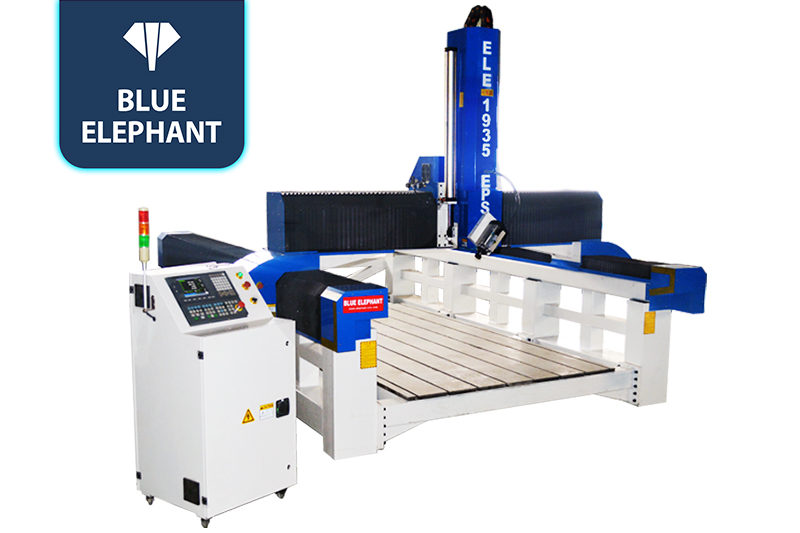

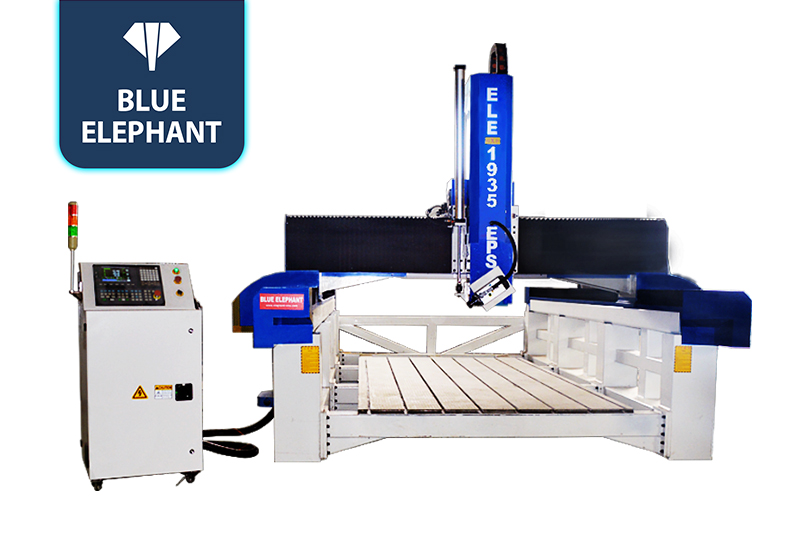

EPS Styrofoam 4 Axis C and C Router Prices

☆With the design of linear tool change tool magazine, various tools can be automatically replaced during the engraving process to improve processing efficiency.

CNC Router Machines Video

features

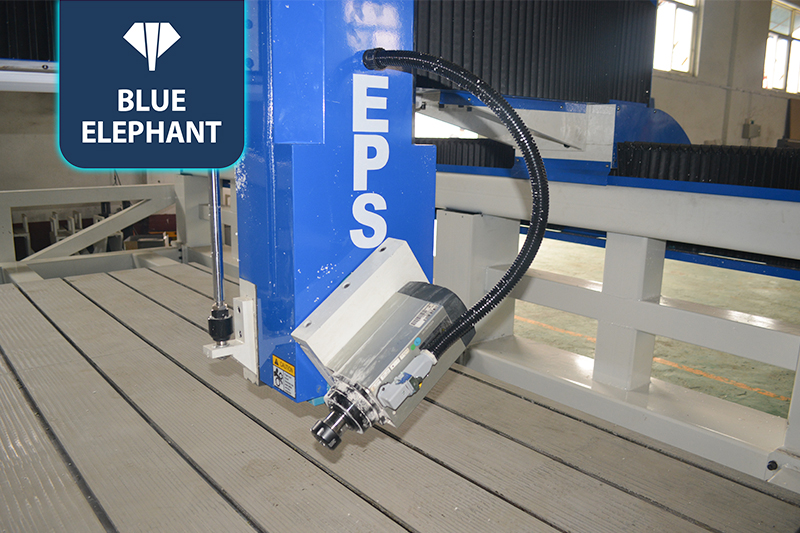

  • The spindle can swing 180 degrees for 3D processing and complex processing.
  • The design of the linear tool change magazine improves work efficiency and saves labor.
  • The entire working size can also be customized.

Parameters

Description Parameter
X,Y,Z Working Area 1900x3500x800 mm*±100°
Effective working area 2860x3500x1450 mm
X,Y,Z Traveling Positioning Accuracy ±0.01/300mm
X,Y,Z Repositioning Accuracy: ±0.01mm
Table Surface T-slot Table
Frame Divided structure bed structure,Fixing with screws
X,Y Structure Helical rack gear , 4pcs HIWIN #35 Linear guide
Z Structure TBI ball screw,4 pcs slider
Max. Power Consumption (Without Spindle)6Kw
Max. Rapid Travel Rate 40000mm/min
Max. Working Speed 30000mm/min
Spindle Power HSD spindle 4.5kw
Spindle Speed 0-18000RPM
Drive Motors Japan 850W YASKAWA servo
Working Voltage AC380V/50/60Hz,3PH (Option: 220V))
Command Language G Code
Operating System SYNTEC Control System 6MB
Computer Interface USB
Flash Memory 512M
Collet ER30
X,Y Resolution <0.01mm
Software Compatibility UG , Power mill
Running Environment Temperature 0 – 45 Centigrade
Relative Humidity 30% – 75%

Application

Mold industry: It can be used in the precision production of various cast wood molds, and can also be used in the research and development and production of automotive interior and exhibition decoration materials.
Casting and sculpture industry: processing and engraving of various casting craft products, exhibition decoration materials, and GRG decoration materials. Building decoration industry: processing and production of building decoration materials such as GRG and GRC.
