The Best 1530 ATC Woodworking Machines for Low Prices

☆This model adopts linear automatic tool change, with fast tool change speed, 8 tools are automatically changed, and the processing efficiency is higher.

Get Details & Prices

ATC CNC Router Machines Video

Get More Videos

Features

In order to meet the long-term high-speed work, this machine adopts a generous tube heavy-duty bed.
The control system adopts NK system with MPG, which is easy to learn, simple to operate, high in efficiency, and fast in speed.
In order to improve the machining accuracy, the Japanese Yaskawa motor and driver are used.

Parameters

Serial Number	S20190822Y
Model	ELECNC-1530 ATC
Working area	15003000mm200mm
Spindle	5KW Changsheng water cooling ATC spindle
Inverter	5kw Fuling inverter

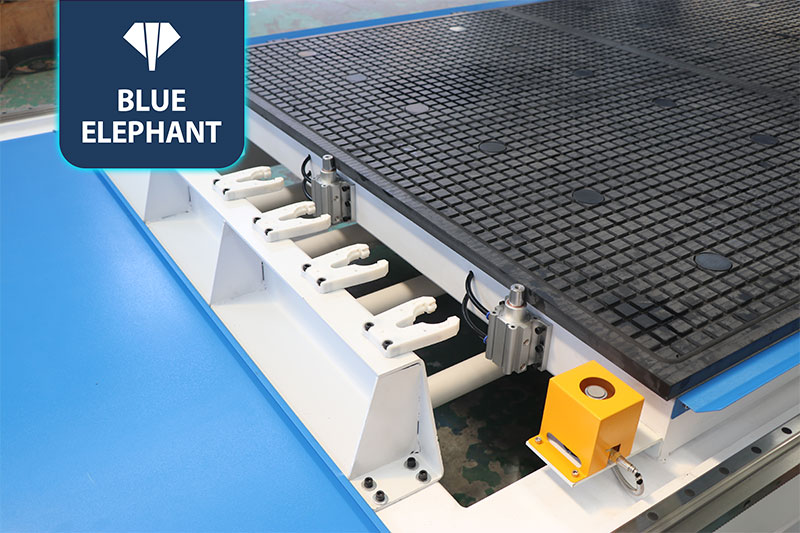

Tool magazine	Liner 8pcs tool magazines
Control system	NK260 PC- Panel controller with MPG
Motor and driver	1000W Japan YASKAWA servo motor and driver
Working Table	Total vacuum table (The vacuum table carving groove width is 50mm, double vacuum holes –total 36 holes, Hole Diameter is also in 50mm
limit switch	Japan OMRON limit switch
Reducer	Japan Shimpo reducer

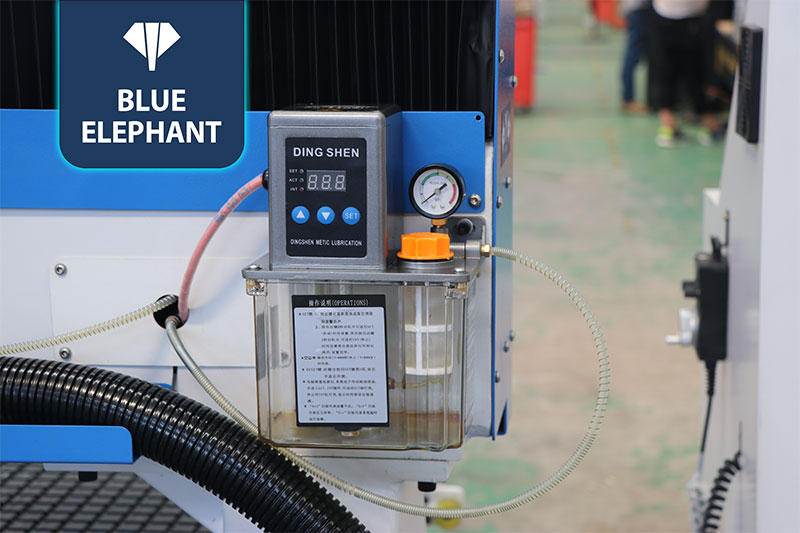

Lubrication system	Automatic lubrication
Frame structure	More heavy duty machine body (tube caliber size of 100mm, Steel thickness of 5mm added the beam and total eight legs )
Voltage	220v 3 phase 60HZ(optional)
Tool sensor	Auto Tool sensor calibration
Software Compatibility	Artcam 2012 software

Get More Parameters

Application

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
