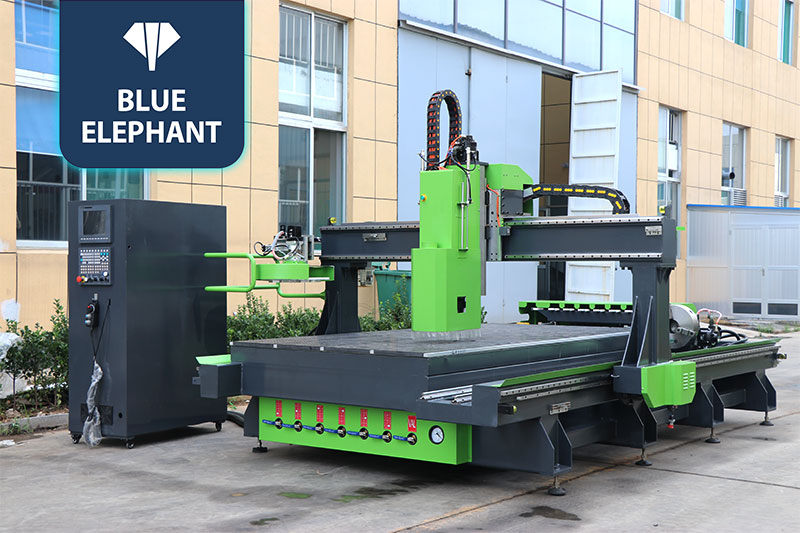

Custom 4 Axis Rotary CNC Router With Double Tool Changer, Exported to Australia and Canada
☆This custom rotary axis woodworking CNC router with two tool magazines can meet the customer’s needs for quick tool changes. Thanks to the swivel unit, the machine can perform more complex work on panels and cylindrical workpieces.
Rotary Axis CNC Router Machines Video
Features
- The CNC milling machine is equipped with 12 linear tool magazines and 12 disc tool magazines, which can realize fast tool change and complex process cutting.

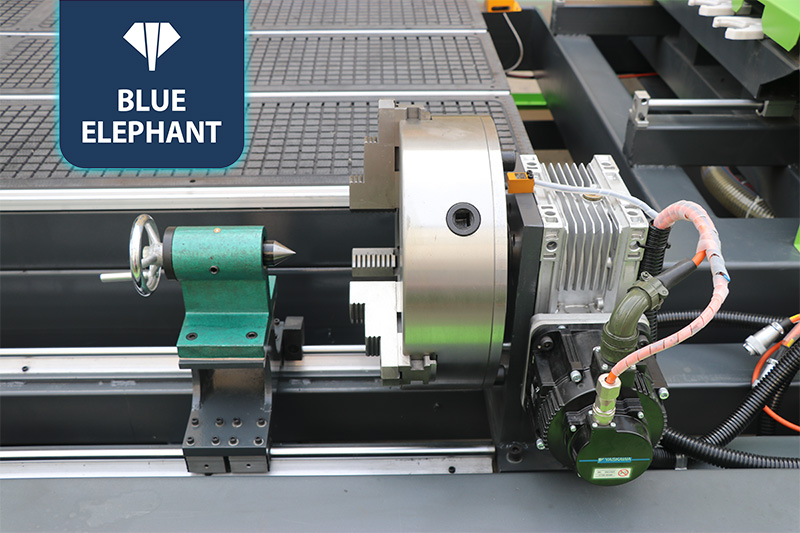

- The addition of a rotary axis can be used to engrave cylindrical parts, such as furniture legs, architectural columns, columns, etc.
- The vacuum table has strong adsorption capacity, which prevents the panel from sliding or moving during operation.
Parameters
| Serial Number | S20191024Z |

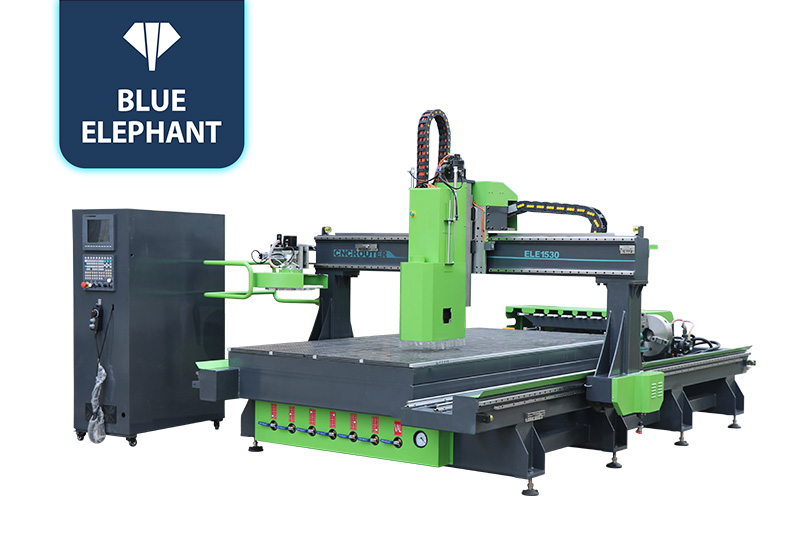

| Model | ELECNC-1530 4 axis |
| Working area | 1500x3000x400mm |
| Spindle | Italy Original 9.0KW HSD ATC Spindle |
| Inverter | Taiwan DELTA 11.0kw Inverter |
| Tool magazine | 12pcs carousel ATC+12pcs HSK-63F tool holders |
| Control system | Taiwan SYNTEC11MB Control System |
| Motor and driver | 850w Japan Yaskawa servo motors and 1000w drivers |
| Switch | France Schneider safety switch |
| Working Table | Vacuum Table with t slot |
| limit switch | Japan OMRON Limit Switch |
| Lubrication system | Automatic oil lubrication system |
| Voltage | 380V, 3Phase, 50HZ |
| Vacuum pump | German Becker KVT3.140 4.0KW vacuum pump |
| X,Y,Z Rail | 25mm Sweden ABBA Linear rails |
| Dust collector | 1.5kw Europe CE Standard double bags dust collector |
| Tool sensor | Automatic tool sensor system |
| Software Compatibility | ARTCAM Software |
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
