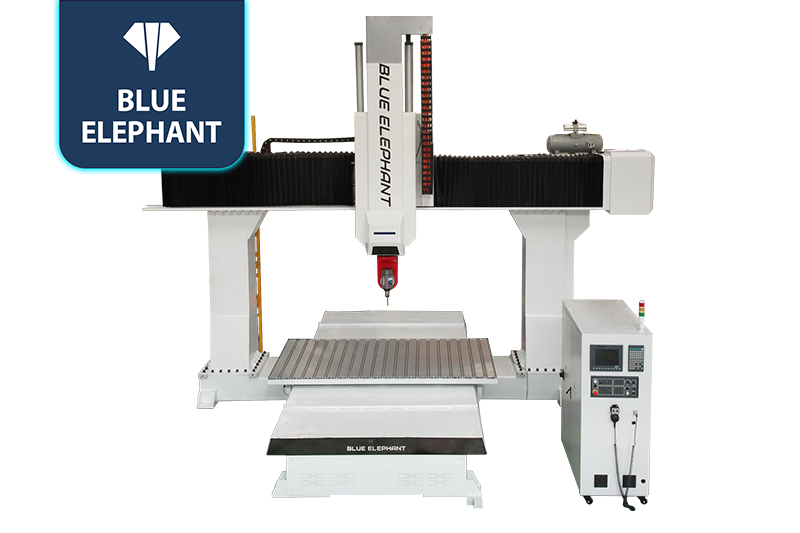

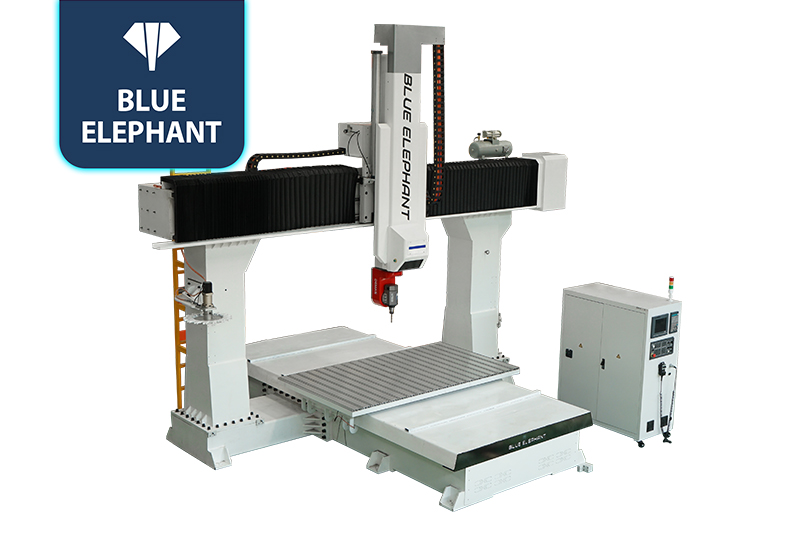

Purchase the Latest 5 Axis CNC Router for Sale
☆It has the advantages of good rigidity, good stability, high precision, simple operation, convenient use, and powerful functions. Specifically designed for engraving complex or 3D workpieces.
CNC Router Machines Video
FEATURES
- It adopts a movable workbench, which is easy to use and operate.
- Simple and powerful 5-axis controller.
- Machine components are all internationally renowned brands.
Parameters
| Item | Description | |
| Model | ELE-2513 5 axis CNC router | |
| Movement type | Movable table | |
| X working area (MM) | 2500 | |
| Y working area (MM) | 1300 | |
| Z working area (MM) | 900 | |
| C travelling | ±213° | |
| A travelling | ±120° | |
| Beam spacing(MM) | 4260 | |
| Beam Height(MM) | 2150 | |
| Vacuum pump | Germany Becker pump | |
| Supplier for Double pendulum head | 10.0 KW Italian HSD | |
| Range of speeds | 22000 RPM/min | |
| Servo Motor brand | YASKAVA | |
| Table size (MM) | 1300*2500 | |
| Product fixed form | Vacuum table | |
| Tool magazine | 16 positions Carousel Tool Storage | |
| Control system | OSAI | |
| Machine size | 3600*4000*3500mm | |
| Total weight | 12T | |
| Total Power(kw) | 24KW | |
| Voltage | AC380V/60HZ | |
| Maximum lifting weights | 20T | |
| File exchange | G code | |
| Maximum speed | X Axis | 45m/min |
| Y Axis | 45m/min | |
Application

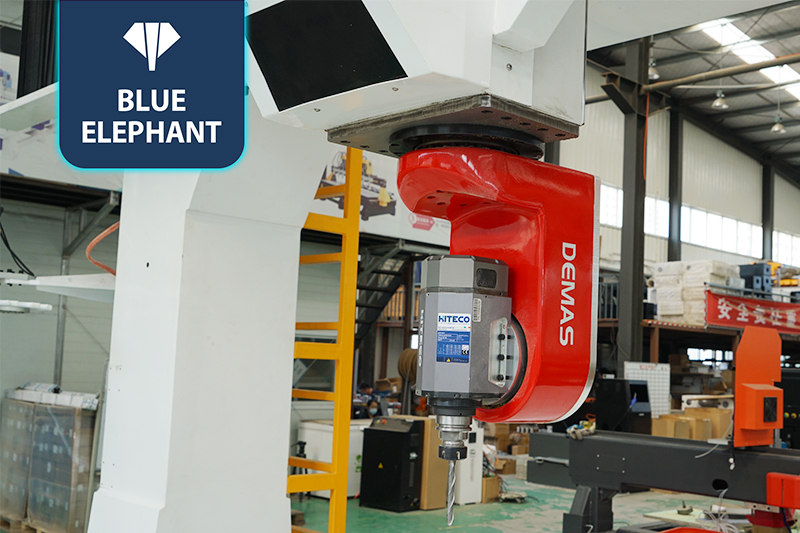

A 5-axis CNC router has an oscillating spindle. The direction can be changed automatically without stopping the machine during processing. Five-axis CNC routing and milling machines are widely used in furniture, advertising, molds, decoration, construction, and other fields and industries. In terms of functionality, it can cut, engrave, drill, mill and groove. In terms of materials, the 5-axis router can process a variety of woods, plastics, stones, soft metals, and composites.
