4th Axis CNC Mill for Cylindrical Engraving
☆This is the best selling rotary axis CNC router. The rotary device with it has multiple functions and can perform complex process operations.
Rotary Axis CNC Router Machines Video
Features
- Equipped with a 6kW air-cooled spindle, this CNC machine can quickly complete powerful cutting and engraving jobs.
- A DSP control system that is easier for beginners to use is used.
Parameters
| Serial Number | S20191126L |
| Model | ELECNC-1530 |
| Working area | 1500*3000*300mm |
| Spindle | 6kw Italy HSD air cooling spindle |
| Inverter | 7.5kw Taiwan Delta inverter |
| Control system | DSP B18 control system |
| Motor and driver | 750w Japan Yaskawa servo motor and driver |
| Working Table | T-slot & vacuum working table |
| Voltage | 380v, 3ph, 50hz |
| Vacuum pump | 7.5kw water circulation vacuum pump |
| X,Y,Z Transmission | Helical rack gears transmission on X,Y axis
Taiwan TBI ball screw transmission on Z axis |
| X,Y,Z Rail | Taiwan linear guide rails for X,Y,Z axis |
| Dust collector | 1.5kw new type double bag dust collector |
| Software Compatibility | Artcam software |
Application

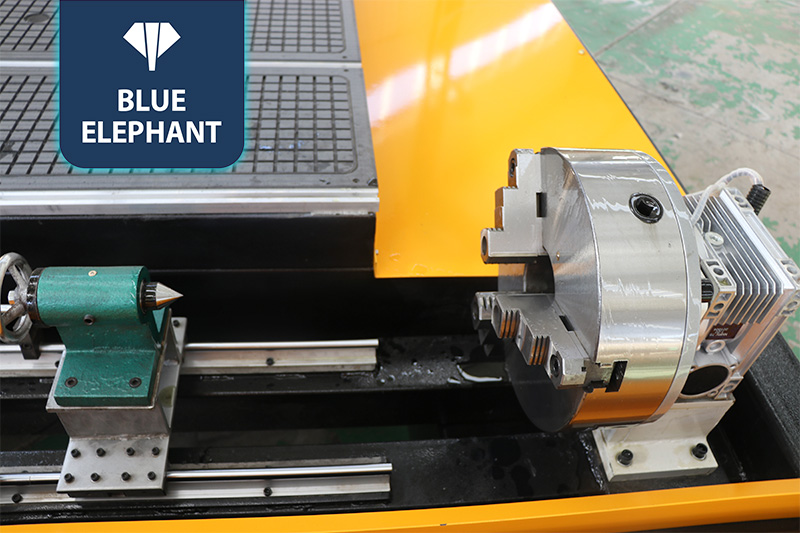

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
