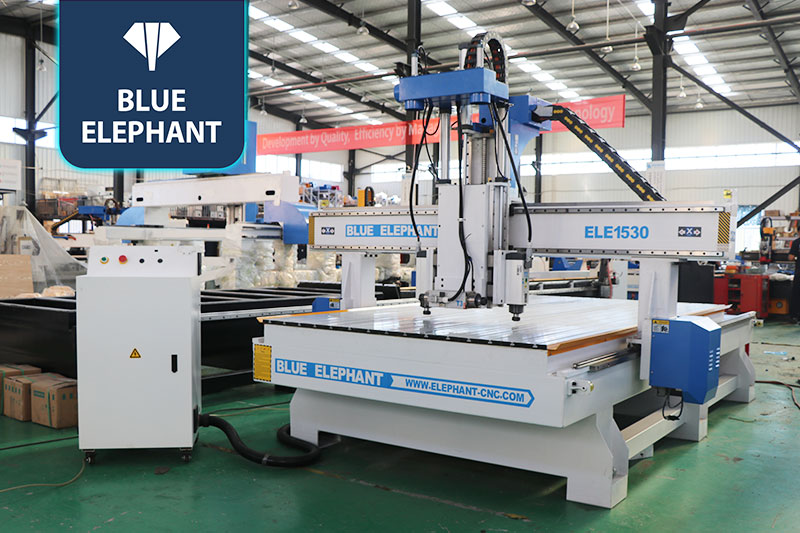

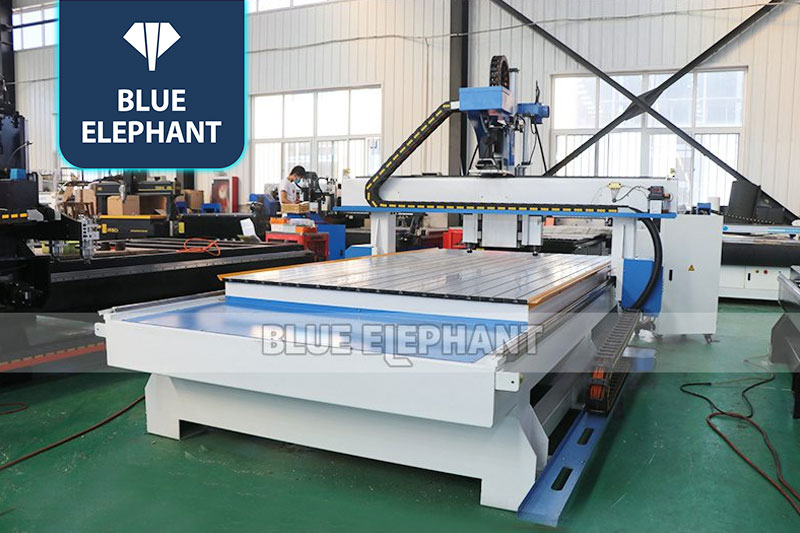

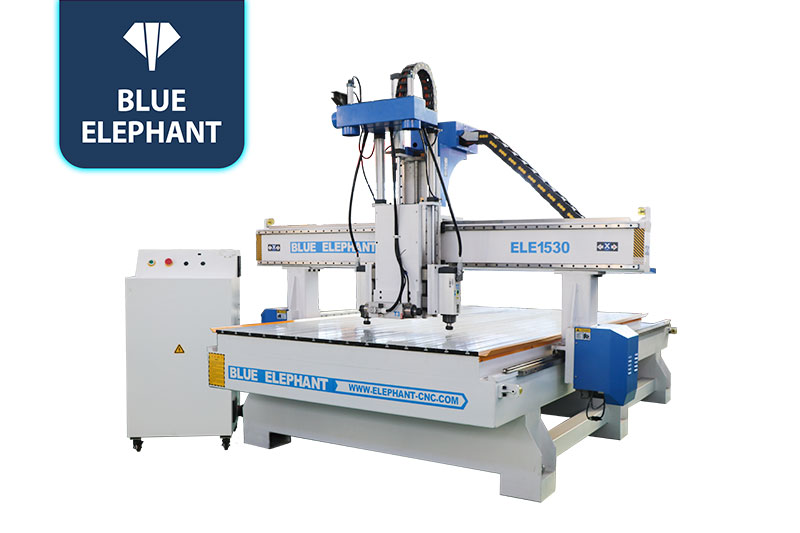

1530 Three Heads CNC Machinery for Sale at Affordable Price in UAE, Middle East
☆It is the most economical multi-axis wood cnc router. And the number of spindles can be customized according to customer’s preferences and needs.
CNC Router Machines Video
features
- The machine is manufactured with Leadshine servo motor and driver to ensure the high stability of the machine.

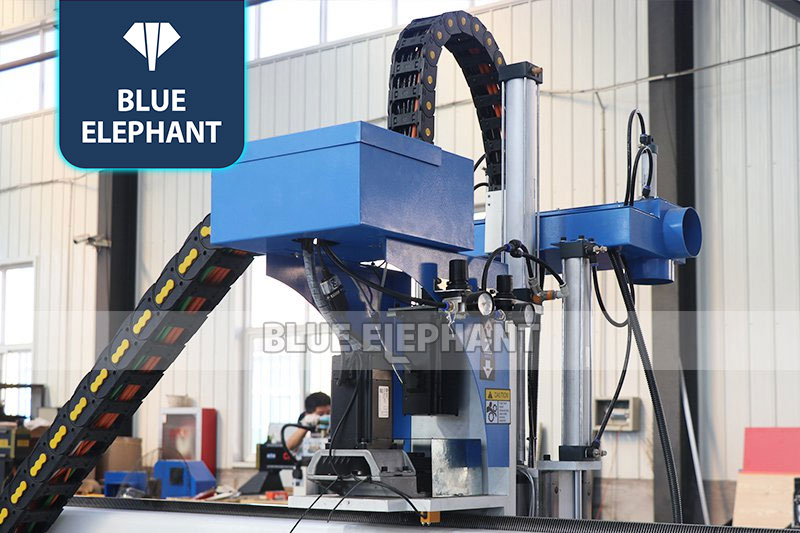

- Equipped with two HSD air-cooled spindles and one Changsheng spindle, they can work independently, improving work efficiency and saving time.
- The 3kw double-bag dust collector is more suitable for places with poor working environment, which can well protect the machine from damage.
Parameters
| Description | Parameter |
| Model | ELECNC-1530-3S |
| X,Y,Z Working Area | 1500*3000*200mm |
| Control system | DSPA15 control system |
| Working Voltage | 380V 3phase, 50Hz(Option) |
| Spindle | 3kw Italy HSD Air Cooling Spindle*23.5kw Changsheng double head, Horizontal installed |
| Inverter | 3.7kw DELTA inverter |
| Motor and driver | 750W leadshine Servo Motor & driver |
| Table Surface | T-slot & vacuum working Table |
| Table structure | New type thicker and bigger heavy duty welded frame and gantry |
| X, Y, Z Transmission | Helical rack on X,Y axis and Taiwan TBI ball screw on Z axis |
| X,Y, Z Rail | ABBA/PMI 25# linear guide |
| Lubrication system | Automatic lubrication system |
| Dust Collector | Classic type double bags dust collector 3.0kw |
| Wire | High Soft Shjeld with Copper Wire to Protect Against Static Electricity |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands.
Decoration industry: door frames, photo frames, mirror frames, screens, holiday decorations, carved photos.
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names.
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers.
