4×8 Woodworking Router Selling Overseas at Favorable Prices

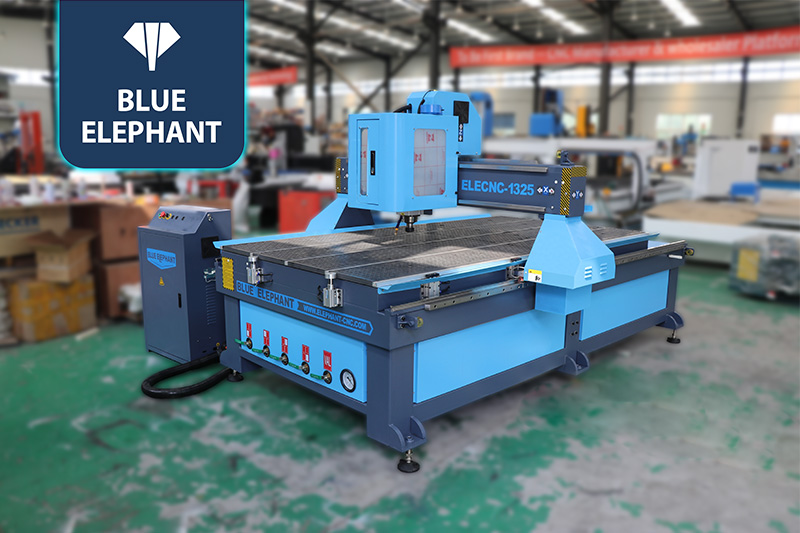

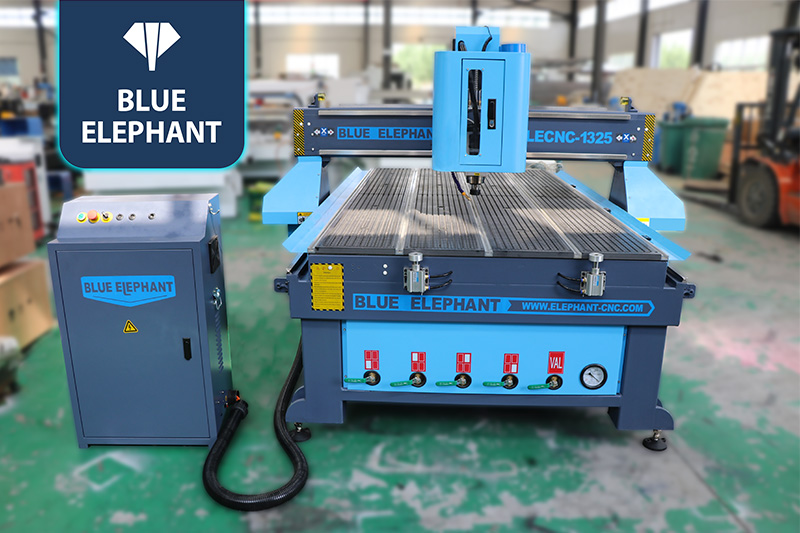

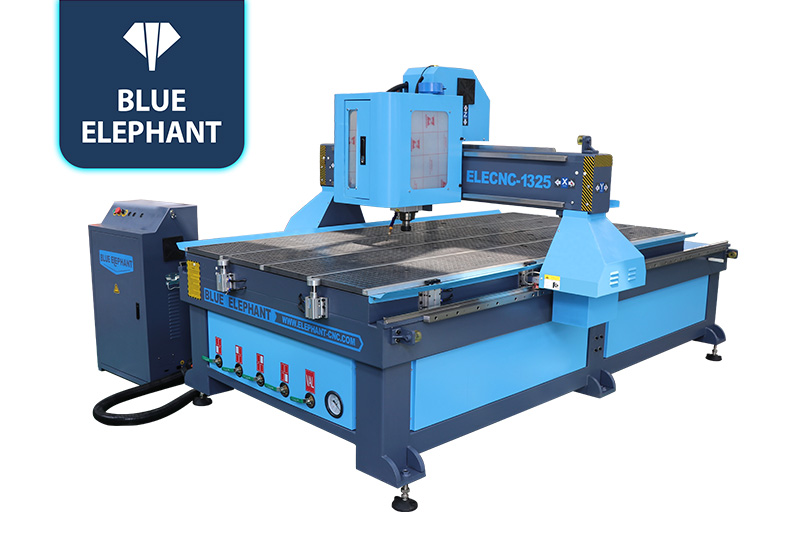

☆This classic three-axis CNC woodworking router is specially designed for woodworking companies that need to process a large number of wood boards, and has received rave reviews from customers.
CNC Router Machines Video
features

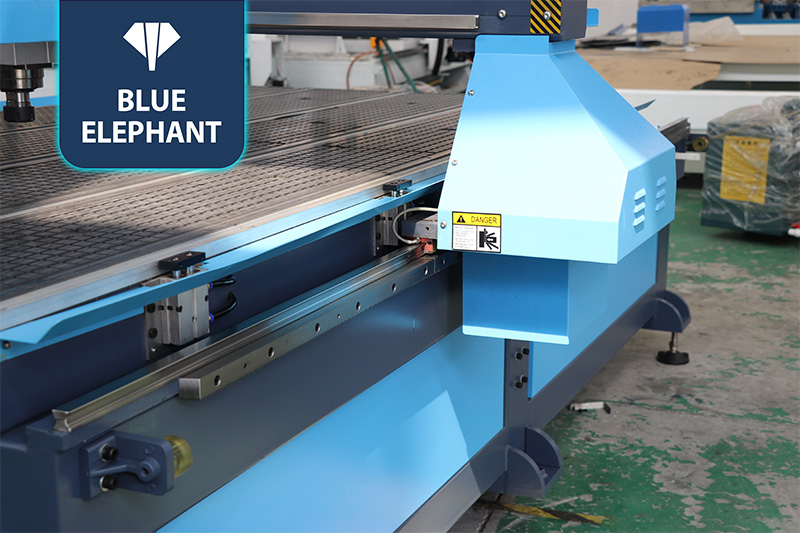

- The main shaft with a protective cover can effectively prevent dust and effectively extend the service life of the machine.
- Equipped with a positioning cylinder, it can quickly position and save working time.
Parameters
| Serial Number | S20190826L |
| Model | ELECNC-1325 |
| Working area | 1300*2500*200mm |
| Spindle | 4.5kw HQD air cooling spindle |
| Inverter | 5.5kw Fuling inverter |
| Control system | DSP A11 control system |
| Motor and driver | Leadshine Stepper motor and driver |
| Working Table | T slot & vacuum working table |
| Vacuum pump | 5.5kw water circulation vacuum pump |
| X,Y,Z Transmission | Helical rack gears transmission on XY axis
Taiwan TBI ball screw transmission on Z axis |
| X,Y,Z Rail | Taiwan linear guide rails |
| Voltage | 380v, 3ph, 50hz(optional) |
| Dust collector | 3kw double bag dust collector |
| Software Compatibility | Artcam software |
Application
It is mainly for processing double-colored boards, solid wood, MDF, fireboard, plywood, and melamine boards. It can also process other non-metal materials, like rubber, acrylic, PVC boards, and soft metals, like aluminum sheets.Moreover, the most common purpose of the CNC wood cutting machine is to make panel furniture.
